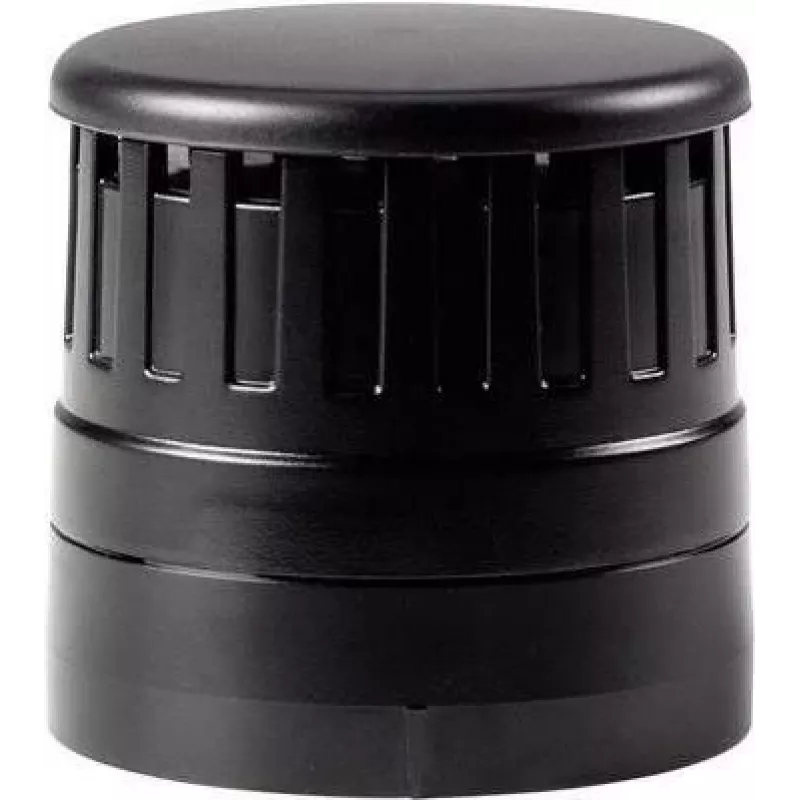

Eaton SL7-AP24-E modulo acustico per sistemi di segnalazione, 24 V AC/DC, 100 dB, IP66, nero/grigio 171284

The Eaton SL7-AP24-E acoustic annunciator module stands out in the SL7 signal tower system with its selectable continuous or pulse tone, delivering a powerful 100 dB sound output at one metre. Designed for modular integration, it provides clear audible signalling in industrial environments where reliable alerts are essential.

Highlights

• Selectable continuous or pulse tone for flexible signalling
• High sound output of 100 dB at 1 m for effective alerts
• Robust IP66 protection against dust and water jets
• Wide operating temperature range from -30 °C to +60 °C
• Modular design for easy integration into SL7 signal towers

In daily use

This module operates on 24 V AC or DC, with screw terminal connections for secure wiring. Its polycarbonate housing in black and grey ensures durability in demanding settings. The module is suitable for use in manufacturing plants, logistics centres, and other areas requiring audible status indication.

Full specifications

• Product type: Acoustic annunciator module
• Series: SL7 signal tower system
• Operating voltage: 24 V AC/DC
• Sound output: 100 dB at 1 m
• Protection rating: IP66
• Sound types: Continuous tone, pulse tone (selectable)
• Current consumption (DC): 60 mA
• Current consumption (AC): 100 mA
• Operating temperature: -30 °C to +60 °C
• Storage temperature: -40 °C to +70 °C
• Mounting type: Modular for SL7 signal towers
• Connection type: Screw terminals
• Housing material: Polycarbonate (PC)
• Colour: Black / Grey

Final note

The Eaton SL7-AP24-E combines high acoustic output with rugged construction, making it a reliable choice for industrial signalling applications.
