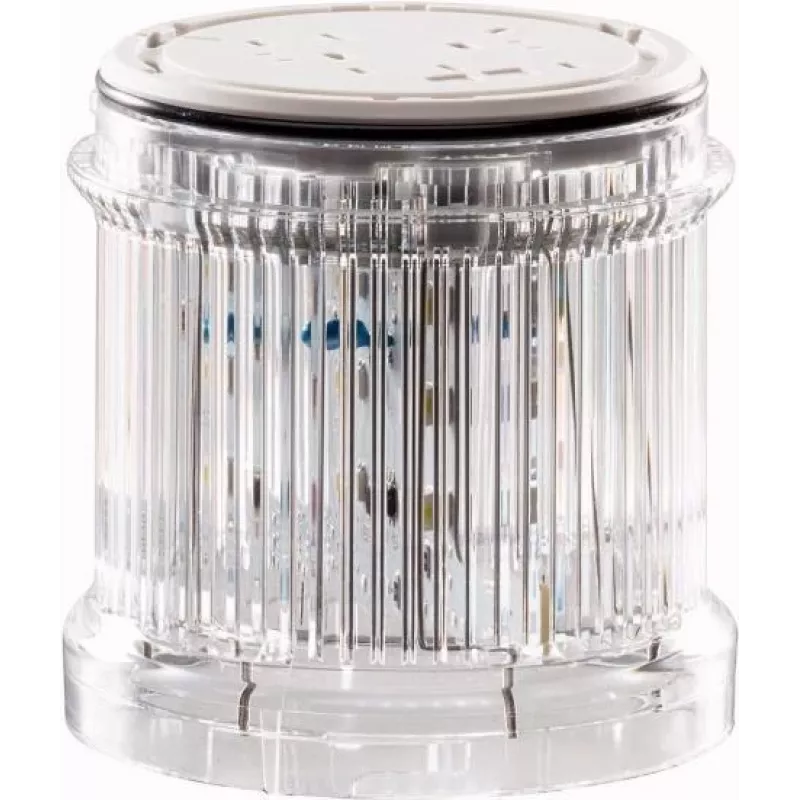

Eaton SL7-L24-W elemento luminoso per torre di segnalazione, chiaro, 24V AC/DC 171464

The Eaton SL7-L24-W is a high-performance LED signal tower light element with a transparent lens, delivering bright, reliable indication for industrial automation. Operating on 24V AC/DC with a low current draw of just 40mA, it ensures energy-efficient operation. Its robust polycarbonate housing and lens provide exceptional durability, with an IP66/IP69K protection rating that withstands harsh washdown environments and dust ingress. Designed for use with Eaton SL7 signal towers, this element features a bayonet fitting for quick and secure installation.

Overview

The SL7 series from Eaton is engineered for demanding industrial applications where clear visual signaling is critical. This light element offers a long service life exceeding 100,000 hours, reducing maintenance and replacement costs. It operates reliably in temperatures from -30°C to +60°C, making it suitable for a wide range of environments, from cold storage to hot manufacturing areas.

What stands out

• Transparent LED lens for maximum light output
• Low power consumption: 40mA at 24V AC/DC
• High protection ratings: IP66 and IP69K
• Long life expectancy: over 100,000 hours
• Quick bayonet mounting for easy installation
• Wide operating temperature range: -30°C to +60°C

Technical details

• Light type: LED continuous light
• Light colour: Transparent (clear)
• Operating voltage: 24V AC/DC
• Current consumption: 40mA
• Connection type: Screw terminal
• Mounting type: Bayonet fitting
• Housing material: Polycarbonate (PC)
• Lens material: Polycarbonate (PC)
• Diameter: 70mm
• Storage temperature: -40°C to +70°C

Our verdict

The Eaton SL7-L24-W combines durability, efficiency, and ease of use, making it an excellent choice for industrial signaling applications that demand reliability in harsh conditions.
