Supporto a parete Tripp Lite DWM1327SE per TV da 13 a 27 pollici 15 kg

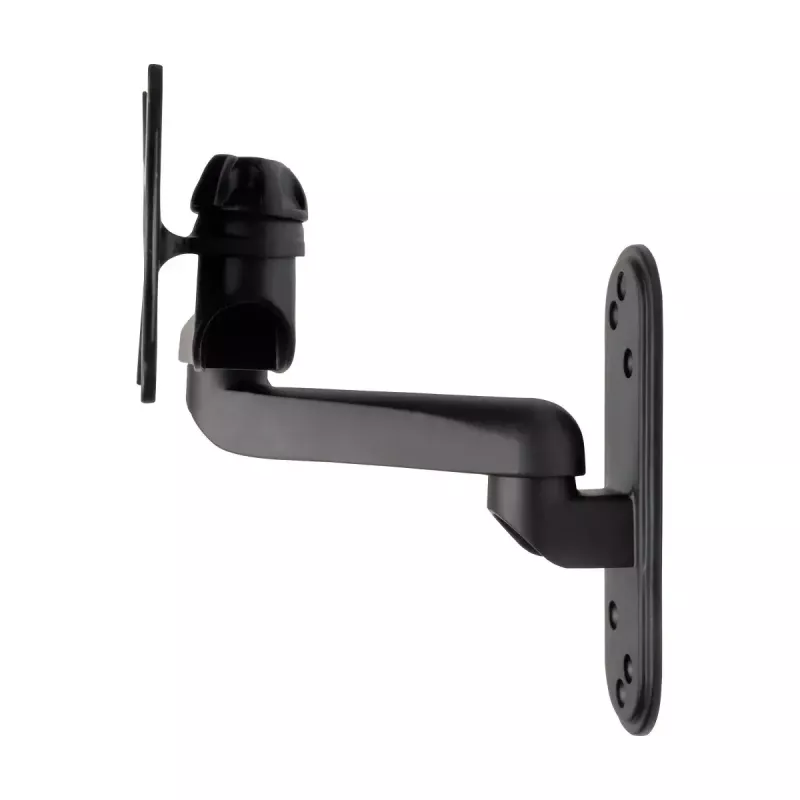

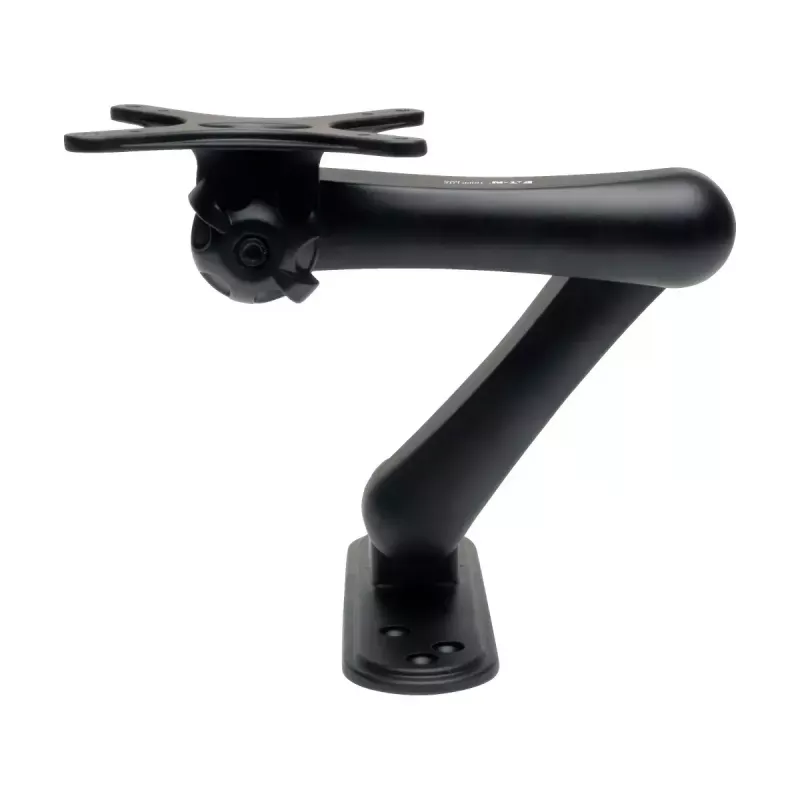

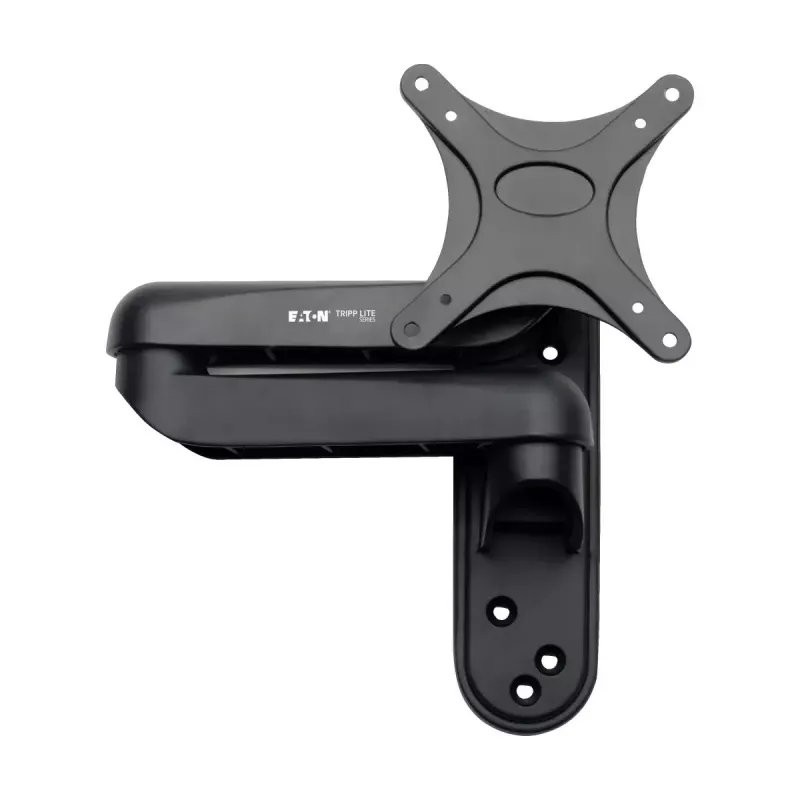

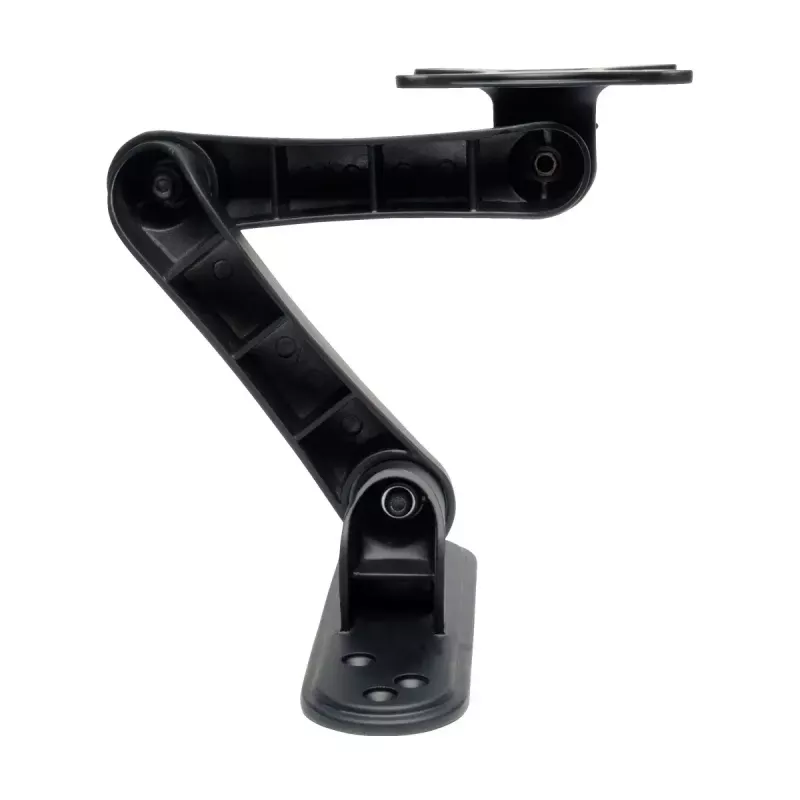

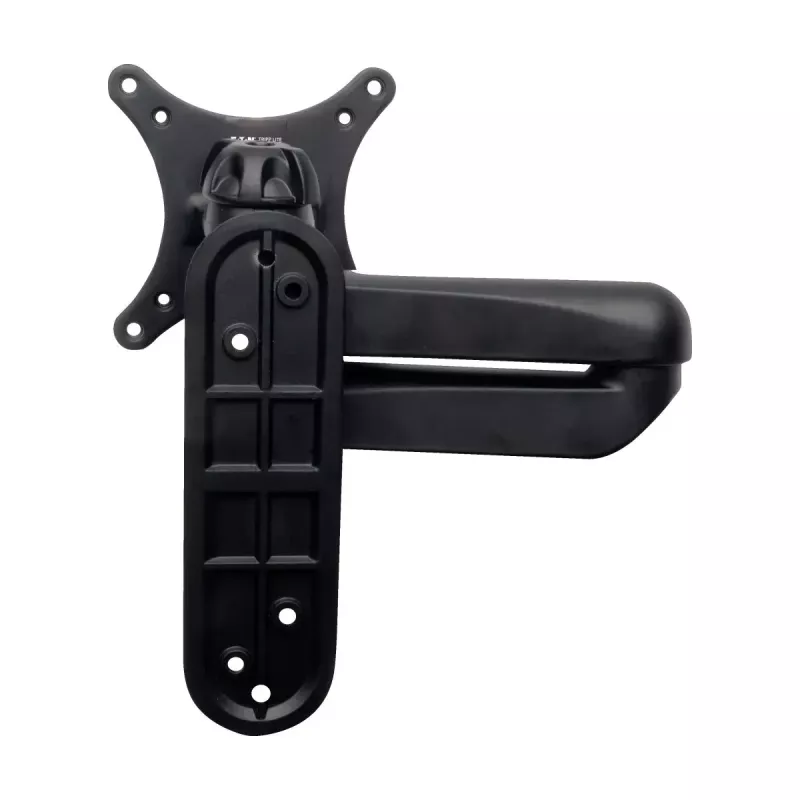

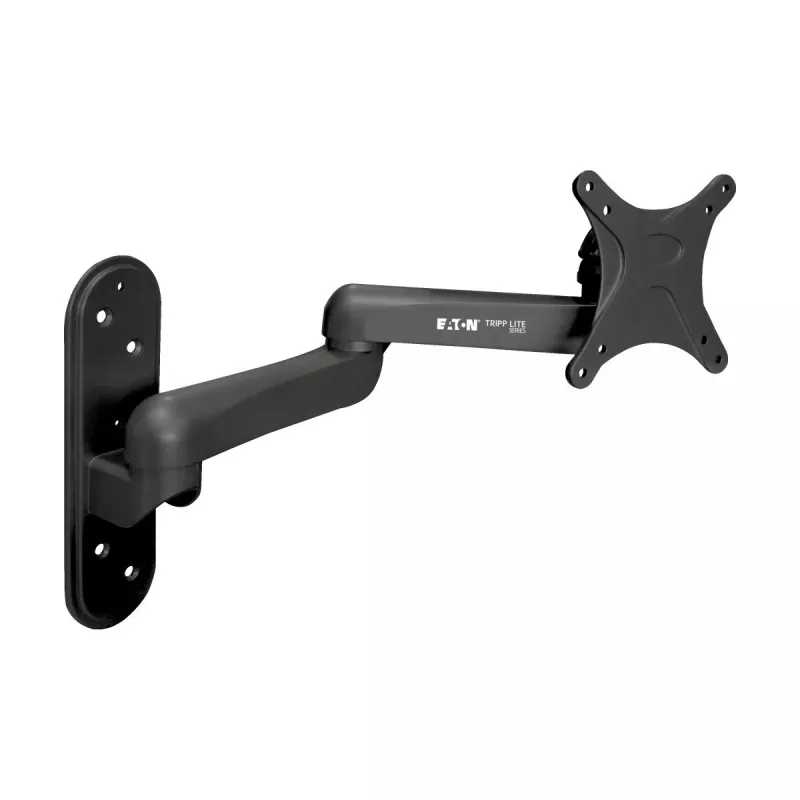

The Tripp Lite DWM1327SE wall mount is a VESA-compliant swivel and tilt bracket for flat-panel televisions and monitors from 13 to 27 inches. The all-metal frame with a scratch-resistant powder-coated black finish supports displays up to 15 kg (33 lbs) and fits VESA mounting patterns 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm. The mount is supplied fully assembled with wall-mounting hardware for quick installation.

Advantages

The full-motion arm offers up to 180° swivel and a tilt range of -15° to +15°, allowing adjustment to reduce glare and improve viewing angles. Its durable metal construction and powder-coated finish provide long-lasting support and protection for the display while remaining compact and unobtrusive. Compatibility with multiple VESA patterns and support for one display make it suitable for a variety of small to mid-size screens.

Suitable for

• Mounting 13–27 inch TVs and monitors
• Home living rooms and bedrooms
• Office workstations and meeting rooms
• Hospitality environments such as hotel rooms, bars and restaurants

Key specifications

• Brand: EATON (Tripp Lite model DWM1327SE)
• Compatible screen size: 13"–27"
• Maximum weight capacity: 15 kg (33 lbs)
• VESA compatibility: 75 x 75, 75 x 100, 100 x 75, 100 x 100 mm
• Tilt range: -15° to +15°
• Swivel: up to 180°
• Product colour: Black
• Product weight: 0.98 kg
• Number of displays supported: 1

How to use

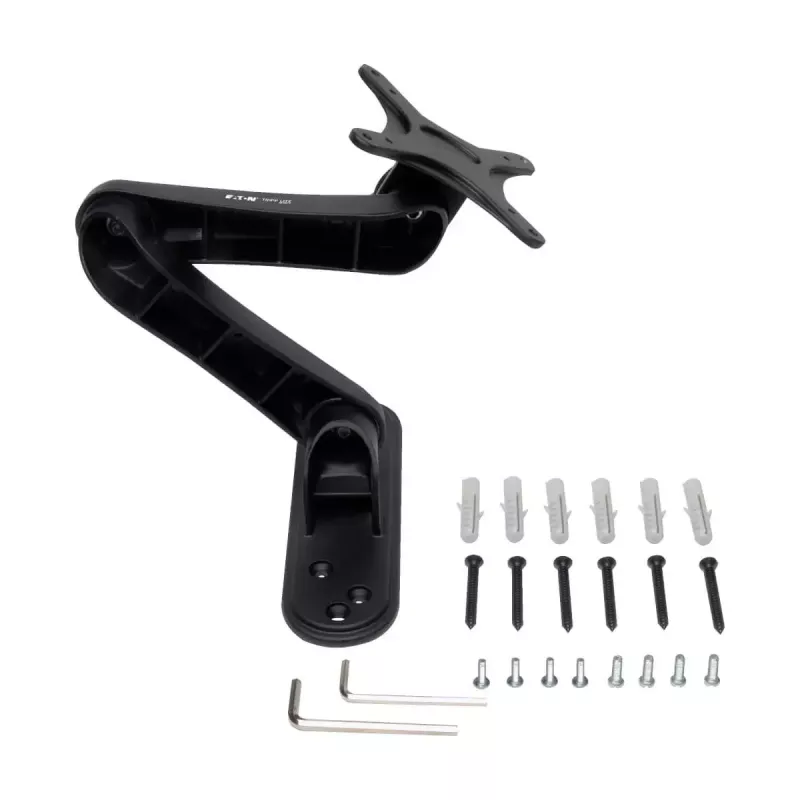

Determine the desired mounting location and ensure the wall can support the combined weight of the mount and display. Use the included hardware to attach the mount to a suitable wall surface, aligning with studs or appropriate anchors. Attach the display to the mount using the matching VESA holes (75 x 75 mm to 100 x 100 mm). Adjust the swivel and tilt to achieve the preferred viewing angle and tighten any adjustment screws to secure the position.

Recommendations

For safe installation, verify wall material and use appropriate anchors or fasteners for the wall type. Do not exceed the maximum load of 15 kg. Periodically check mounting hardware and adjustment points for tightness.
