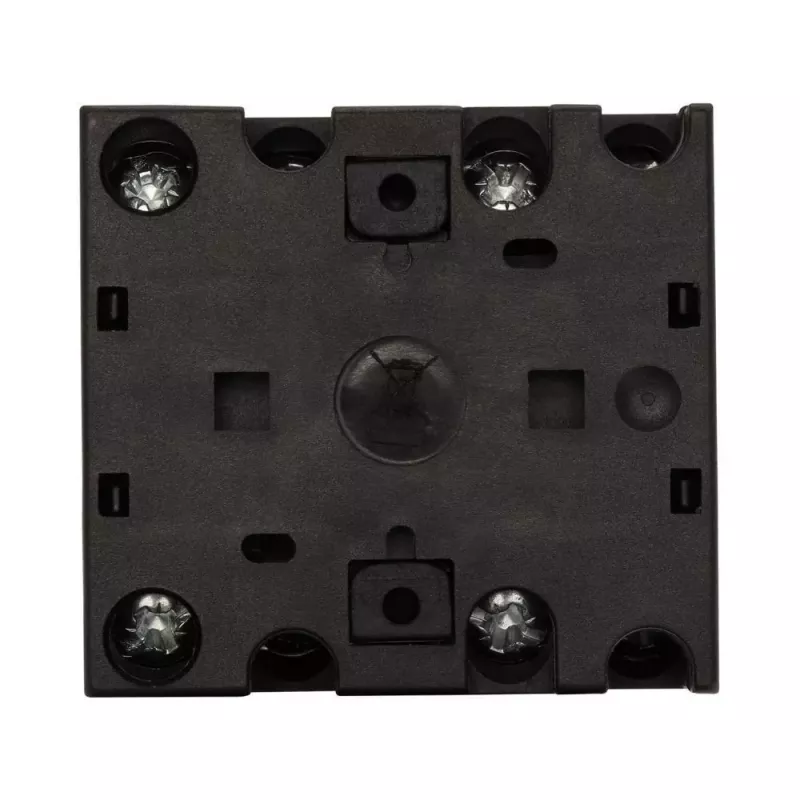

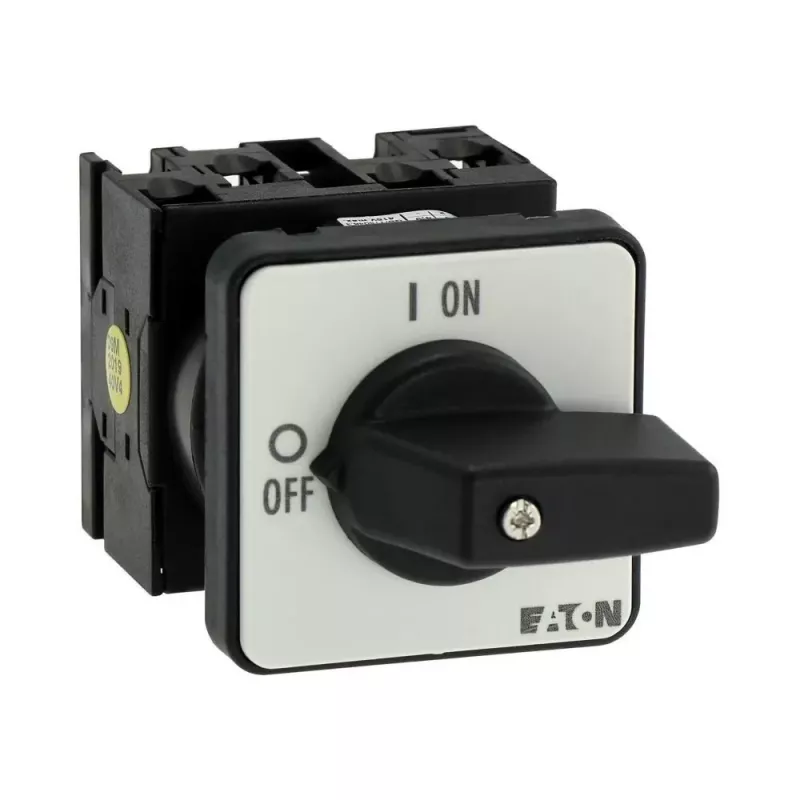

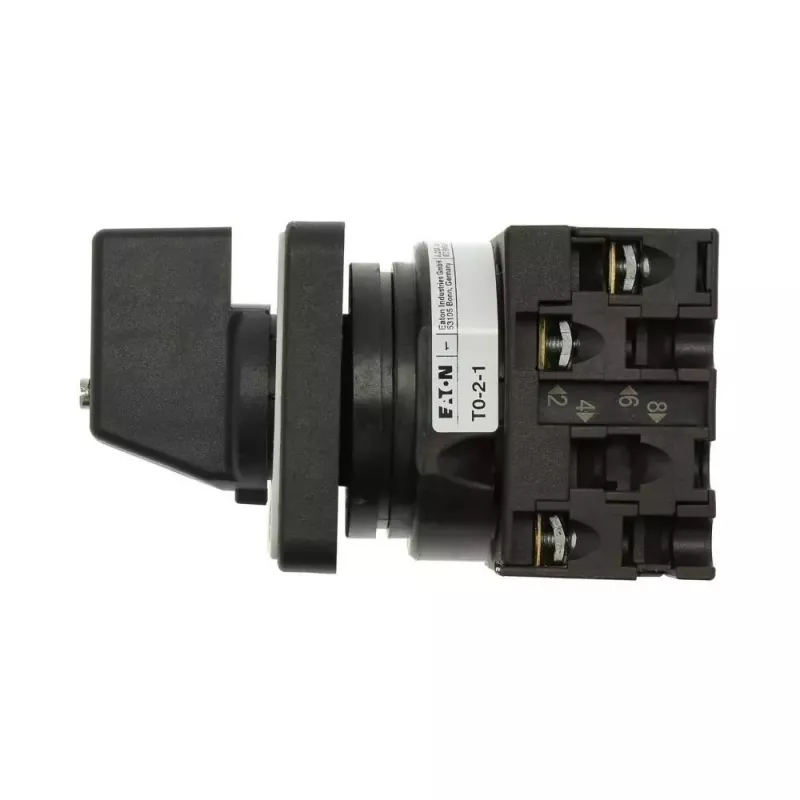

Eaton T0-2-1/E interruttore a camme 20A 2 poli 90° grigio/nero 024639

The Eaton T0-2-1/E cam switch stands out for its robust 20 A rating and compact 2-pole design, delivering reliable ON-OFF control in a space-saving form factor. Its 90° switching angle and front panel mounting make it a practical choice for industrial control panels and machine interfaces where dependable manual operation is essential.

Highlights

• Rated operational current of 20 A for handling moderate power loads
• 2-pole configuration with 2 positions (0-1) and 90° switching angle
• Front panel mounting with IP65 protection on the front, IP20 on terminals
• Grey and black housing with screw terminals for secure wiring
• Complies with IEC/EN 60947 and VDE 0660 standards

In daily use

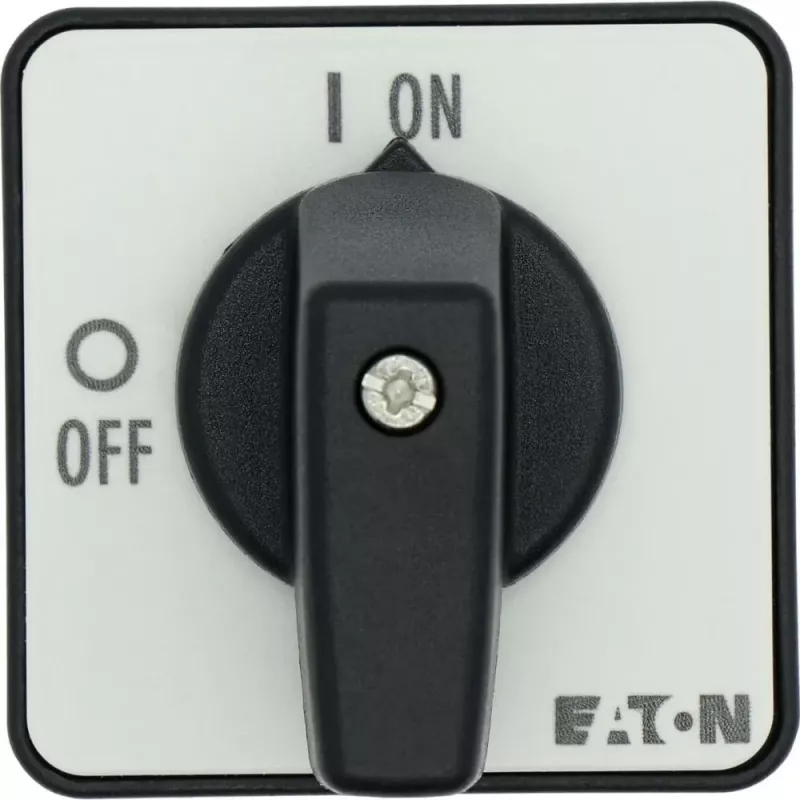

This cam switch is engineered for straightforward manual switching in industrial environments. The rotary handle provides clear tactile feedback, and the compact design allows installation in tight spaces. With a rated insulation voltage of 690 V and impulse withstand voltage of 6 kV, it ensures reliable isolation and switching under demanding conditions. The operating temperature range of -25 to +50 °C broadens its suitability across various applications.

Full specifications

• Switch type: Cam switch / Rotary switch
• Rated operational current (Ie): 20 A
• Number of poles: 2-pole
• Number of switching positions: 2 (0-1)
• Switching angle: 90°
• Mounting type: Front mounting / Panel mounting
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Colour: Grey / Black (handle)
• Rated insulation voltage (Ui): 690 V
• Rated operational voltage (Ue): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660
• Function: ON-OFF switch
• Ambient operating temperature: -25 to +50 °C
• Short-circuit protection: Fuse 25A gG/gL

Final note

For reliable manual control in industrial settings, the Eaton T0-2-1/E combines proven performance with ease of installation, making it a dependable component for your switching needs.
