Eaton T0-3-8228/E Interruttore a camme 3 poli, 20 A, ON-OFF, nero 015112

With a rated uninterrupted current of 20 A and an insulation voltage of 690 V, this Eaton cam switch handles demanding switching tasks in industrial control circuits.

Overview

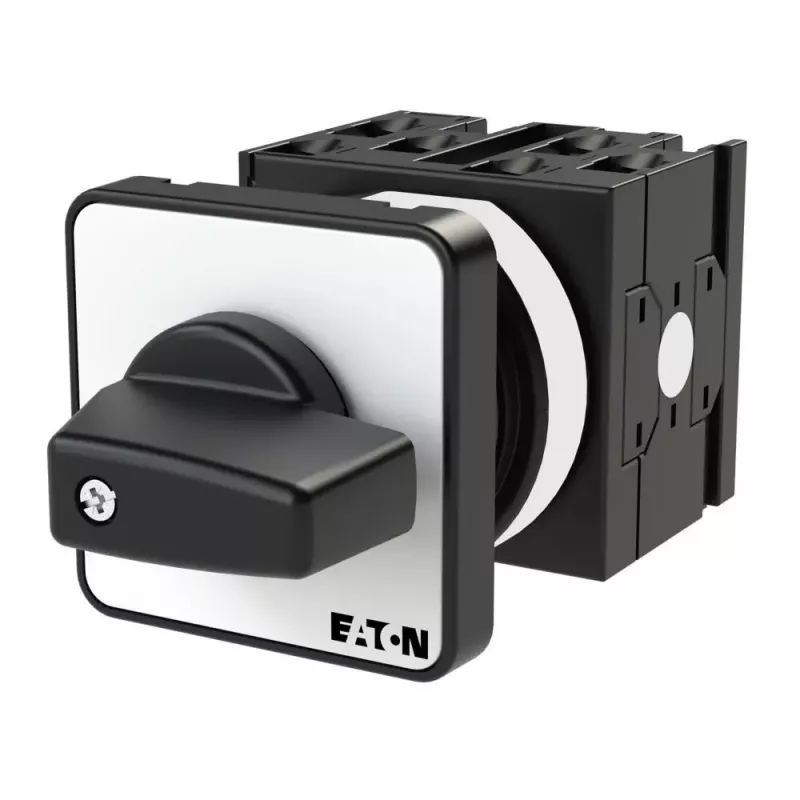

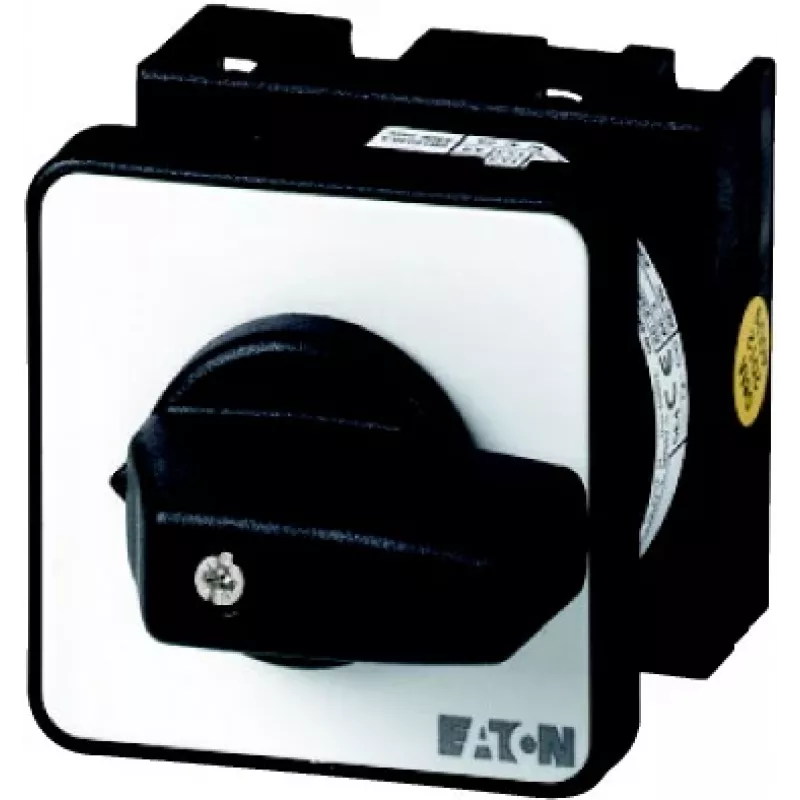

The Eaton T0-3-8228/E is a 3-pole cam switch with ON-OFF function, designed for flush mounting. It features screw terminals and a black handle and front plate.

What stands out

• Rated operational current of 20 A at AC-21A, 400 V
• Front protection degree IP65
• Mechanical lifespan over 100,000 operations
• Ambient operating temperature from -25 to +50 °C

Technical details

• Number of poles: 3
• Switch function: ON-OFF
• Number of switching positions: 2
• Rated operational current (Ie) AC-23A, 400V: 13.2 A
• Rated operational power (Pe) AC-23A, 400V: 5.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Flush mounting
• Connection type: Screw terminals
• Handle colour: Black
• Front plate colour: Black
• Standard: IEC/EN 60947
• Housing material: Insulated material

Our verdict

A robust 3-pole cam switch for panel mounting, offering reliable ON-OFF control in industrial environments.
