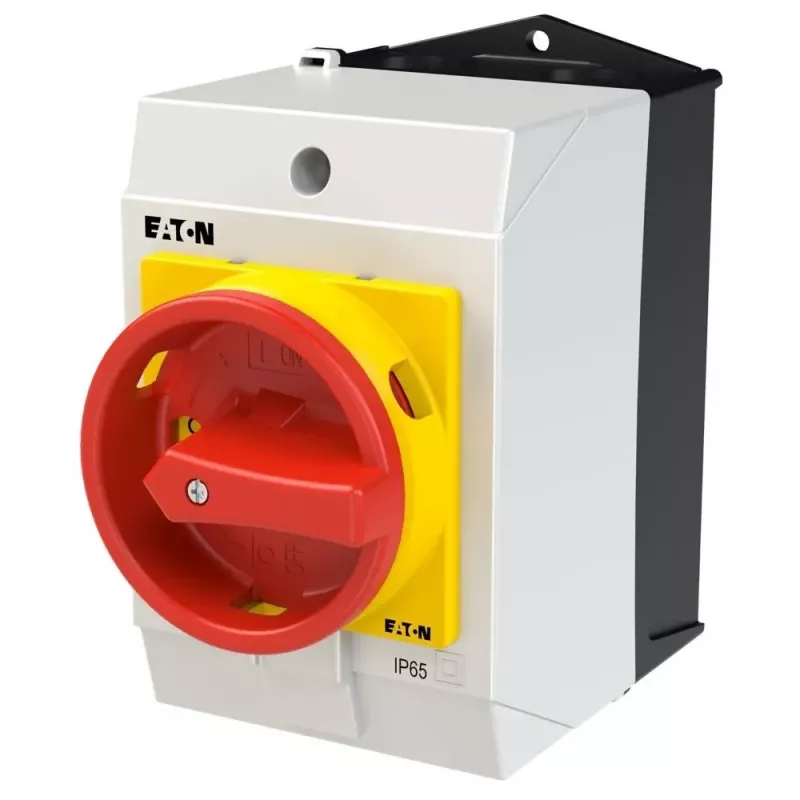

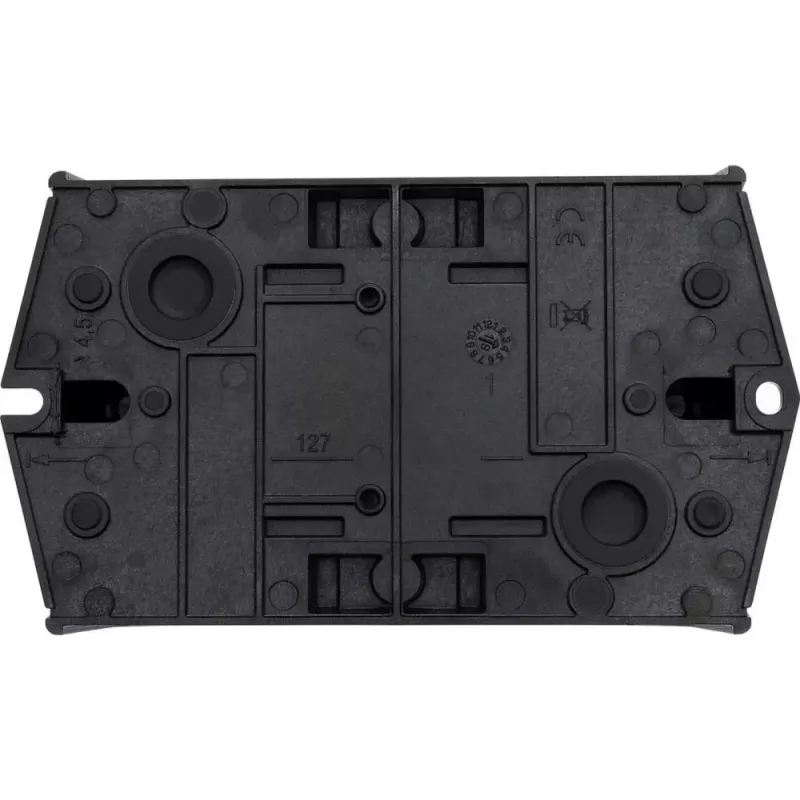

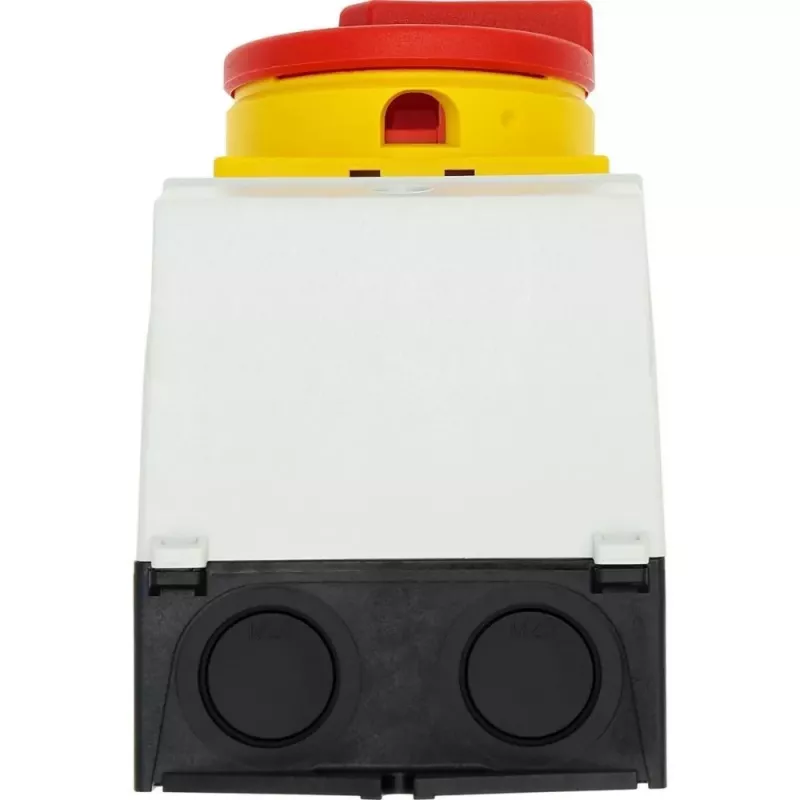

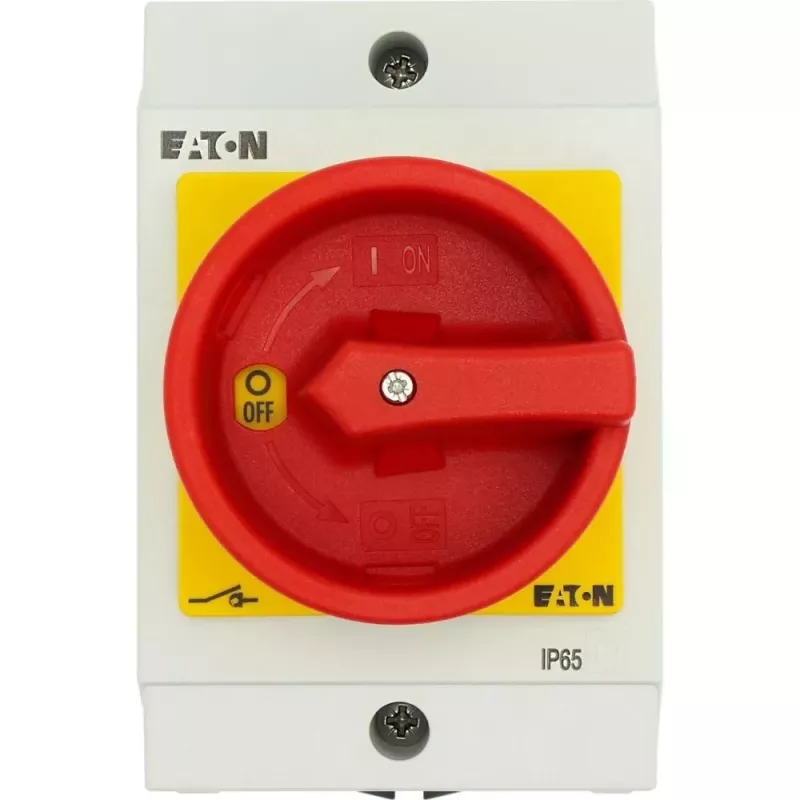

Eaton T0-3-8342/I1/SVB interruttore generale, 3 poli, 20 A, rosso/giallo 207159

This Eaton main switch provides reliable ON-OFF control for industrial and commercial applications. Its 3-pole design handles rated operational currents up to 20 A at 400 V, with a rated operational voltage of 690 V AC. The switch is built for front mounting and features a red handle on a yellow escutcheon for high visibility.

Advantages

The switch offers a high rated impulse withstand voltage of 6000 V AC, ensuring robust performance in demanding electrical environments. The IP65 front protection guards against dust and water jets, while screw terminals provide secure connections. A 90° switching angle and two switching positions allow straightforward operation.

Suitable for

• Maintenance and repair switches in industrial control panels
• Motor disconnecting applications up to 5.5 kW (AC-23A, 400 V)
• Distribution boards requiring a compact, front-mounted main switch

Key specifications

• Switch type: Main switch / Maintenance switch
• Number of poles: 3
• Switching function: ON-OFF
• Rated operational current: 20 A at 400 V
• Rated operational voltage: 690 V AC
• Degree of protection: IP65 front, IP20 terminals
• Mounting: Flush mounting (front mounting)
• Handle colour: Red; escutcheon colour: Yellow
• Terminal type: Screw terminals
• Rated short-circuit withstand current: 320 A (1 s)

Recommendations

Ideal for applications requiring a clearly visible, robust main switch with high interrupting capacity and front-panel mounting.
