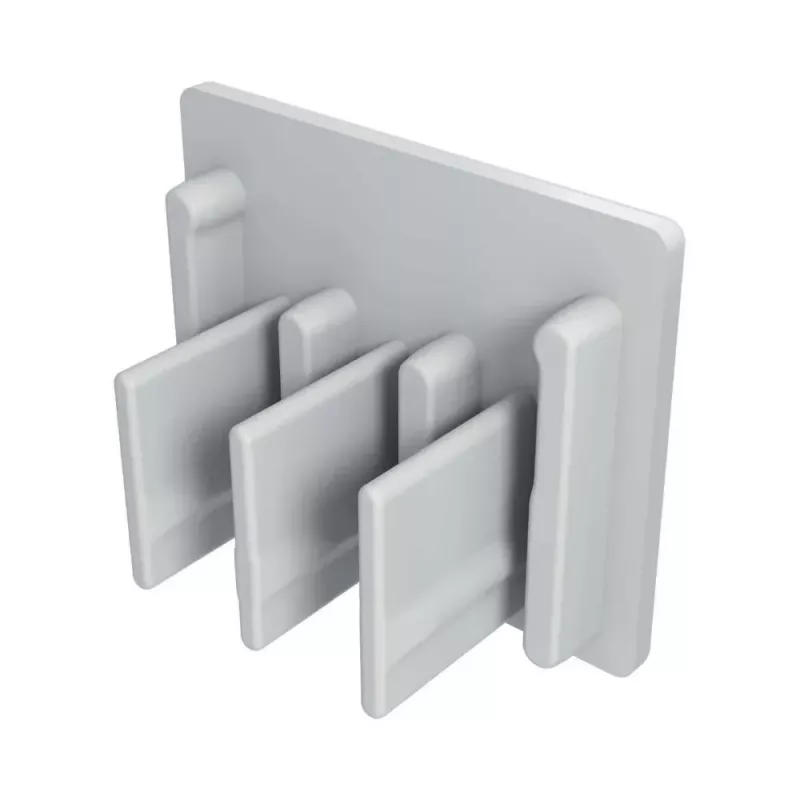

Eaton terminale EK-3N/16-EVGK-GVK (EP-501078)

Electrical installers and panel builders use the Eaton End Cap EK-3N/16-EVGK-GVK to safely terminate busbar ends in low-voltage switchgear and controlgear assemblies. This component insulates and protects the ends of 3-pole + neutral flat copper busbars within the xEnergy Main busbar system.

Key specifications

• Product type: Busbar End Cap
• System compatibility: Eaton xEnergy Main Busbar System
• Busbar configuration: 3-Pole + Neutral (3N)
• Busbar profile compatibility: EVGK-GVK (Flat Copper Busbars)
• Rated current compatibility: Up to 1600 A (system dependent)
• Function: Insulation and protection of busbar ends
• Material: Halogen-free thermoplastic
• Colour: Grey
• Mounting type: Snap-on / clip-on
• Application: Low-voltage switchgear and controlgear assemblies
• Standards compliance: IEC 61439
• Environmental compliance: RoHS compliant
• Degree of protection (installed): IP20 (system dependent)
• Series: xEnergy Main

Why choose it

The end cap is made from halogen-free thermoplastic, providing reliable insulation and mechanical protection. Its snap-on design allows quick and secure installation without additional tools, reducing assembly time in panel building.

Ideal use cases

• Terminating busbar ends in power distribution panels
• Enhancing safety in low-voltage switchgear assemblies
• Protecting busbar ends from accidental contact and debris

Good to know

This end cap is part of the Eaton xEnergy Main series and is intended for use with compatible busbar profiles. Ensure the busbar configuration matches the 3N/16 designation for proper fit.
