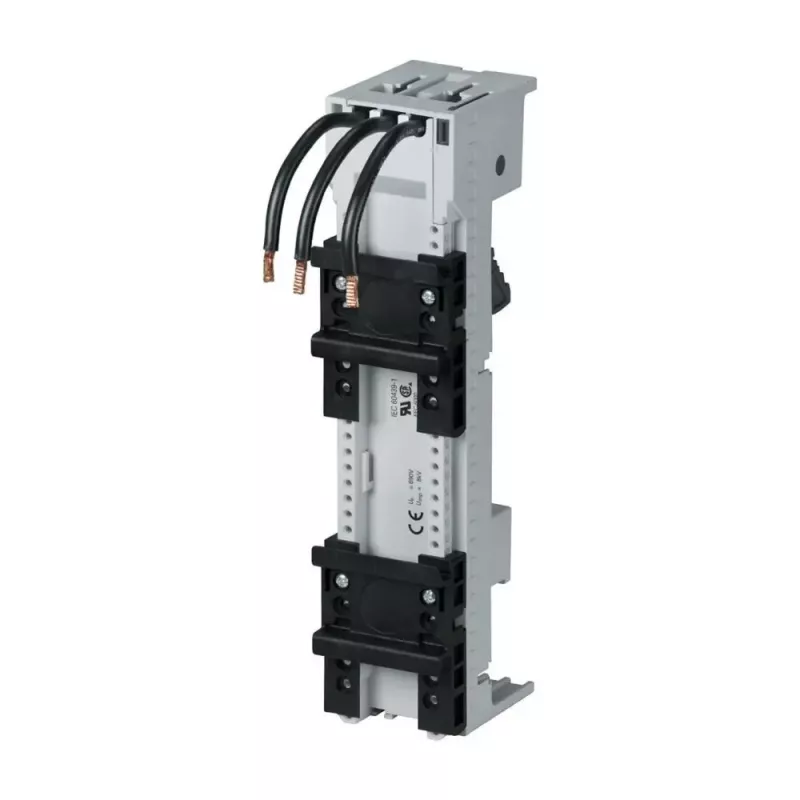

Eaton xEnergy Adattatore per barra collettrice 45mm 25A 2TE BBA0-25/2TS 101481

Busbar adapter for 45 mm busbar systems, rated at 25 A, with 2 module width (TE), for mounting in xEnergy distribution boards. Provides a reliable connection between busbars and modular devices using screw terminals.

Advantages

Compact 2 TE width saves space in distribution boards. Screw terminals accept solid conductors up to 16 mm² and flexible conductors with ferrules up to 10 mm². Designed for 45 mm busbar spacing, ensuring compatibility with xEnergy systems. High short-circuit withstand of 25 kA (1 s) for robust performance.

Suitable for

• Mounting modular devices on 45 mm busbars in xEnergy distribution boards
• Applications requiring a 25 A connection with screw terminals
• Installations with solid or flexible conductors up to specified cross-sections

Key specifications

• Rated current: 25 A
• Busbar spacing: 45 mm
• Number of modules: 2 TE
• Rated operational voltage: 400 V AC
• Connection type: screw terminal
• Conductor cross-section solid: 1.5 - 16 mm²
• Conductor cross-section flexible with ferrule: 1.5 - 10 mm²
• Material: polyamide (PA), copper

Recommendations

Verify compatibility with your busbar system and ensure proper torque when tightening screw terminals. Use appropriate ferrules for flexible conductors to maintain reliable connections.
