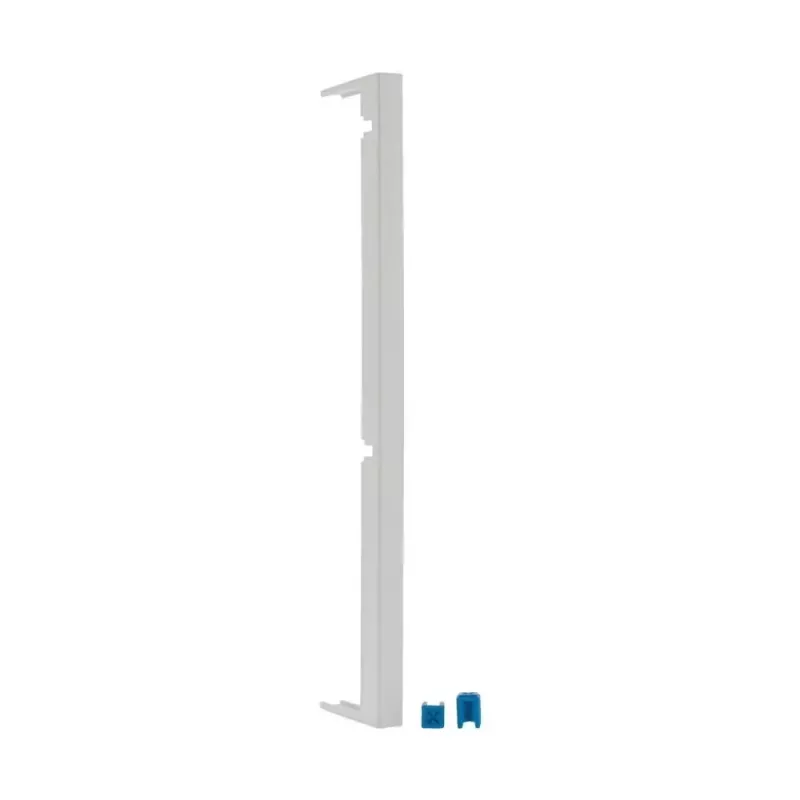

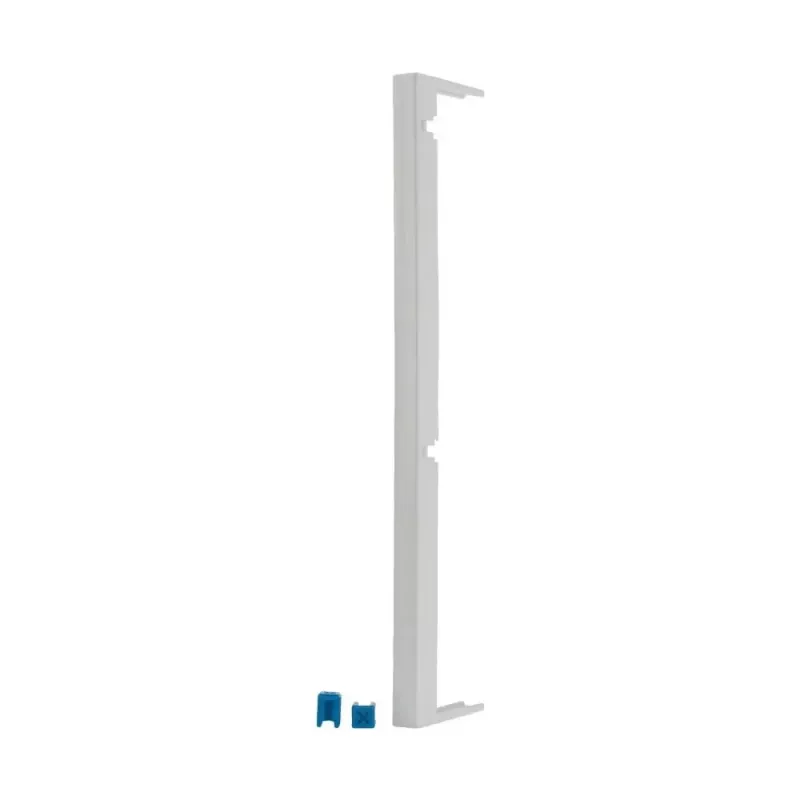

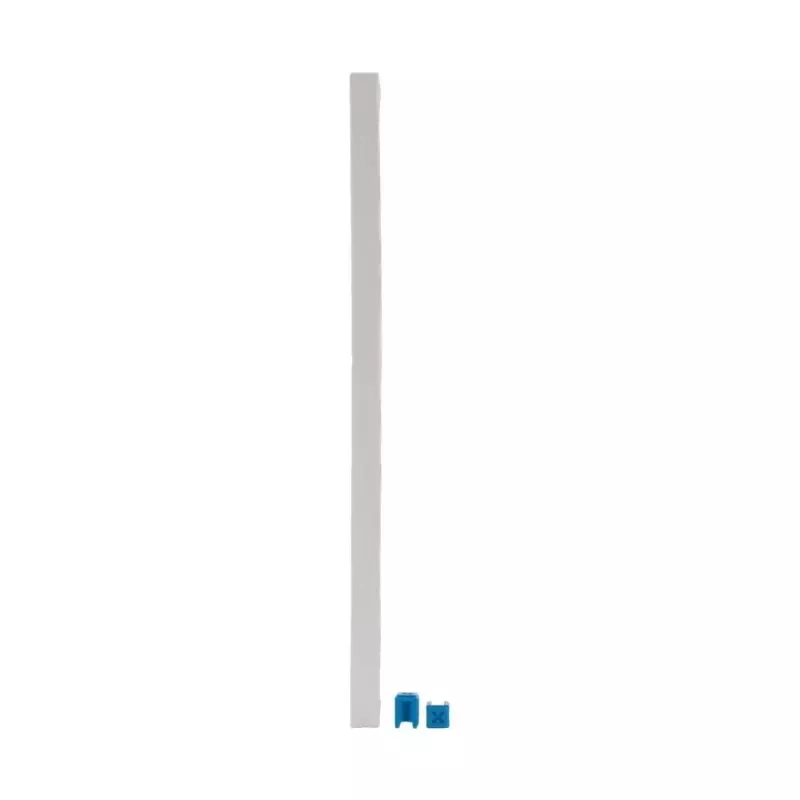

Eaton xEnergy adattatore per barra collettrice modulo laterale 9x200mm BBA-XSM (101484)

Rated insulation voltage of 1000 V AC / 1500 V DC with 8 kV impulse withstand for reliable power distribution in Eaton xEnergy systems.

Overview

The Eaton 101484 is a side module busbar adapter designed for the xEnergy main distribution system. It connects devices to main busbar systems with flat busbars measuring 9 x 200 mm. The adapter is 3-pole and mounts on the side, providing a secure and efficient connection point.

What stands out

• High insulation voltage: 1000 V AC / 1500 V DC
• Impulse withstand voltage: 8 kV
• Compatible with Eaton xEnergy busbar systems
• Side mounting for flexible installation
• Degree of protection: IP20

Technical details

• Product Type: Busbar Adapter
• Module Type: Side Module
• Busbar System Compatibility: Eaton xEnergy
• Compatible Busbar Dimensions: 9 x 200 mm
• Number of Poles: 3-pole
• Mounting Position: Side
• Rated Insulation Voltage (Ui): 1000 V AC / 1500 V DC
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Degree of Protection (IP): IP20
• Standard Compliance: IEC/EN 61439-1, VDE 0660 Part 500
• Application: For connecting devices to main busbar systems
• System Component: xEnergy main distribution system
• Connection Type: For flat busbars
• Material: Insulated housing, conductive contacts
• Colour: Grey
• Manufacturer Series: xEnergy

Our verdict

A robust side module for Eaton xEnergy busbar systems, offering high voltage ratings and reliable connectivity for industrial power distribution.
