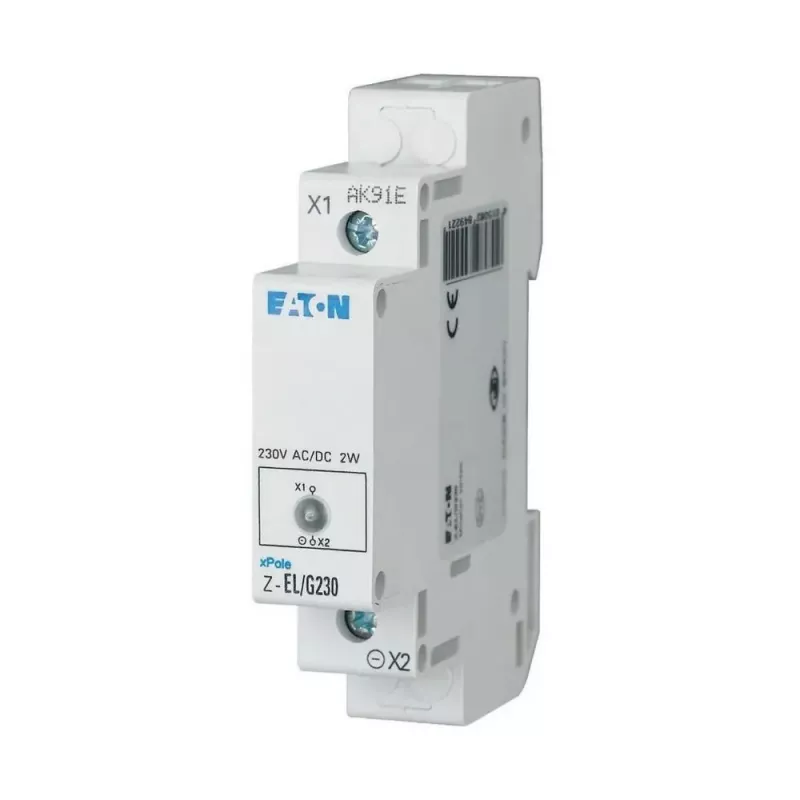

Eaton Z-EL/G230 spia luminosa LED verde, guida DIN, 230V AC, 1 TE 284922

With a rated impulse withstand voltage of 4 kV, the Eaton Z-EL/G230 indicator light provides robust signalling for DIN rail installations. This green LED unit operates at 230V AC and is built for reliable visual status indication in control panels and distribution boards.

Overview

The Eaton Z-EL/G230 is a compact indicator light designed for DIN rail mounting, occupying just 1 TE (18mm) of space. It uses a green LED light source, ensuring long service life and low energy consumption. The device connects via screw terminals, supporting solid conductors up to 2.5 mm² and flexible conductors up to 1.5 mm².

What stands out

• High impulse withstand voltage (4 kV) for enhanced durability
• Energy-efficient LED with approximately 0.8 W power consumption
• Wide operating temperature range from -25°C to +50°C
• Compact 1 TE width for space-saving installation
• Thermoplastic housing for insulation and mechanical protection

Technical details

• Light source: LED
• Light colour: Green
• Rated operating voltage: 230V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail
• Number of modules: 1 TE (18mm)
• Connection type: Screw terminals
• Terminal capacity (solid): 1 - 2.5 mm²
• Terminal capacity (flexible): 1 - 1.5 mm²
• Degree of protection (front): IP40
• Degree of protection (terminals): IP20
• Operating temperature range: -25 to +50 °C
• Storage temperature range: -40 to +80 °C
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 250 V
• Power consumption: Approx. 0.8 W
• Housing material: Thermoplastic

Our verdict

A dependable green LED indicator for DIN rail applications, offering solid electrical performance and a compact footprint. Its high impulse withstand rating and wide temperature range make it suitable for demanding industrial environments.
