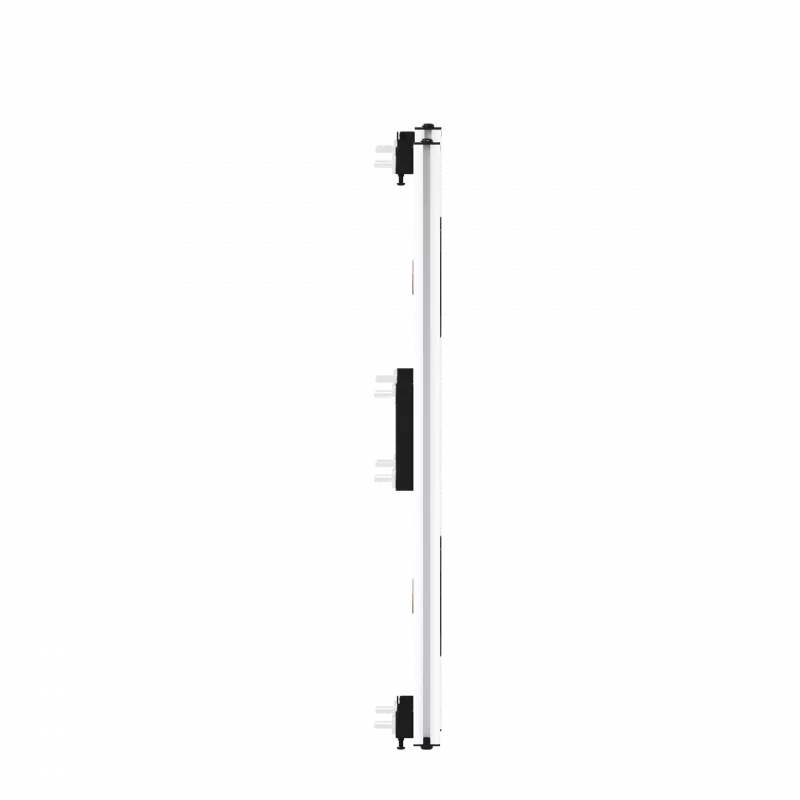

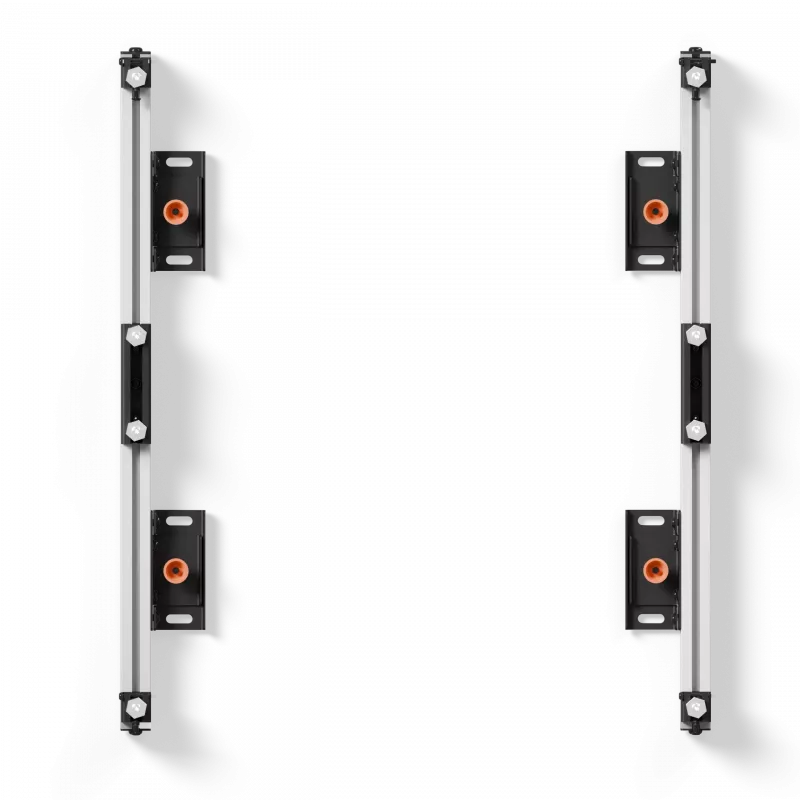

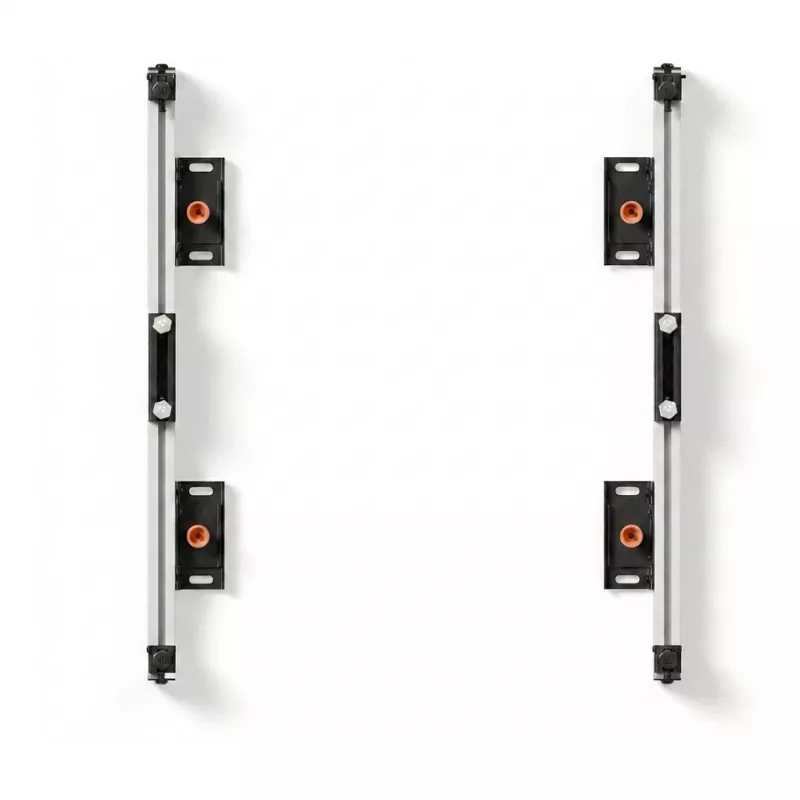

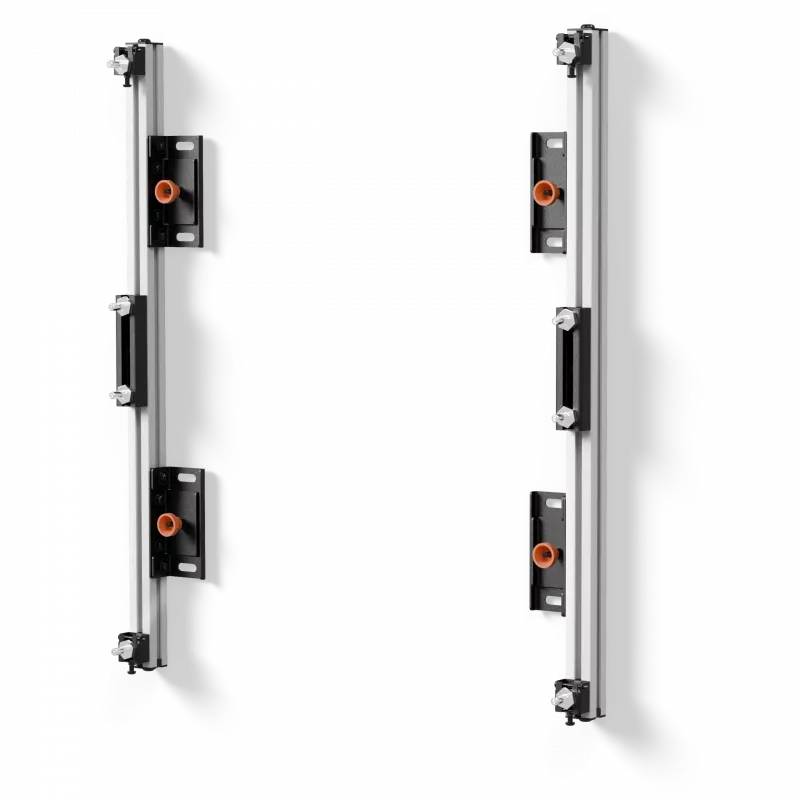

EDBAK ULS2337 sistema LED universale per 2 cabinet 600 x 337,5 mm | nero

Precision alignment for LED video walls starts with a mounting system that offers 6-point micro-adjustment for depth, height, and tilt, ensuring seamless panel integration. The EDBAK ULS2337 Universal LED System is engineered for indoor fixed installations, supporting two 600 x 337.5 mm LED cabinets in a vertical 1x2 configuration. Built from high-grade steel with a black powder-coated finish (RAL 9005), this wall mount delivers durability and a professional appearance for control rooms, broadcast studios, retail spaces, and corporate lobbies.

Overview

The ULS2337 provides a modular and scalable solution for LED video walls, allowing precise alignment and easy maintenance. Its front service access enables push-in/push-out panel handling without dismantling the entire wall, while integrated cable management keeps installations clean. An anti-theft system adds security for valuable equipment, and integrated leveling screws simplify setup. With a maximum load capacity of 50 kg and a system depth of 70 mm from the wall, this mount balances strength and space efficiency.

What stands out

• 6-point micro-adjustment for depth, height, and tilt with a range of +/- 15 mm
• Front service access for quick push-in/push-out maintenance
• Integrated cable routing and anti-theft system for tidy, secure installations
• High-grade steel construction with black powder-coated finish (RAL 9005)
• Supports two 600 x 337.5 mm cabinets in a 1x2 vertical stack

Technical details

• System Type: LED Video Wall Mounting System
• Supported LED Cabinet Dimensions: 600 x 337.5 mm
• Number of Supported Cabinets: 2
• Configuration: 1x2 (1 column, 2 rows)
• Mounting Type: Wall Mount
• Material: High-grade Steel
• Color: Black (RAL 9005)
• Micro-adjustment Points: 6-point (depth, height, tilt)
• Depth Adjustment Range: +/- 15 mm
• Max Load Capacity: 50 kg
• Serviceability: Front service access (push-in/push-out)
• Integrated Leveling: Yes, with leveling screws
• Cable Management: Integrated cable routing options
• System Depth from Wall: 70 mm
• Anti-theft System: Yes
• Application: Indoor Fixed Installations
• Installation: Modular and scalable design
• Finish: Powder Coated

Our verdict

The EDBAK ULS2337 excels in precision and serviceability, making it a top choice for professional LED video wall installations. Its micro-adjustment and front access features reduce installation time and long-term maintenance costs.
