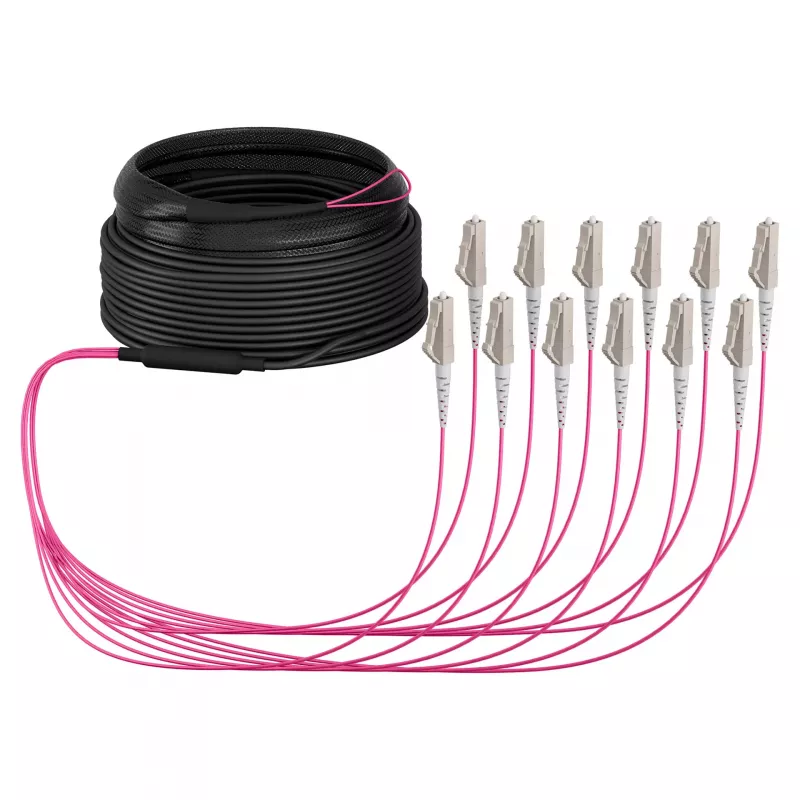

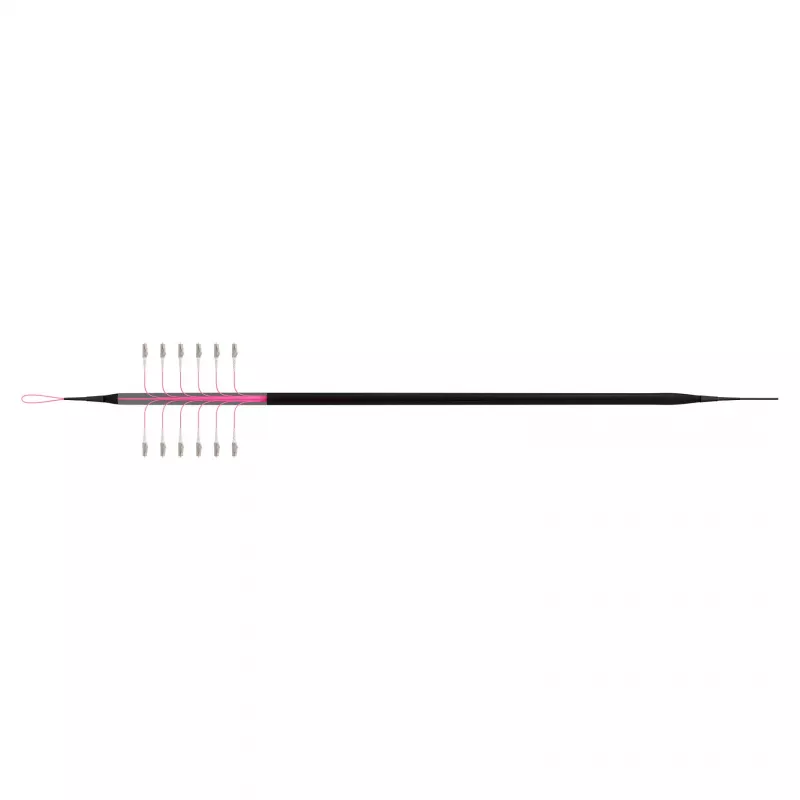

EFB Cavo trunk U-DQ ZN BH OM4 12G 1x12 LC-LC 30m Dca LSZH

The EFB Trunk Cable O8342S30OM4 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding environments. With OM4 multimode fiber and 12 fibers, it supports high-speed networks up to 100 Gbps over distances up to 100 meters. The cable features LC to LC connectors, a 30-meter length, and a robust U-DQ ZN BH construction with rodent protection, making it suitable for both indoor and outdoor use. The LSZH jacket ensures safety in confined spaces, and the Dca fire rating complies with European CPR standards.

Advantages

This trunk cable offers exceptional bandwidth and low attenuation, ensuring efficient data transfer for enterprise networks, data centers, and telecommunications. Its universal design and rodent protection provide durability and longevity, while the LSZH jacket minimizes toxic smoke in case of fire.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications and IT installations
• Indoor and outdoor fiber optic runs

Key specifications

• Product Type: Fiber Optic Trunk Cable
• Fiber Type: OM4 Multimode
• Number of Fibers: 12

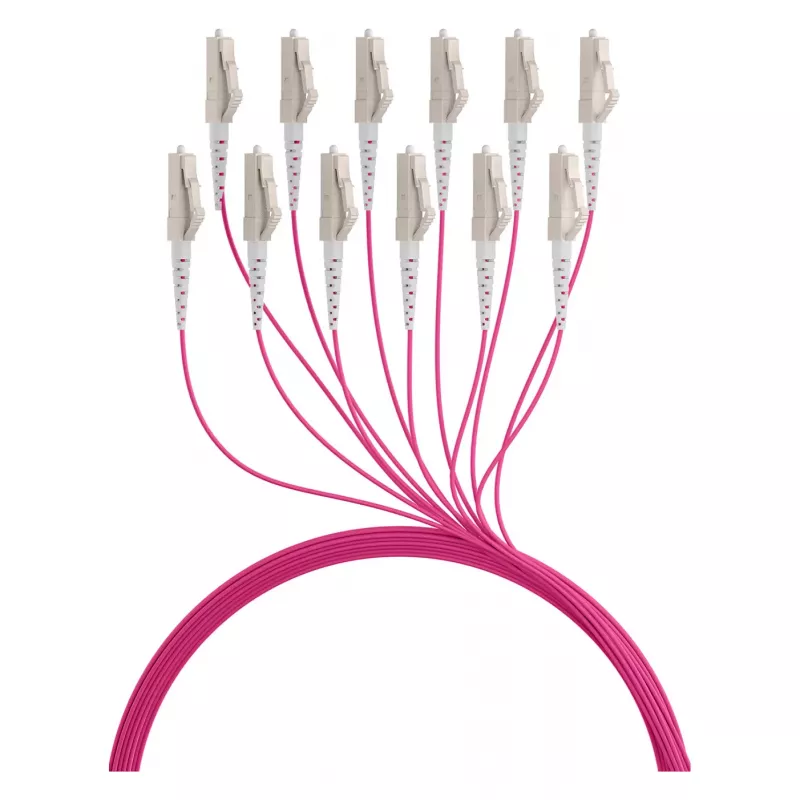

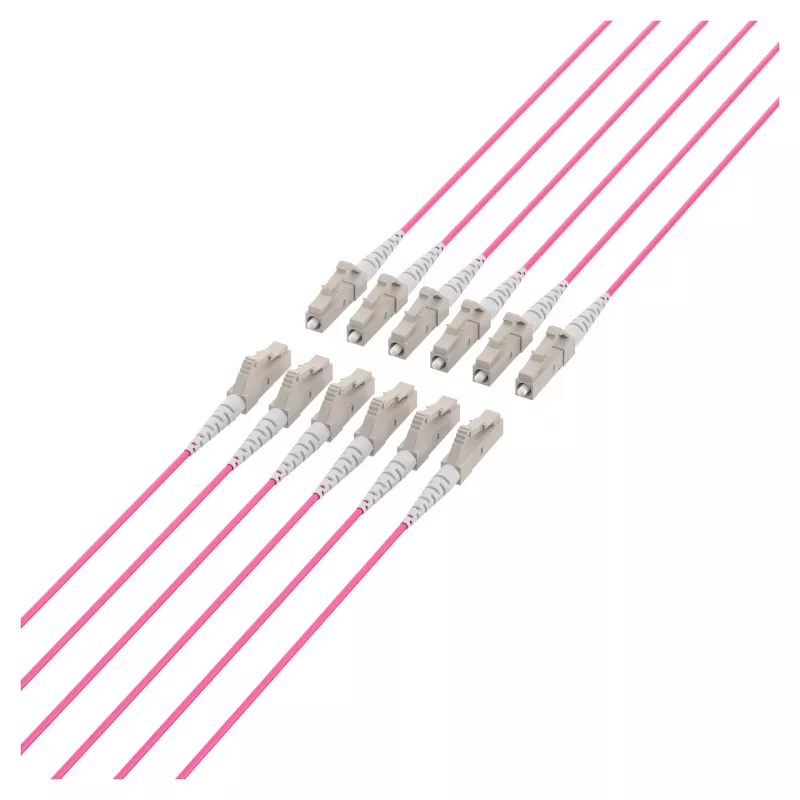

• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Rating (CPR): Dca
• Cable Construction: U-DQ ZN BH (Universal, Rodent Protected)
• Core/Cladding Diameter: 50/125 µm
• Supported Wavelengths: 850 nm, 1300 nm
• Maximum Data Rate (850nm): 100 Gbps (up to 100m)
• Application Environment: Indoor/Outdoor (Universal)
• Cable Color: Aqua
• Attenuation (850nm): ≤ 2.3 dB/km
• Attenuation (1300nm): ≤ 0.6 dB/km
• Typical Insertion Loss (per connector pair): ≤ 0.3 dB
• Typical Return Loss: ≥ 30 dB
• Standards Compliance: IEC 60794-2, EN 50575 (CPR)

Recommendations

For optimal performance, pair this trunk cable with compatible OM4 patch panels and connectors. Ensure proper cable management to maintain bend radius and avoid signal loss.
