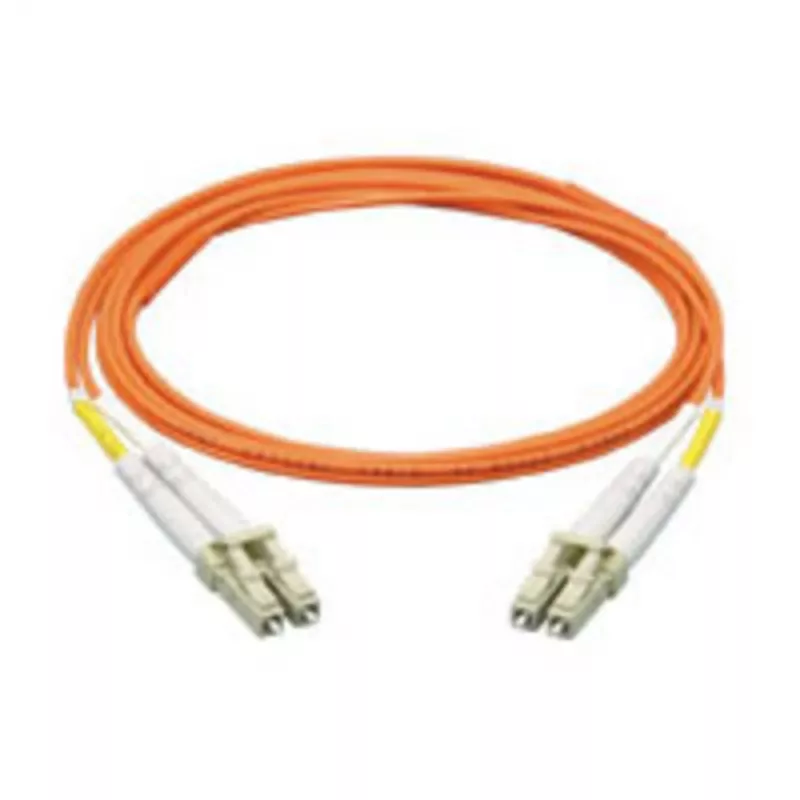

EFB Electronics cavo patch in fibra ottica ECOFIBER LC duplex multimodale OM3 1 m acqua

The EFB Electronics ECOFIBER fiber optic patch cable is a high-performance, duplex multi-mode cable designed for reliable high-speed data transmission in enterprise networks, data centers, and SAN environments. With LC male connectors on both ends, OM3 fiber class, and a 1-meter length, this cable delivers exceptional bandwidth and low attenuation for 10 Gigabit Ethernet and beyond.

Advantages

Optimized for 10 Gbps and higher data rates, the OM3 multimode fiber ensures excellent signal integrity over short to medium distances. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic and corrosive emissions during combustion. The aqua-colored jacket enables easy identification of OM3 cabling.

Suitable for

• High-speed data networks (10 GbE, 40 GbE, 100 GbE)
• Storage Area Networks (SANs)
• Local Area Networks (LANs)
• Data center interconnects
• Fiber-to-the-desk applications

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multi-mode (MM) OM3
• Core/Cladding: 50/125 µm
• Connectors: LC Male to LC Male, Duplex
• Length: 1 meter
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Aqua
• Number of fibers: 2
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Attenuation (850 nm): 3.5 dB/km
• Attenuation (1300 nm): 1.5 dB/km
• Bandwidth (850 nm): 1500 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure clean, dust-free connector end-faces before installation. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
