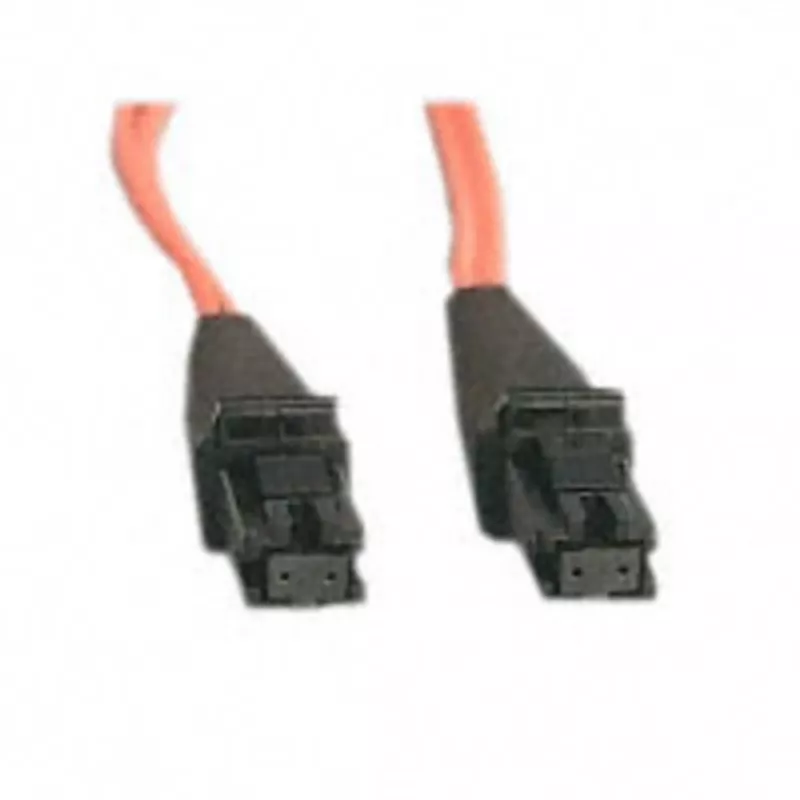

EFB Electronics Cavo patch in fibra ottica MT-RJ (M) a MT-RJ (M) 1m multimodale OM3 LSZH acqua

The EFB Electronics O0701.5 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring MT-RJ male connectors on both ends, this duplex multimode OM3 cable delivers exceptional bandwidth and low attenuation for 10 Gigabit Ethernet and beyond. The 1-meter length is ideal for short-distance connections within data centers, LANs, and SANs.

Advantages

Optimized for high-speed networks with OM3 multimode fiber supporting 10 Gbps up to 300 meters. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces by reducing toxic fumes and smoke in case of fire. Aqua-colored jacket enables easy identification of OM3 cabling. Pre-terminated with MT-RJ connectors for quick, tool-less installation.

Suitable for

• Data center patching and cross-connects
• Local Area Network (LAN) backbone
• Storage Area Network (SAN) connectivity
• Telecommunications equipment linking
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type: MT-RJ (Male) to MT-RJ (Male)
• Fiber Type: Multimode OM3 (50/125 µm)
• Number of Fibers: Duplex (2 fibers)
• Cable Length: 1 meter (3.3 ft)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Operating Temperature: -20°C to 70°C
• Standards: RoHS, TIA/EIA-568-C.3
• Polarity: A-B (Cross-over)
• Cable Construction: Zipcord

Recommendations

For optimal performance, pair this patch cable with OM3-compatible transceivers and patch panels. Ensure proper bend radius during installation to maintain low attenuation. Ideal for high-density environments where space and safety are critical.
