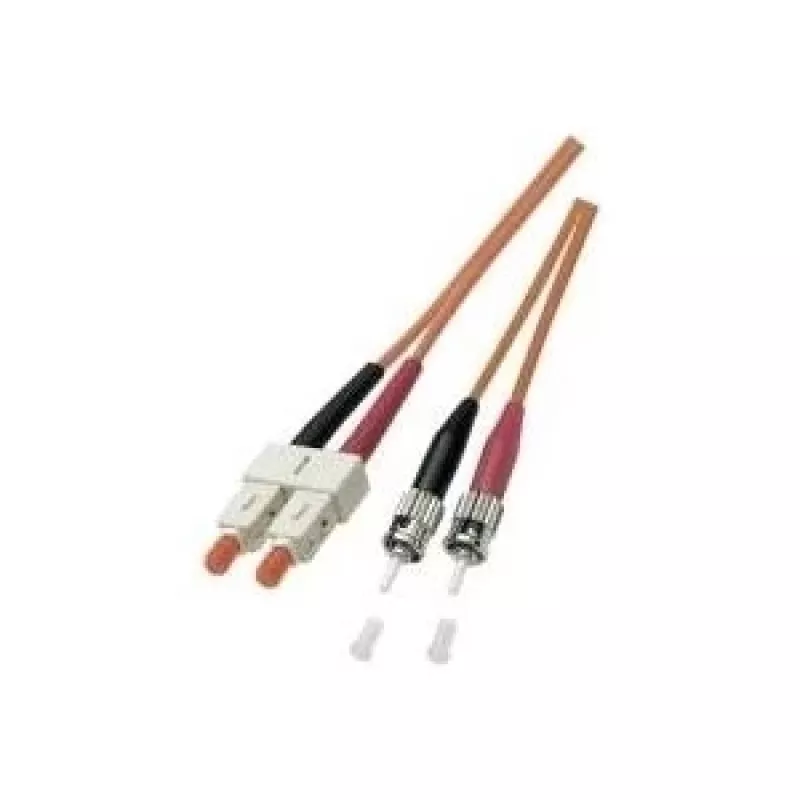

EFB Electronics ECOFIBER Jumper Duplex SC-ST 50/125 µm OM2 LSZH arancione 3,0 mm 5 m

The EFB Electronics ECOFIBER Duplex Jumper SC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM2 grade, 50/125µm core/cladding, and LSZH jacket, it ensures safety and performance in data centers, telecom rooms, and enterprise environments.

Advantages

Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire, making it ideal for indoor installations. Duplex design with SC to ST connectors provides secure connections and easy polarity management. Typical insertion loss <0.3 dB ensures minimal signal loss.

Suitable for

• Fiber optic network connections between switches, patch panels, and equipment
• Multimode OM2 applications up to 550m at 1 Gbps
• Indoor installations requiring LSZH compliance

Key specifications

• Cable type: Duplex fiber optic patch cable
• Connectors: SC to ST, PC polish
• Fiber: Multimode 50/125µm, OM2
• Length: 5 m
• Jacket: LSZH, orange, 3.0 mm diameter per strand
• Attenuation: 3.0 dB/km @850nm, 1.0 dB/km @1300nm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. Compatible with all standard SC and ST ports. Suitable for 1 Gbps and 10 Gbps applications over shorter distances.
