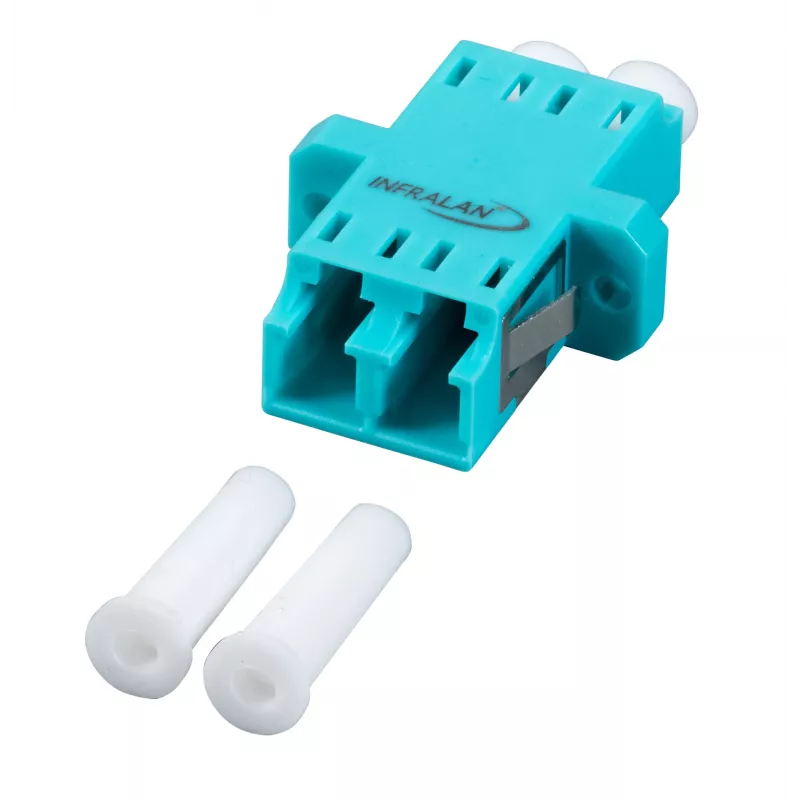

EFB Elektronik accoppiatore LC-Duplex OM3 plastica aqua, case monoblocco SC-Simplex

The EFB Elektronik LC-Duplex OM3 plastic aqua housing one-piece SC-Simplex coupler is a high-performance fiber optic adapter designed for reliable and low-loss connections in multimode OM3 networks. Its durable plastic housing in aqua color ensures easy identification and compatibility with standard SC-Simplex mounting footprints.

Advantages

This coupler offers exceptional insertion loss of less than 0.2 dB and high return loss greater than 30 dB, ensuring optimal signal integrity. The zirconia ceramic sleeve provides excellent durability and alignment for over 1000 mating cycles. Its one-piece design simplifies installation and reduces potential points of failure.

Suitable for

• Data center fiber optic patching
• Local area network (LAN) backbone connections
• Telecommunications infrastructure
• High-speed multimode OM3 applications

Key specifications

• Connector Type: LC-Duplex to LC-Duplex
• Fiber Mode: Multimode OM3
• Housing Material: Plastic (Aqua)
• Mounting Standard: SC-Simplex Footprint
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 30 dB (typical)
• Mating Cycles: > 1000
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Flammability Rating: UL94 V-0
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this coupler with high-quality OM3 patch cables and ensure clean connector end-faces before mating. Ideal for use in structured cabling systems requiring reliable duplex LC connections.
