Armadio di rete 19 pollici 42U 800x800, IP55, con basamento premontato, RAL9005 691742IP55V2.TS

Dust, moisture and unauthorized access can compromise network equipment in industrial and outdoor environments. This floor-standing 19-inch network cabinet provides a sealed, IP55-rated enclosure for 42U of equipment, with a pre-assembled plinth for stable installation and easy cable management.

Who is it for

IT administrators and system integrators who need a secure, dust- and water-resistant cabinet for servers, switches and patch panels in factories, warehouses, or network rooms with challenging conditions.

Main features

• 42U capacity for standard 19-inch rack-mount equipment
• IP55 protection against dust and water jets
• Pre-assembled 100 mm plinth for stable floor mounting
• Lockable steel front and rear doors, removable lockable side panels

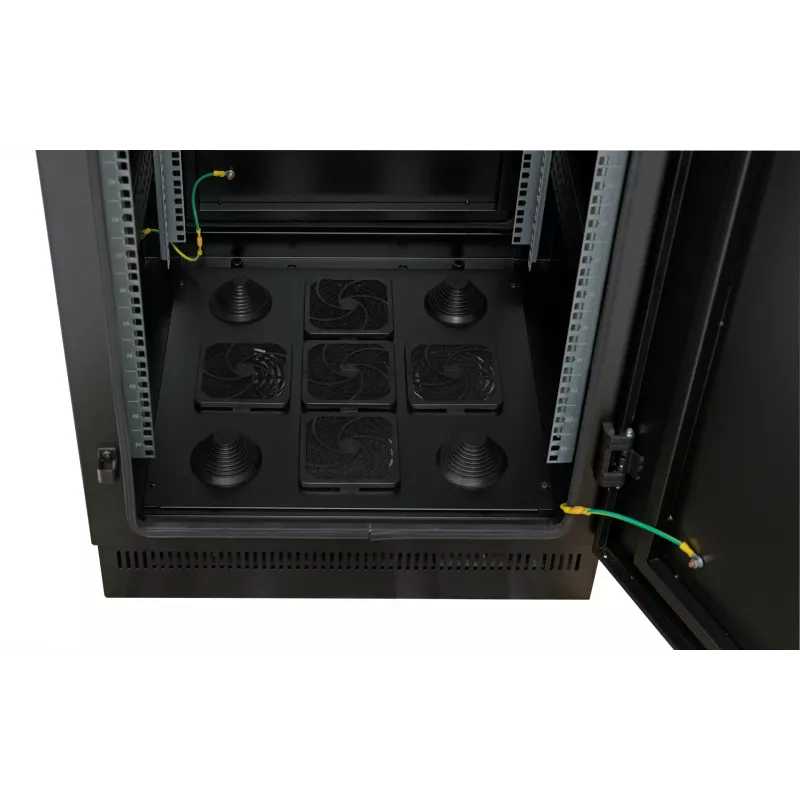

• Sealed cable entry at top and bottom
• Adjustable-depth 19-inch mounting rails
• Jet black RAL 9005 finish

Specifications

• Rack standard: 19-inch
• Rack units: 42U
• Ingress protection: IP55
• External width: 800 mm
• External depth: 800 mm
• External height incl. plinth: approx. 2050 mm
• Plinth height: approx. 100 mm
• Colour: RAL 9005 (jet black)
• Material: steel
• Static load capacity: 1000 kg
• Front door: steel, lockable
• Rear door: steel, lockable
• Side panels: removable, lockable
• Cable entry: top and bottom, sealed
• Cooling: passive (sealed for IP55)

Tips

Ensure the floor can support the total weight of the cabinet plus equipment. Use the sealed cable entries with appropriate glands to maintain the IP55 rating.
