EFB Elektronik Cappuccio Full Metal 35° E-MHDM35 25-K

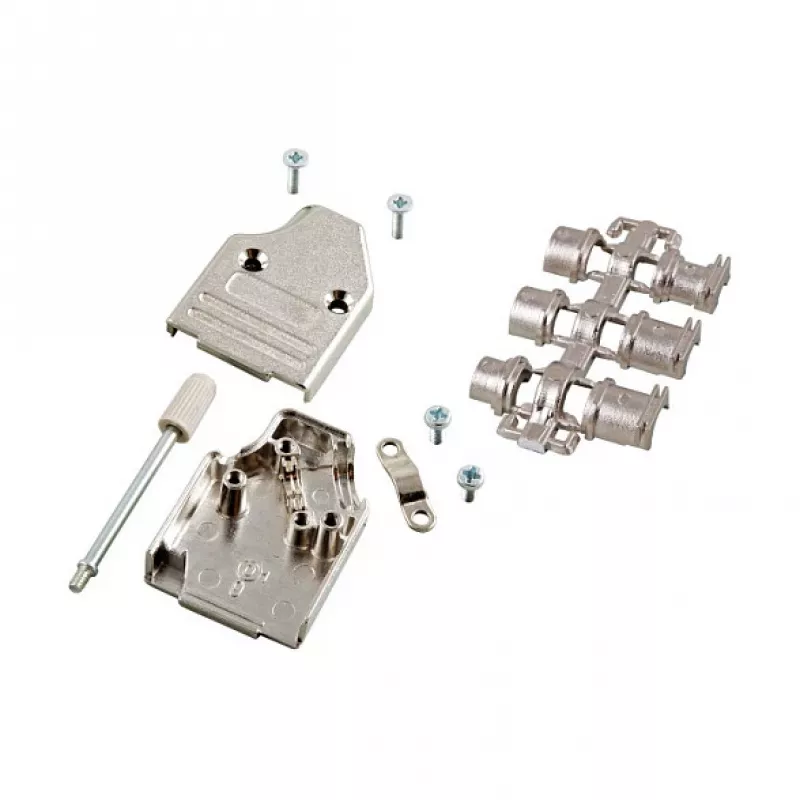

Built from rugged zinc die-cast, this 25-pin D-Sub hood delivers full EMI/RFI shielding and a 35° cable exit for clean, low-profile routing in tight industrial spaces. The two-part screw-together design locks securely, while the integrated strain relief grips cables up to 10 mm to prevent pull-out damage.

Overview

The EFB Elektronik Full Metal Hood 35° E-MHDM35 25-K is a professional-grade D-Sub hood engineered for demanding environments. Its full metal construction ensures excellent shielding against electromagnetic and radio frequency interference, making it ideal for industrial automation, IT, and data communication systems. The 35° angled cable exit allows for neat cable management even where space is limited, and the screw-lock mounting (UNC 4-40) guarantees a stable connection to standard D-Sub 25-pin connectors.

What stands out

• Full zinc die-cast housing for superior durability and shielding effectiveness.
• 35° cable exit angle optimizes cable routing in confined installations.
• Integrated cable strain relief protects the cable from pull forces, extending connection life.
• Two-part screw-together design ensures a secure fit and easy assembly.
• Compatible with all standard D-Sub 25-pin male and female connectors.
• RoHS compliant and rated for operation from -20°C to +85°C.

Technical details

• Product Type: D-Sub Hood
• Connector Size: 25-pin
• Cable Exit Angle: 35°
• Material: Zinc Die-cast (Full Metal)
• Shielding: EMI/RFI Shielded
• Housing Type: Two-part, Screw-together
• Cable Strain Relief: Integrated
• Cable Entry Diameter: Up to 10 mm
• Color: Metallic Grey
• Mounting: Screw-lock (UNC 4-40)
• Compatibility: Standard D-Sub 25-pin male/female connectors
• Application: Industrial, IT, Data Communication
• RoHS Compliance: Yes
• Operating Temperature: -20°C to +85°C

Our verdict

For reliable shielded connections in harsh or space-constrained environments, this full metal hood is a top choice. Its robust construction and thoughtful design details ensure long-term performance and easy installation.
