EFB Elektronik Cavo coassiale RG174 U, 50 Ohm, nero

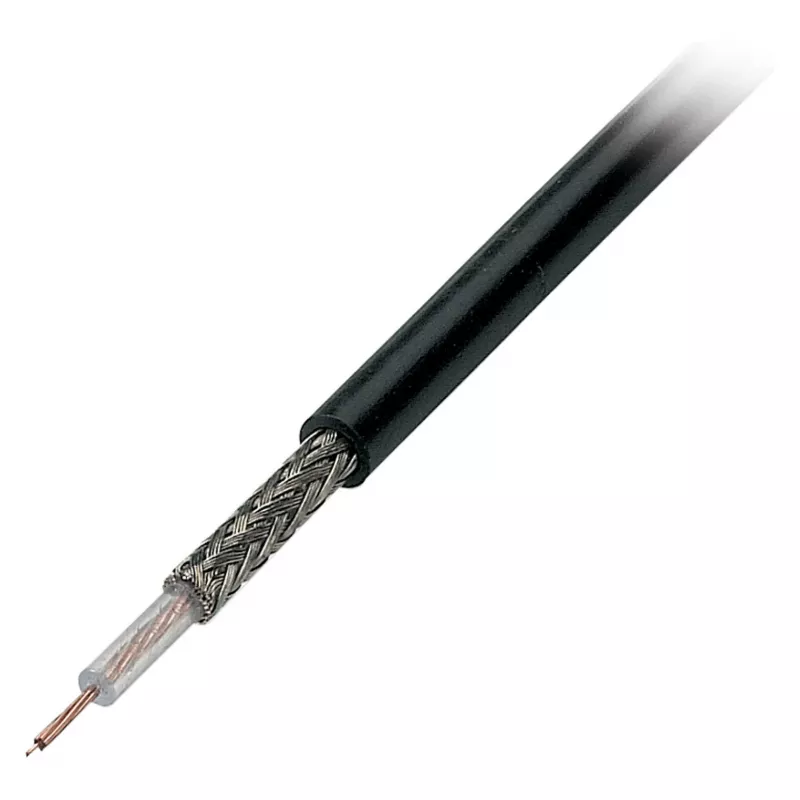

The EFB Elektronik RG174 U coaxial cable is a high-quality, flexible 50 Ohm cable designed for a wide range of RF applications. With its tinned copper conductor and braided shield, it offers reliable performance and durability. This cable is ideal for connecting antennas, test equipment, and other RF devices where low loss and consistent impedance are critical.

Advantages

This RG174 U cable provides excellent signal integrity with low attenuation, making it suitable for both indoor and outdoor installations. Its PVC jacket offers good protection against environmental factors, while the stranded inner conductor ensures flexibility for tight routing.

Suitable for

• RF and microwave connections
• Antenna feeds and patch cables
• Test and measurement setups
• Wireless communication systems

Key specifications

• Cable type: RG174 U
• Impedance: 50 Ohm
• Colour: Black
• Inner conductor: Tinned copper, 7 x 0.16 mm stranded
• Dielectric: Polyethylene (PE), 1.55 mm diameter
• Outer conductor: Tinned copper braid, 90% coverage
• Jacket: PVC, 2.8 mm diameter
• Capacitance: 100 pF/m
• Velocity of propagation: 66%
• Operating temperature: -30°C to +70°C
• Voltage rating: 300 V
• Minimum bending radius: 15 mm
• Attenuation @ 100 MHz: 30.0 dB/100m
• Attenuation @ 1000 MHz: 110.0 dB/100m

Recommendations

For optimal performance, use with appropriate connectors and ensure proper termination. This cable is sold by the meter; please specify required length when ordering.
