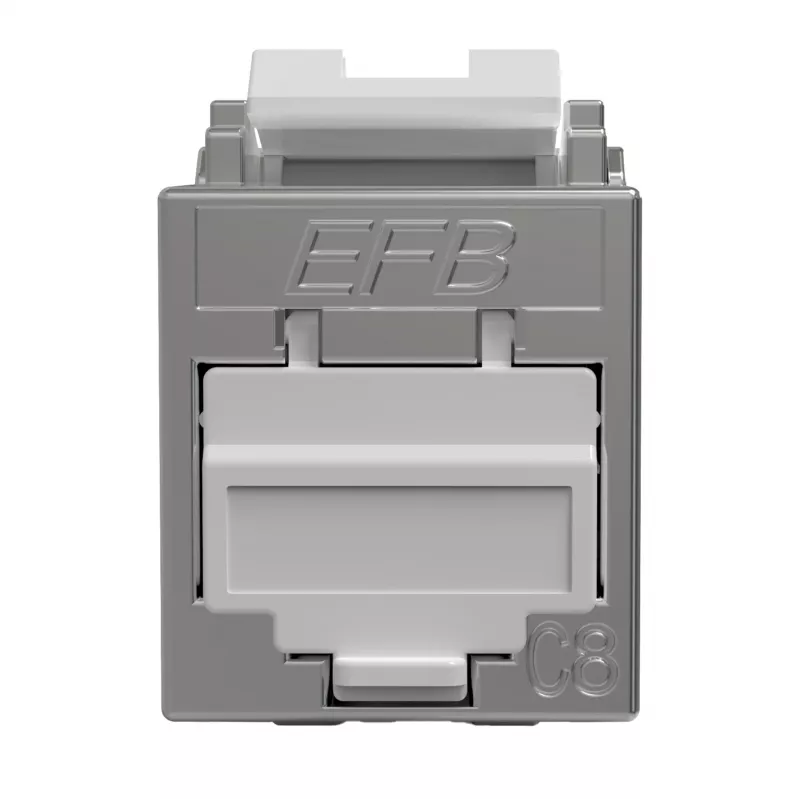

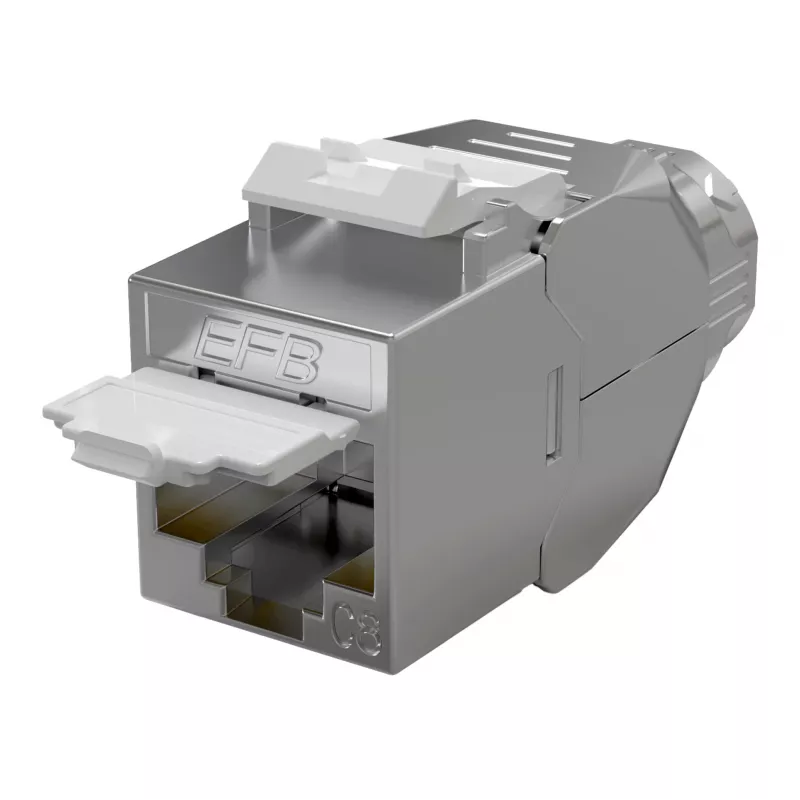

EFB Elektronik E-20096 modulo keystone RJ45 Slimline Cat.8.1 2000MHz schermato

With a frequency bandwidth of 2000 MHz and support for 25GBASE-T/40GBASE-T Ethernet, this RJ45 Keystone Slimline module delivers the performance required for high-speed data centers and enterprise networks. Its slimline zinc die-cast housing and tool-free IDC termination make installation fast and reliable, while gold-plated contacts ensure long-term signal integrity.

Overview

The EFB Elektronik E-20096 is a Cat.8.1 (Class I) shielded RJ45 keystone module designed for demanding network infrastructures. It complies with ISO/IEC 11801-1, EN 50173-1, and TIA/EIA-568-C.2 standards, guaranteeing interoperability and performance. The module supports Power over Ethernet up to 4PPoE (PoE++), enabling efficient power delivery to connected devices.

What stands out

• 2000 MHz bandwidth for 25G/40G Ethernet applications

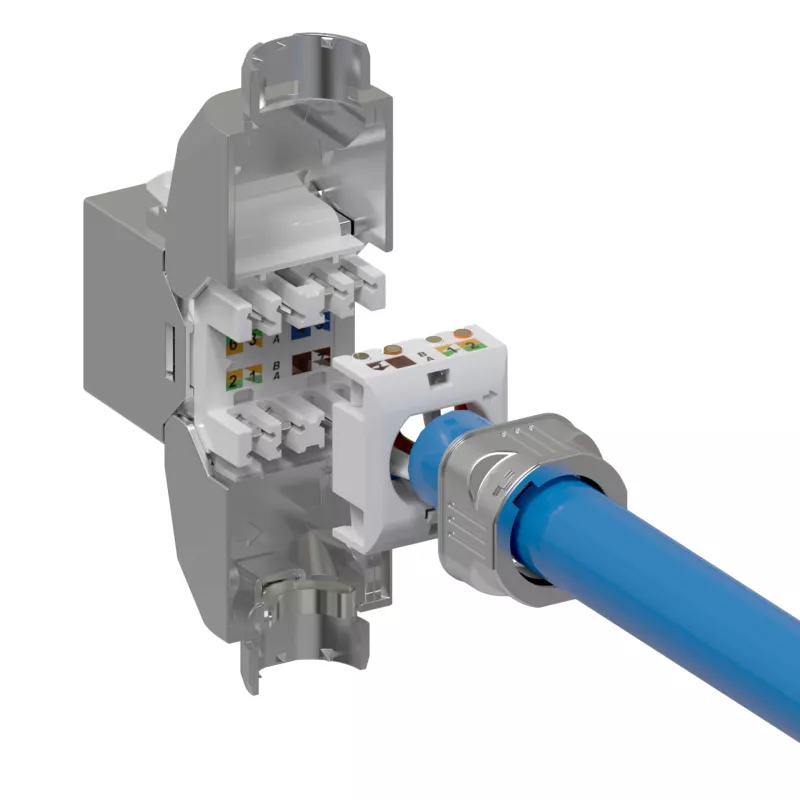

• Tool-free IDC termination compatible with LSA tools

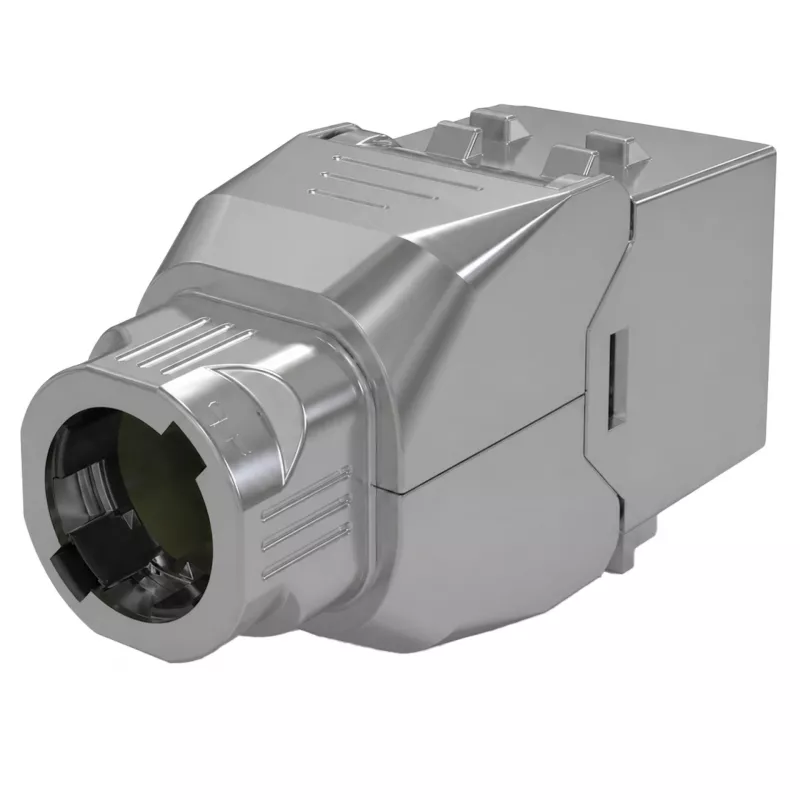

• Zinc die-cast housing for excellent shielding and durability
• Gold-plated contacts (50µ) for corrosion resistance and low contact resistance
• Supports PoE, PoE+, and 4PPoE (PoE++)
• Slimline design fits standard keystone cut-outs

Technical details

• Network Category: Cat.8.1 (Class I)
• Connector Type: RJ45 (8P8C), shielded (STP/FTP)
• Termination: Tool-free IDC, LSA compatible
• Wire Gauge: AWG 22-24 (solid and stranded)
• Insertion Cycles: > 750
• IDC Cycles: > 200
• Insulation Resistance: > 500 MΩ
• Dielectric Strength: 1000 VDC (RMS, 60 Hz, 1 min)
• Operating Temperature: -10°C to +60°C
• Colour: Silver/Metallic

Our verdict

The EFB Elektronik E-20096 combines high-speed performance with robust construction, making it an excellent choice for professionals seeking a reliable Cat.8.1 keystone module for 25G/40G networks and PoE++ applications.
