EFB-Elektronik resistenza di terminazione BNC 50 Ohm (connettore maschio) - 52524.1

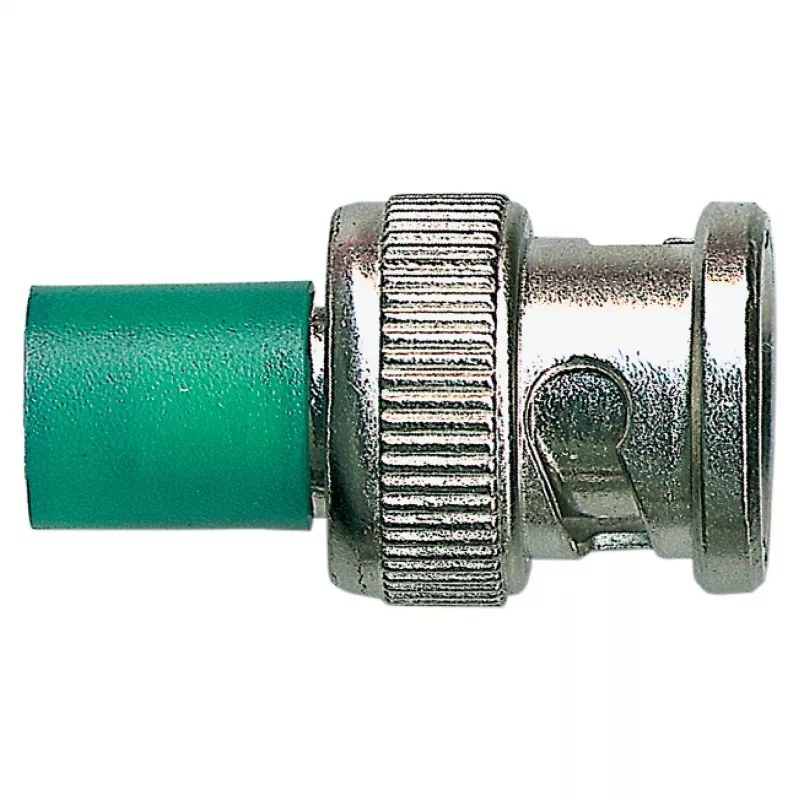

The EFB-Elektronik 52524.1 is a high-quality 50 Ohm BNC termination resistor designed for impedance matching and signal termination in RF and data communication networks. This male BNC plug terminator ensures minimal signal reflection and maintains system integrity up to 1 GHz.

Advantages

Precision 50 Ohm impedance with ±5% tolerance ensures accurate termination. Gold-plated center contact and nickel-plated brass body provide excellent conductivity and corrosion resistance. PTFE insulator guarantees stable performance over a wide temperature range (-55°C to +85°C). Rated for 500 mating cycles, offering long-term reliability.

Suitable for

• Terminating unused BNC ports on network equipment, patch panels, and test instruments
• Impedance matching in 50 Ohm RF systems
• Signal termination in video surveillance, broadcast, and telecommunications

Key specifications

• Impedance: 50 Ohm
• Connector: BNC Male (Plug)
• Frequency Range: DC to 1 GHz
• VSWR: ≤1.2:1 (DC-1 GHz)
• Power Rating: 1 W
• Body Material: Brass, Nickel Plated
• Center Contact: Brass, Gold Plated
• Insulator: PTFE
• Operating Temperature: -55°C to +85°C
• Dielectric Withstanding Voltage: 500 V RMS
• Insulation Resistance: ≥5000 MOhm
• Durability: 500 cycles

Recommendations

For optimal signal integrity, always terminate unused BNC ports with a 50 Ohm terminator. This EFB-Elektronik terminator meets IEC 60169-8 standards and is ideal for professional network and RF applications.
