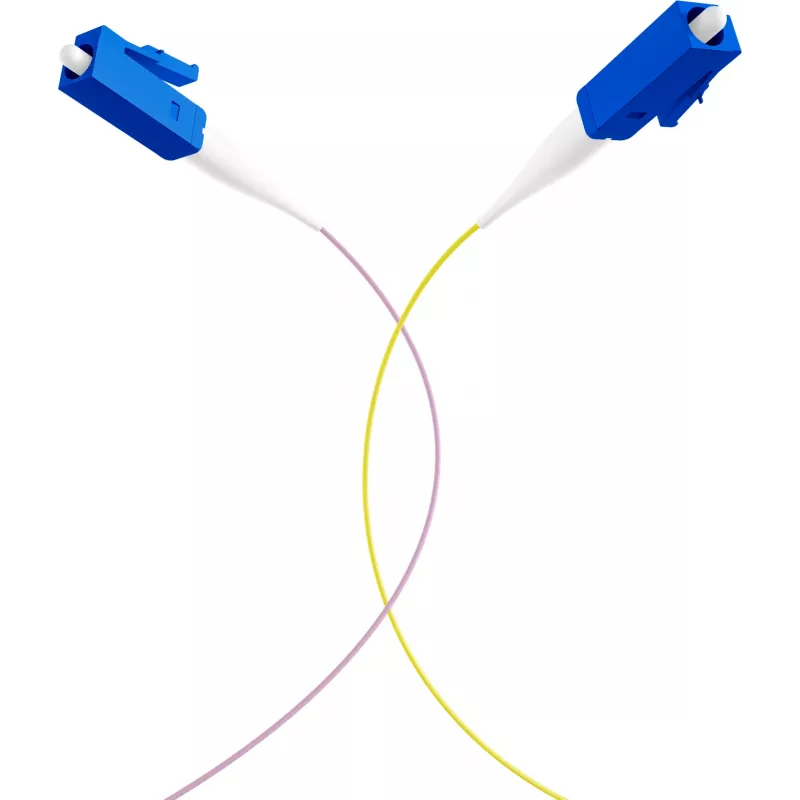

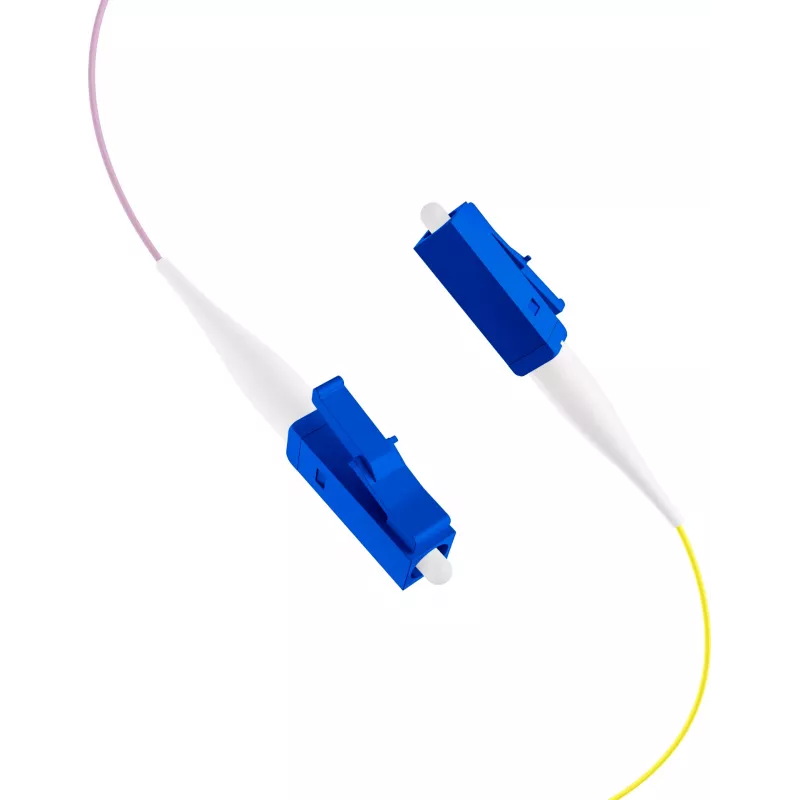

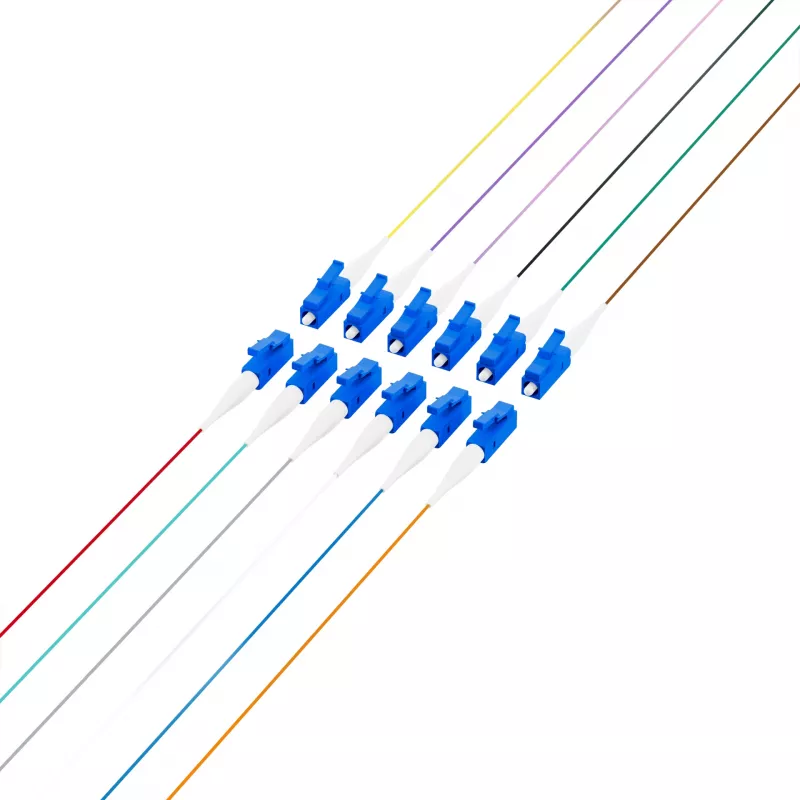

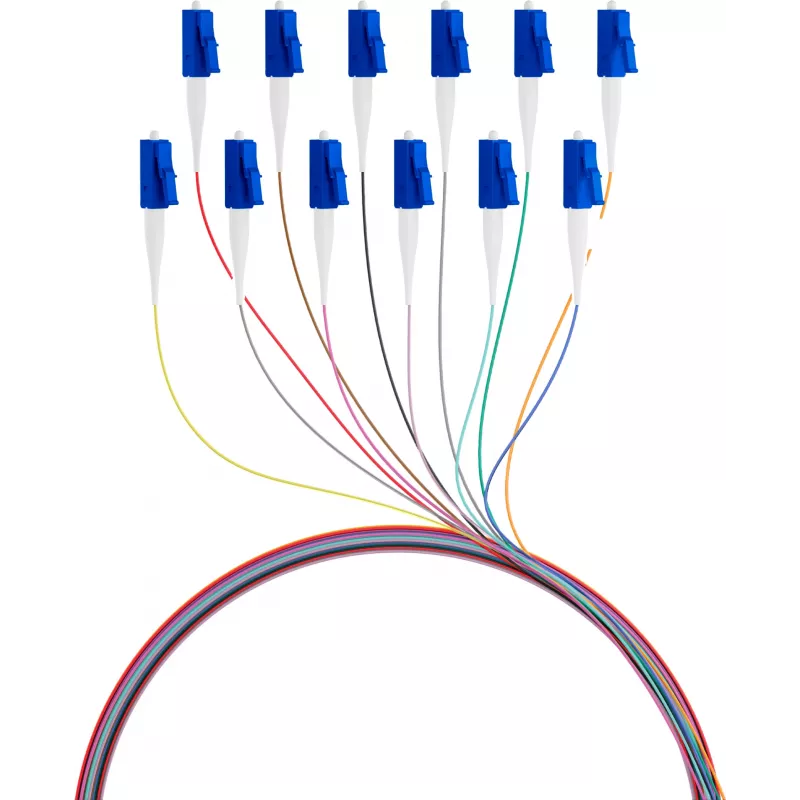

EFB Elektronik Fibre Pigtail LC 9/125 OS2 set 12 colori 2m - set cavo/adattatore - Singlemode o Monomode

The EFB Elektronik Fibre Pigtail LC 9/125 OS2 12-Colour Set 2m is a high-quality cable/adapter set designed for single-mode fiber optic networks. This set includes 12 individually color-coded pigtails, each 2 meters long, with LC connectors and 9/125 µm core/cladding diameter, ensuring reliable and efficient signal transmission in data centers, telecommunications, LAN, and FTTx applications.

Advantages

Pre-terminated with LC UPC connectors for low insertion loss and high return loss. Color coding according to DIN VDE 0888 / IEC 60304-1 simplifies identification and organization. Tight-buffered, LSZH jacket provides durability and safety in indoor environments.

Suitable for

• Data centers requiring high-density fiber connections
• Telecommunications networks for long-distance single-mode transmission
• Local area networks (LAN) with fiber backbone
• FTTx deployments for last-mile connectivity

Key specifications

• Fiber Type: Single-mode OS2
• Core/Cladding Diameter: 9/125 µm
• Connector Type: LC UPC
• Number of Fibers: 12
• Pigtail Length: 2 m
• Color Coding: 12-color set
• Cable Diameter: 0.9 mm
• Jacket Material: LSZH
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH, IEC 61753-1, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure proper cleaning of connectors before use. This pigtail set is ideal for splicing to distribution cables or patch panels in structured cabling systems.
