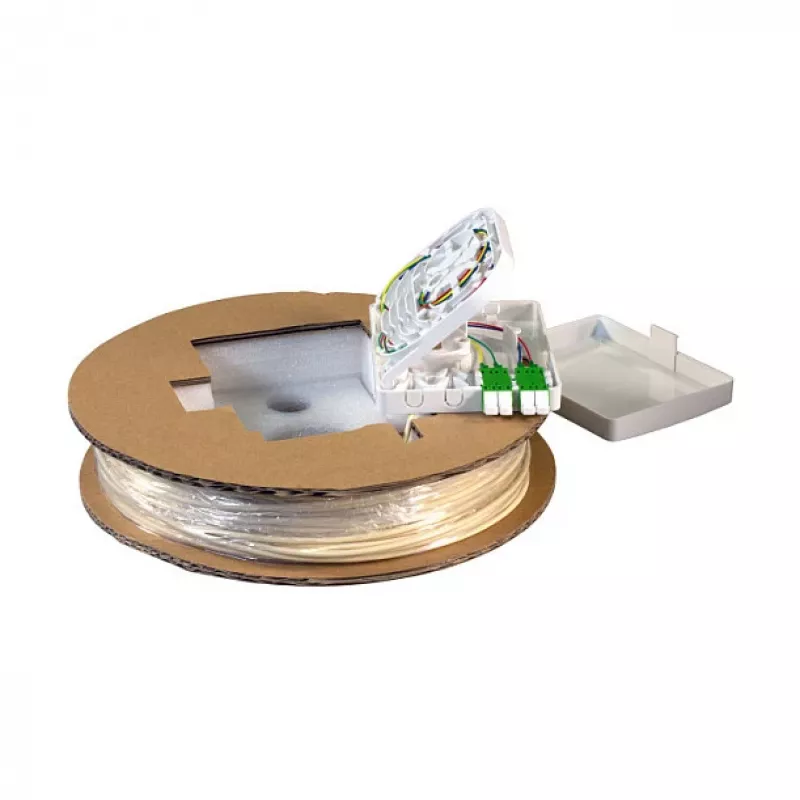

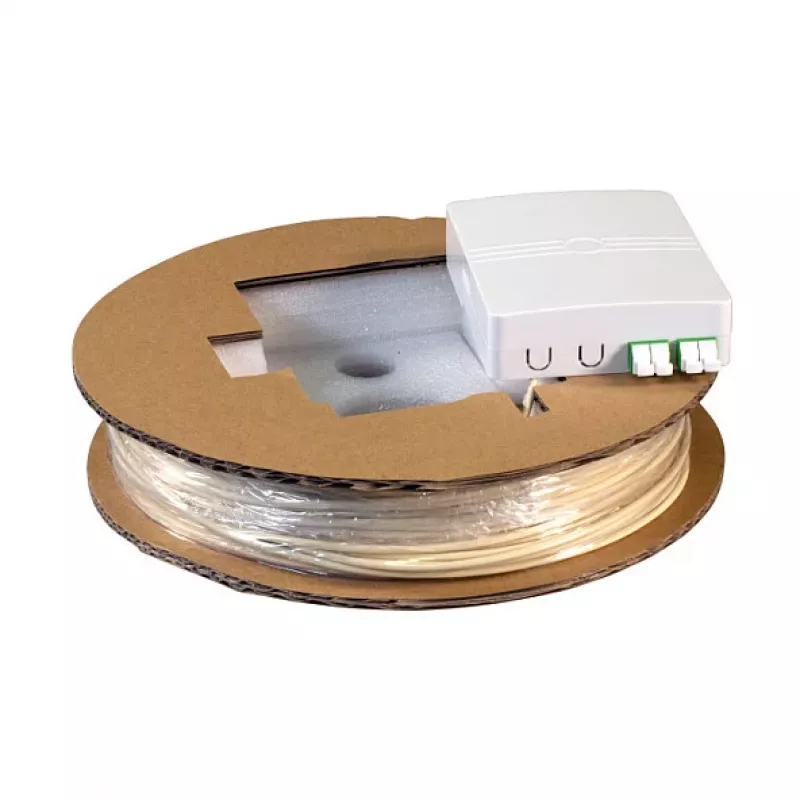

EFB Elektronik FTTX Compact Box, premontata, 2xLC/APC Duplex, G.657.A2, 60m

The EFB Elektronik FTTX Compact Box is a pre-assembled, wall-mountable fiber optic termination box designed for FTTH, FTTB, FTTO, and FTTX networks. It features 2xLC/APC duplex connectors and 60 meters of bend-insensitive single-mode fiber (G.657.A2), ensuring reliable high-speed data transmission in compact spaces.

Advantages

This pre-terminated solution saves installation time and reduces on-site splicing errors. The compact ABS housing with IP54 protection is ideal for indoor or outdoor use, while the bend-insensitive fiber allows tight bends without signal loss. Low insertion loss (≤0.3 dB) and high return loss (≥60 dB) guarantee excellent optical performance.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTB (Fiber to the Building) networks
• FTTO (Fiber to the Office) deployments
• FTTX infrastructure projects requiring a compact, pre-terminated solution

Key specifications

• Product Type: FTTX Compact Box, pre-assembled
• Fiber Optic Cable Length: 60 m
• Fiber Type: Single-mode, G.657.A2 (bend-insensitive)
• Connector: 2x LC/APC Duplex
• Number of Fibers: 4
• Housing Material: ABS Plastic, white
• Protection Class: IP54
• Operating Temperature: -20°C to +70°C
• Insertion Loss (Max.): 0.3 dB
• Return Loss (Min.): 60 dB
• Splice Capacity: Up to 4 splices
• Mounting: Wall-mountable

Recommendations

For optimal performance, use with matching LC/APC patch cables and ensure proper cable management. This box is ideal for last-mile fiber connections where space and reliability are critical.
