EFB Elektronik IP68DFKRJ456AWP connettore per cavi 2x RJ-45 nero

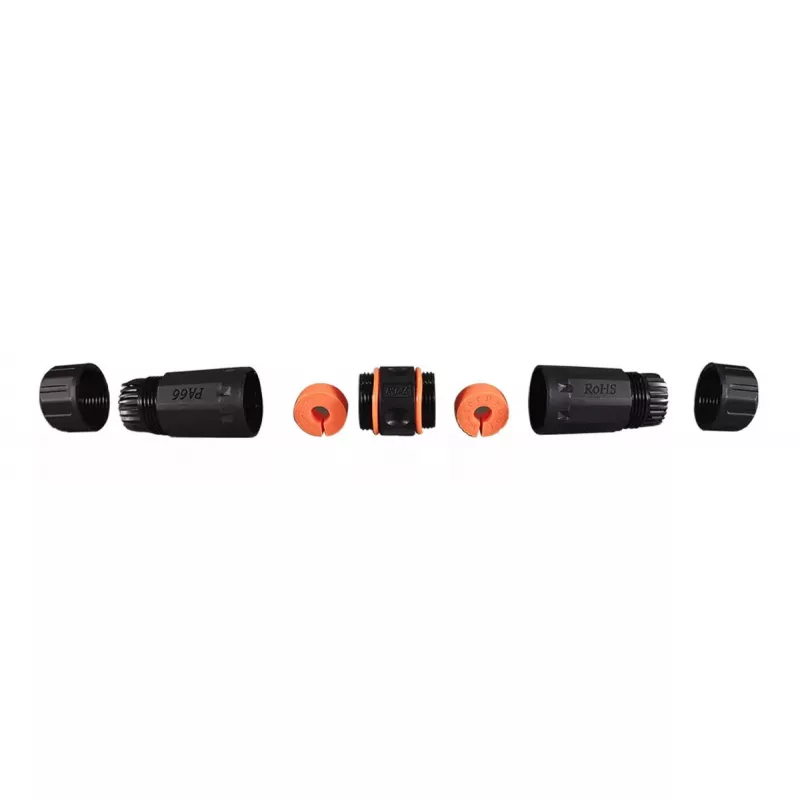

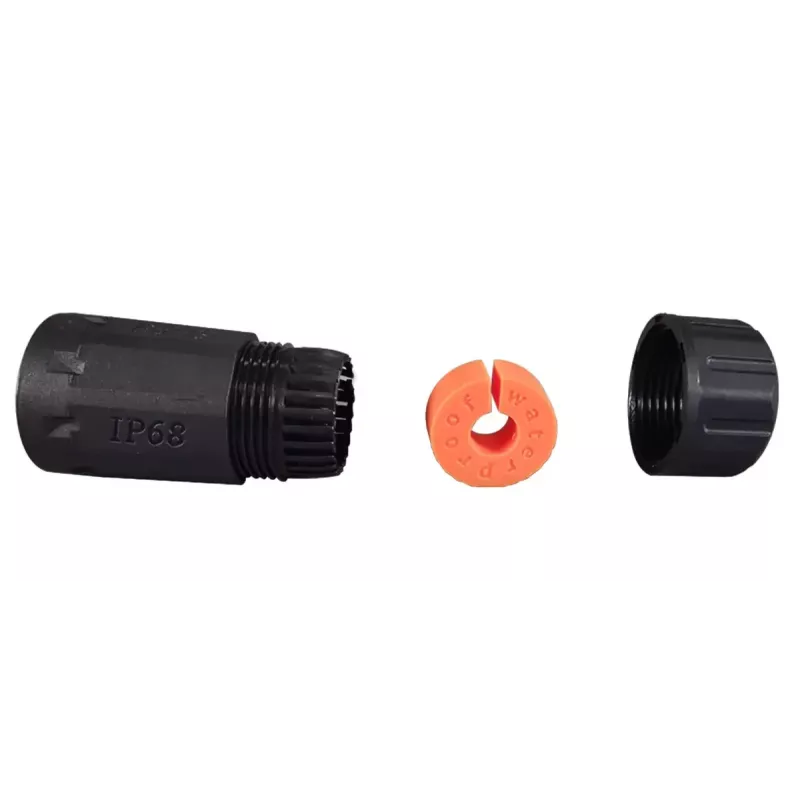

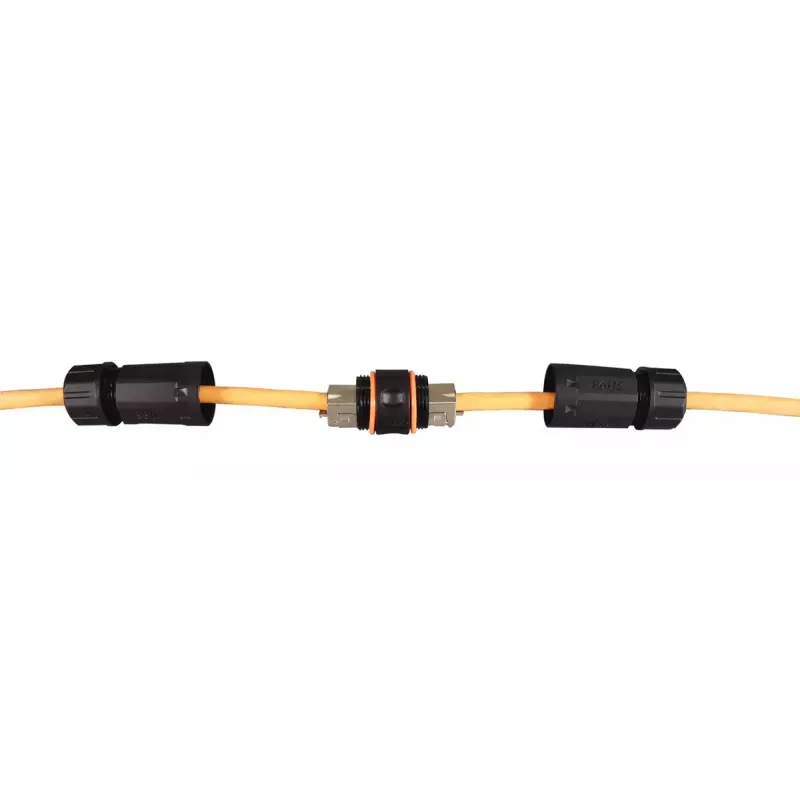

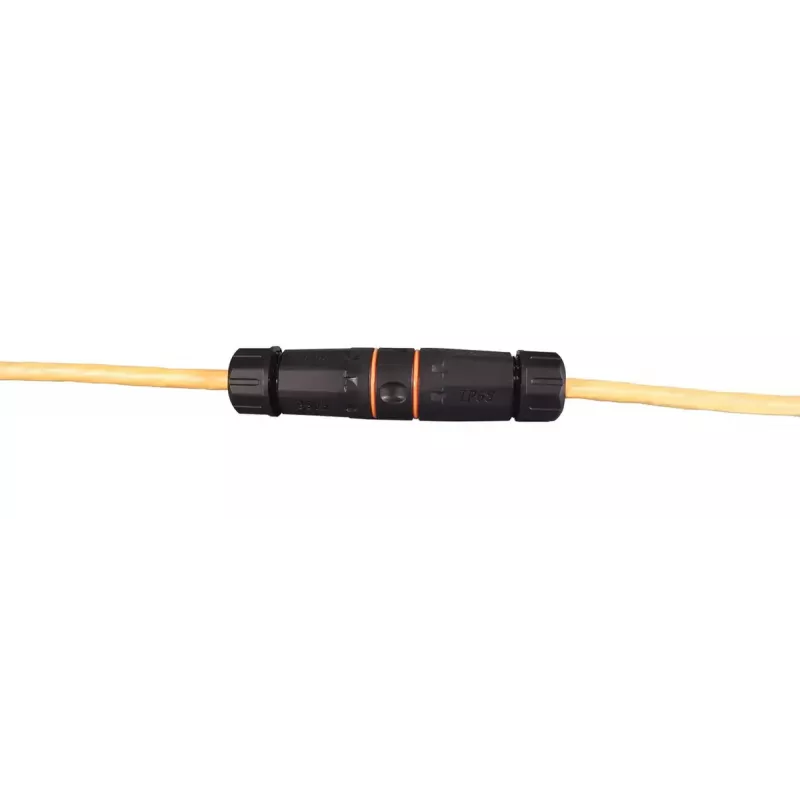

The EFB Elektronik IP68DFKRJ456AWP is an IP68-rated outdoor cable connector with two integrated Cat.6A RJ45 male jacks. It is engineered for direct burial and harsh-environment installations, supporting data transmission rates up to 10 Gbit/s and frequency performance to 500 MHz (ISO/IEC 11801 Class EA). The compact housing in black (28 mm width, 121.5 mm depth) provides sealed protection against dust and water for reliable network connections.

Advantages

The connector provides IP68 protection for outdoor and underground use, integrated Cat.6A RJ45 interfaces for straightforward plug-and-play connection, and support for high-speed data transfer up to 10 Gbit/s and 500 MHz. Its compact dimensions and robust construction simplify installation in confined or exposed locations while maintaining standardized performance (ISO/IEC 11801 Class EA).

Suitable for

• Outdoor Ethernet links requiring weatherproof connections
• Direct burial cable runs and underground installations
• Industrial or roadside network points exposed to dust and moisture
• High-speed network segments up to 10 Gbit/s (Cat.6A/Class EA)

Key specifications

• Model: IP68DFKRJ456AWP
• Brand: EFB Elektronik
• Connectors: 2 × RJ-45 (Cat.6A, male)
• Protection rating: IP68 (dust-tight, water immersion)
• Data rate: up to 10 Gbit/s
• Frequency: up to 500 MHz (ISO/IEC 11801 Class EA)
• Dimensions: width 28 mm, depth 121.5 mm
• Colour: Black
• MPN: IP68DFKRJ456AWP
• EAN: 4049759261689

How to use

Prepare the Ethernet cables according to standard termination practices for Cat.6A. Open the connector housing, insert and secure each cable into the integrated RJ45 jacks, then close the housing to engage the IP68 sealing. Ensure all seals and gaskets are correctly positioned before burying or exposing the connector to the elements. Verify network link and data throughput after installation.

Recommendations

Install on compatible Cat.6A-rated cabling and avoid mechanical strain on the connector; periodically inspect seals if installed in permanently buried or heavily exposed locations to maintain IP68 integrity.
