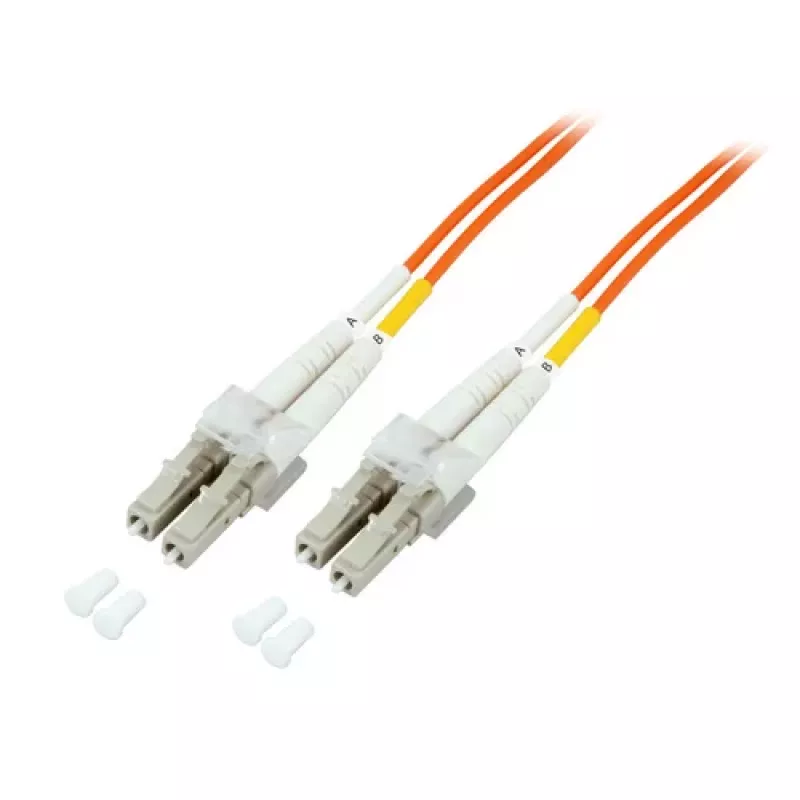

EFB Elektronik Jumper duplex LC-LC 50/125µ OM2 LSZH arancione 2.0mm 15m

The EFB Elektronik Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for reliable data transmission in networking environments. With OM2 multimode fiber, LSZH jacket, and durable ceramic ferrules, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This cable offers excellent signal integrity with typical insertion loss <0.3 dB and return loss >30 dB. The LSZH jacket provides safety in confined spaces by emitting low smoke and no halogen in case of fire. The 2.0mm diameter per strand makes it flexible and easy to route.

Suitable for

• Data networking and telecommunications
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Fiber optic patch panels and network equipment connections

Key specifications

• Cable type: Fiber Optic Patch Cable, Duplex Jumper
• Fiber mode: Multimode, OM2
• Core/Cladding: 50/125 µm
• Connectors: LC to LC, Ceramic ferrule
• Length: 15 m
• Jacket: LSZH, Orange, 2.0mm diameter
• Insertion loss: <0.3 dB typical
• Return loss: >30 dB typical
• RoHS compliant

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed data center and enterprise network applications.
