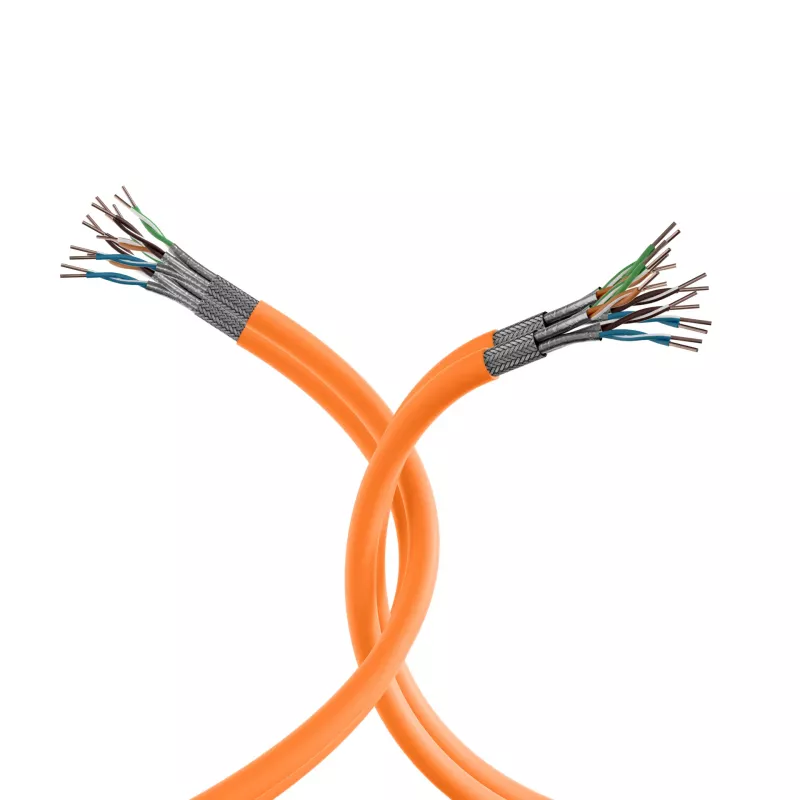

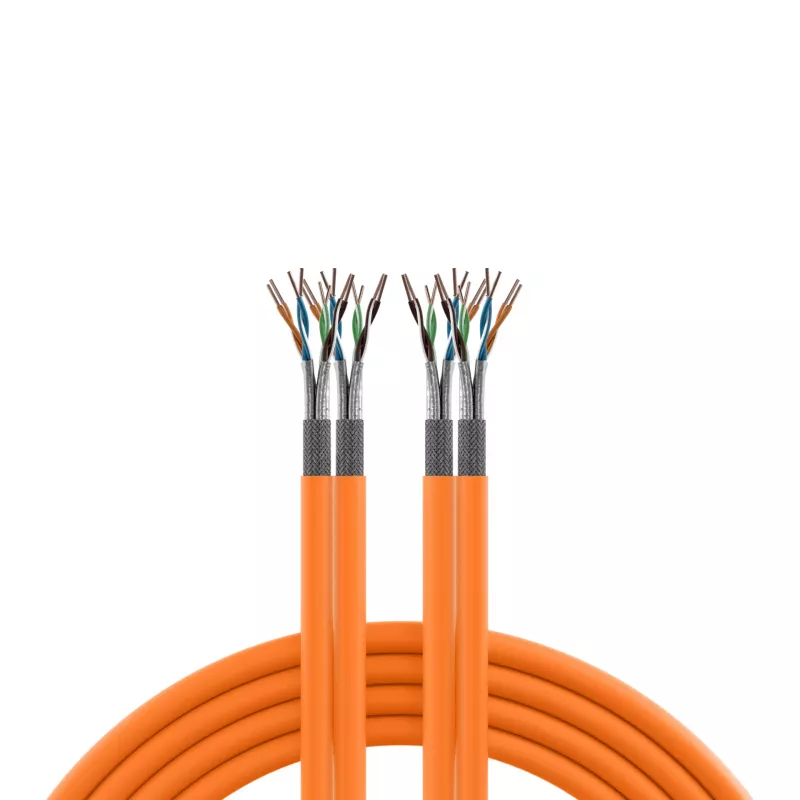

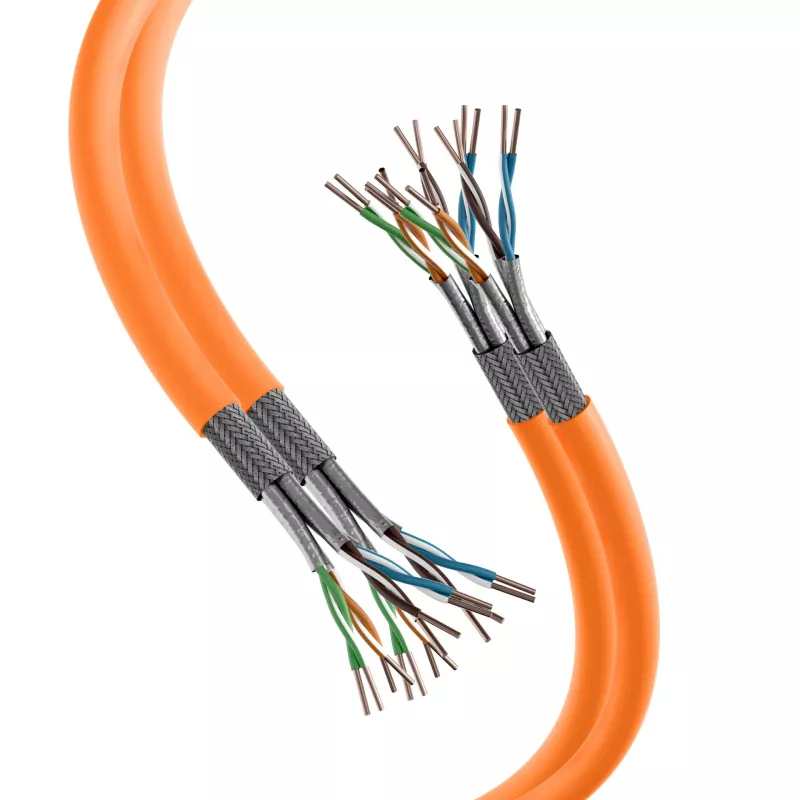

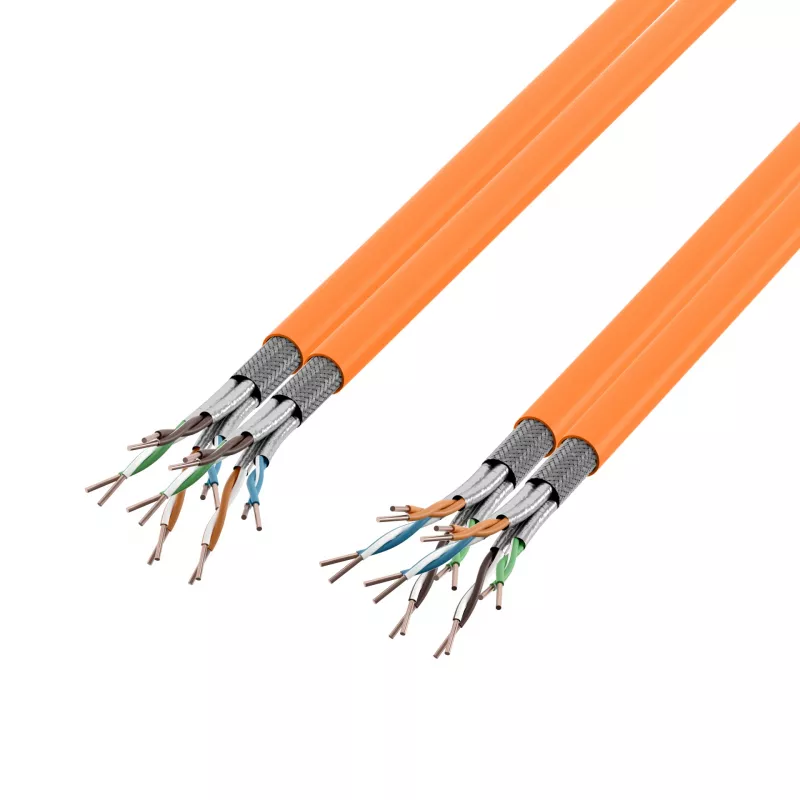

EFB Elektronik MK7100DX.500-CPR Cat7a S/FTP LSZH Cavo dati 500 m arancione

The EFB Elektronik MK7100DX.500-CPR is a high-performance Cat7a data cable designed for demanding network infrastructures. With a length of 500 meters, S/FTP shielding, and LSZH jacket, it ensures reliable, high-speed data transmission while meeting strict fire safety standards.

Advantages

This cable offers exceptional performance with frequencies up to 1200 MHz, supporting 10 Gigabit Ethernet. The S/FTP (PiMF) shielding provides excellent protection against electromagnetic interference, ensuring signal integrity. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for public and commercial buildings. Solid bare copper conductors (AWG 23/1) guarantee low resistance and long-term reliability.

Suitable for

• Data centers and server rooms
• Enterprise network installations
• Industrial Ethernet applications
• Structured cabling systems requiring CPR compliance

Key specifications

• Cable Category: Cat7a
• Shielding: S/FTP (PiMF)
• Length: 500 m
• Conductor: Bare copper, AWG 23/1 solid
• Number of pairs: 4
• Jacket: LSZH, Orange (RAL 2003)
• Frequency range: Up to 1200 MHz
• Impedance: 100 Ohm
• Outer diameter: approx. 7.2 mm
• CPR classification: Dca-s2, d2, a1
• Standards: ISO/IEC 11801, EN 50173, IEC 61156-5, EN 50575
• Halogen-free: Yes (IEC 60754-2)
• Flame retardant: Yes (IEC 60332-1-2, IEC 60332-3-24)
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C

Recommendations

For optimal performance, use with compatible Cat7a connectors and ensure proper grounding of the shielding. This cable is suitable for permanent installations where high bandwidth and future-proofing are required.
