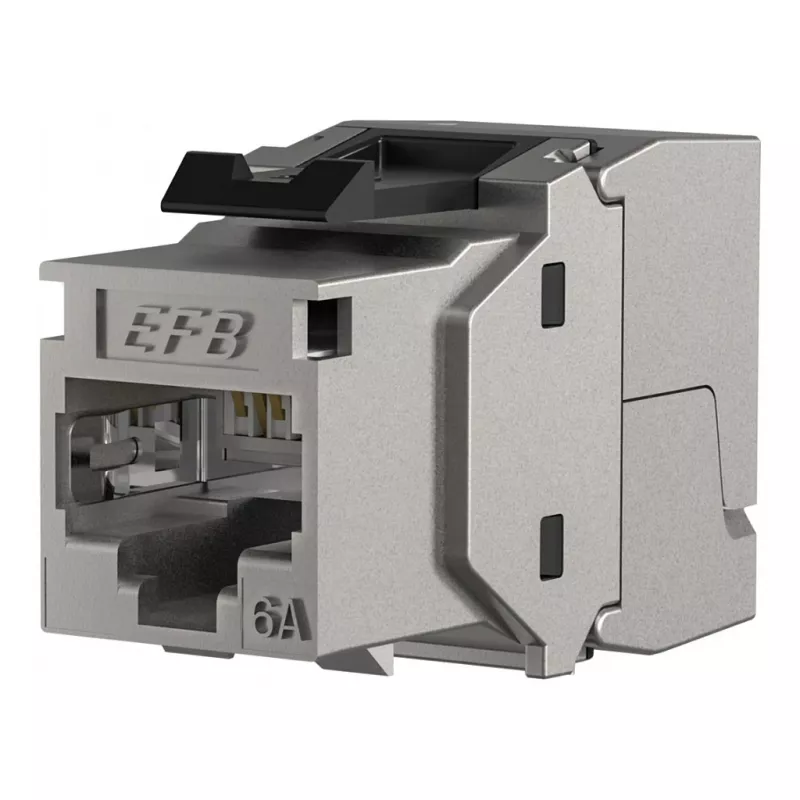

EFB Elektronik modulo keystone RJ45 STP Cat.6A 500MHz Component Certified 24 set

The EFB Elektronik RJ45 Keystone STP Cat.6A 500MHz Component Certified 24-Set is a high-performance keystone jack kit designed for professional network installations. This set includes 24 shielded keystone jacks, each certified as a component for Category 6A performance, ensuring reliable 10 Gigabit Ethernet connectivity. The STP (Shielded Twisted Pair) design provides excellent protection against electromagnetic interference, making it ideal for demanding environments.

Advantages

Component certified for Cat.6A ensures full compliance with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards. Tool-free IDC termination simplifies installation, saving time and reducing errors. Gold-plated contacts guarantee reliable connections over 750 insertion cycles. Supports PoE, PoE+, and PoE++ for power over Ethernet applications.

Suitable for

• Data centers and server rooms requiring high-speed, shielded connections
• Enterprise networks with 10GBase-T infrastructure
• Industrial environments with high EMI
• Structured cabling systems using keystone patch panels and wall outlets

Key specifications

• Connector Type: RJ45
• Module Type: Keystone Jack
• Shielding: STP (Shielded Twisted Pair)
• Performance Category: Cat.6A (Category 6A)
• Bandwidth/Frequency: 500 MHz
• Data Rate Support: Up to 10 Gigabit Ethernet (10GBase-T)
• Certification: Component Certified (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Number of Units: 24 pieces
• Termination Type: Tool-free IDC
• Wire Gauge Support: AWG 22-24 (solid and stranded)
• Contact Plating: Gold-plated
• Housing Material: Zinc Die-cast
• Wiring Scheme: TIA-568A/B color coded
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Insertion Cycles: >750
• Operating Temperature: -10°C to +60°C
• Compatibility: Standard Keystone patch panels and wall outlets

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and compatible keystone patch panels. Ensure proper grounding of the shielded system to maximize EMI protection.
