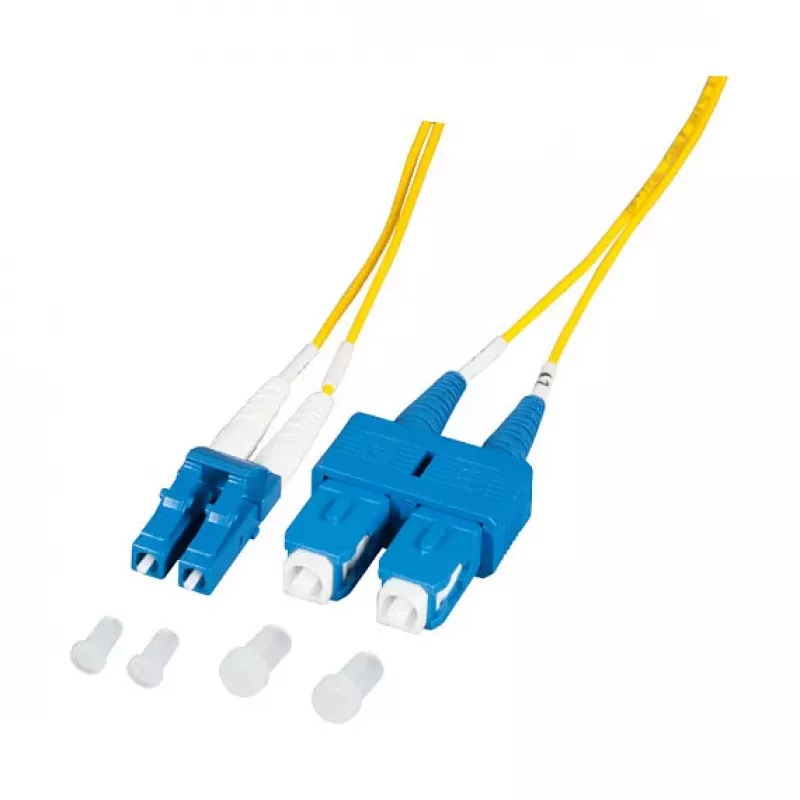

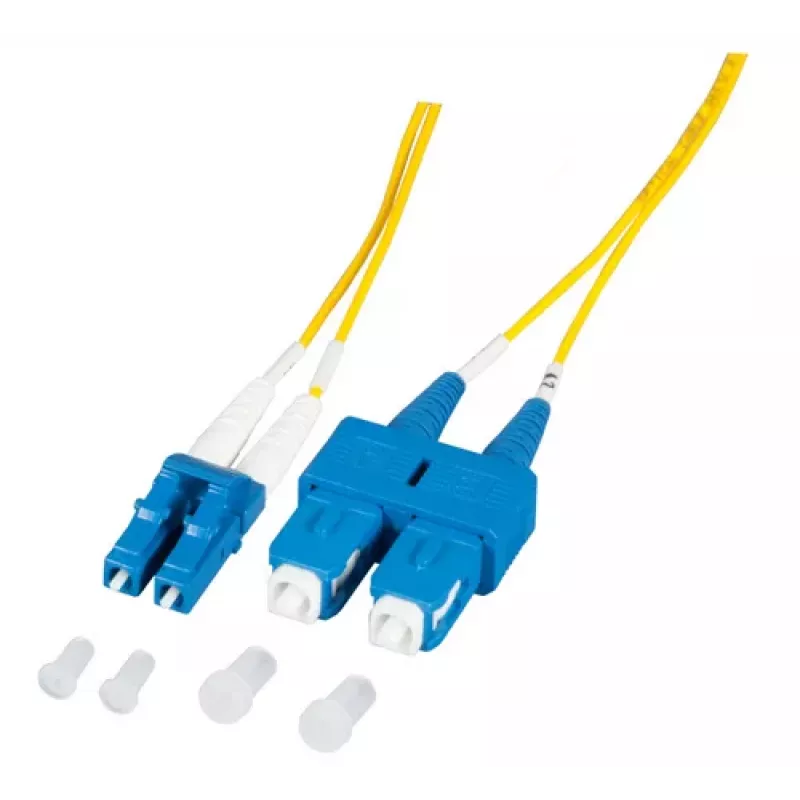

EFB Elektronik O0360.1-1.2 Cavo patch in fibra ottica 1 m LC Duplex su SC Duplex OS2 Singlemode giallo

The EFB Elektronik O0360.1-1.2 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers and enterprise networks. With a length of 1 meter, it features LC duplex to SC duplex connectors and OS2 fiber class, ensuring low attenuation and high performance for Gigabit and 10 Gigabit Ethernet applications.

Advantages

This cable offers excellent signal integrity with low attenuation (≤0.4 dB/km at 1310nm, ≤0.3 dB/km at 1550nm) and is compliant with IEC 60793-2-50 type B6.2. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the yellow color provides easy identification.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Fibre Channel storage networks
• Telecommunications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable Length: 1 m
• Number of Fibers: 2
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Color: Yellow
• Cable Structure: Duplex
• Attenuation at 1310nm: ≤ 0.4 dB/km
• Attenuation at 1550nm: ≤ 0.3 dB/km
• Standards Compliance: IEC 60793-2-50 type B6.2
• Application: Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel, Data Center

Recommendations

For optimal performance, pair this cable with compatible single-mode SFP modules. Ensure proper handling to avoid damage to the fiber ends.
