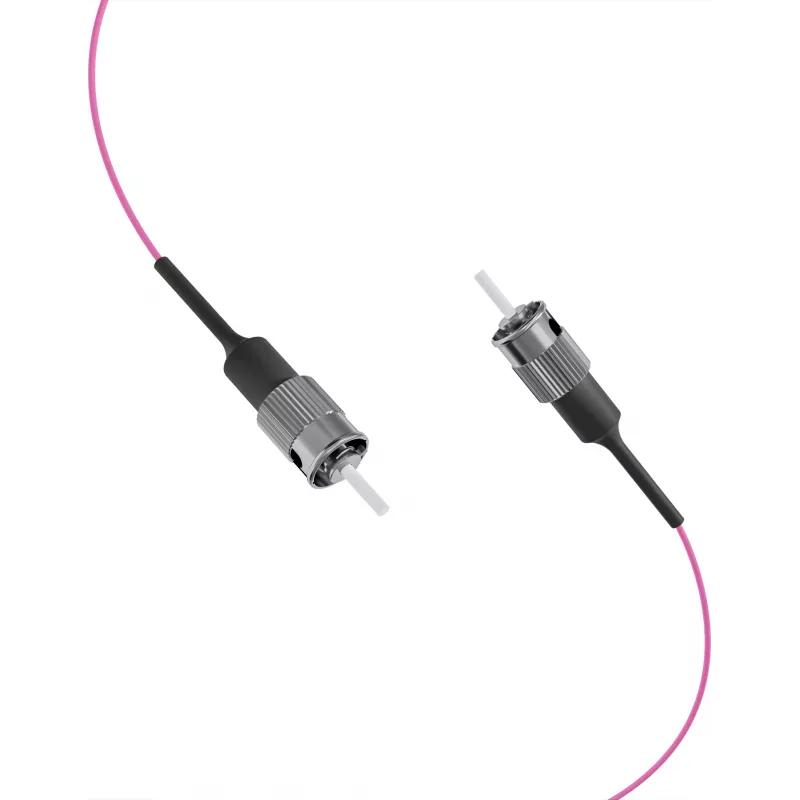

EFB Elektronik Pigtail in fibra ST 50/125 µm OM4 Erika Violet, 2 m

The EFB Elektronik Fiber Pigtail ST 50/125 µm OM4 Erika Violet, 2 m is a high-quality fiber optic pigtail designed for reliable and efficient network connections. This pigtail features a pre-terminated ST connector on one end and a bare fiber on the other, making it ideal for splicing into fiber optic cables or patch panels. With OM4 multimode fiber, it supports high-bandwidth applications over short to medium distances.

Advantages

This pigtail offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable data transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces or areas with strict fire safety regulations. The Erika violet color allows for easy identification and organization within your network infrastructure.

Suitable for

• Data centers and server rooms requiring high-speed multimode connections
• Fiber optic network installations where splicing is needed
• Telecommunications and enterprise networks
• Applications demanding OM4 performance for 10/40/100 Gigabit Ethernet

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Type: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Connector: ST (End 1), Bare Fiber (End 2)
• Number of Fibers: 1
• Cable Length: 2 m
• Jacket Color: Erika Violet
• Jacket Material: LSZH
• Polishing Type: PC
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Attenuation at 850 nm: ≤ 3.0 dB/km
• Attenuation at 1300 nm: ≤ 1.0 dB/km
• Bandwidth at 850 nm: 4700 MHz·km (EMB)
• Bandwidth at 1300 nm: 500 MHz·km (EMB)
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD

Recommendations

For optimal performance, use this pigtail with OM4-rated components and ensure proper cleaning of connectors before installation. Suitable for indoor applications where LSZH jacket is required.
