EFB Elektronik presa da incasso IP67 M25 RJ45 Cat.6A E-20070 per cavi Cat.5/6/7

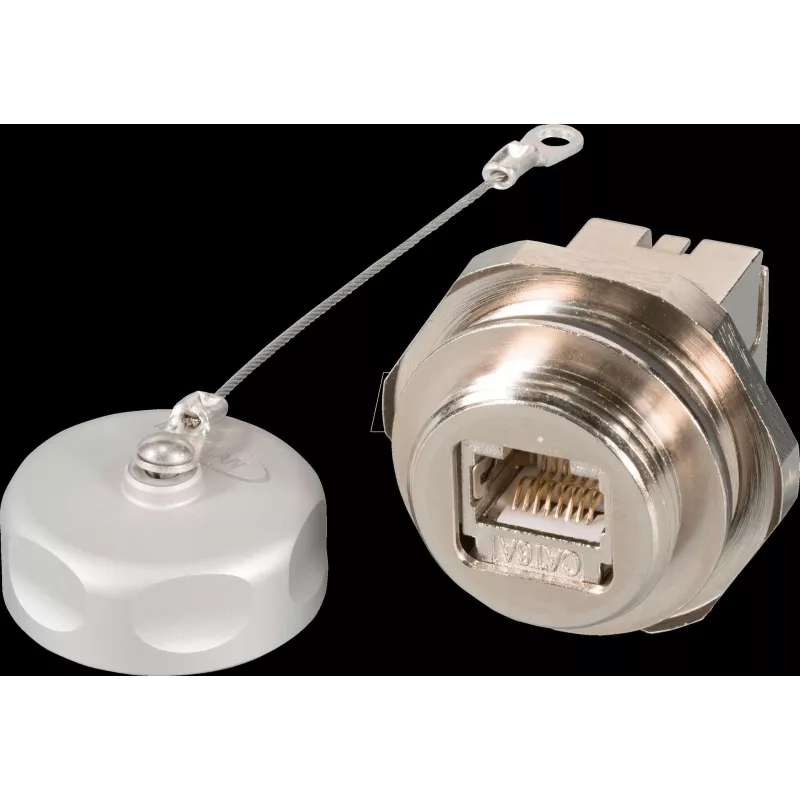

The EFB Elektronik IP67 Flush-mounted Socket is a robust, industrial-grade RJ45 connector designed for reliable Ethernet connections in harsh environments. With an IP67 rating, it is dust-tight and protected against temporary immersion in water, making it ideal for outdoor, factory, or marine applications. The M25 thread allows for easy panel or bulkhead mounting, and the fully shielded design ensures excellent electromagnetic compatibility (EMC) for high-speed data transmission up to 10 Gigabit Ethernet.

Advantages

This flush-mounted socket offers exceptional durability and performance. Its die-cast zinc housing provides mechanical strength and effective shielding, while the LSA+ (IDC) termination simplifies field assembly without special tools. The socket supports Power over Ethernet (PoE/PoE+) for powering devices like IP cameras or access points, and it is compatible with Cat.5 through Cat.7 cables, ensuring future-proof connectivity.

Suitable for

• Industrial Ethernet networks in factories, warehouses, and process control
• Outdoor installations such as surveillance cameras, wireless access points, and building automation
• Marine and offshore applications requiring corrosion resistance and watertight connections
• Data centers and server rooms where reliable, shielded connections are critical

Key specifications

• Connector Type: RJ45 Jack
• Category: Cat.6A (Class EA)
• Ingress Protection: IP67
• Mounting: Panel Mount / Bulkhead with M25 thread
• Shielding: Fully Shielded (STP/FTP)
• Data Transfer Rate: Up to 10 Gigabit Ethernet
• Cable Compatibility: Cat.5, Cat.5e, Cat.6, Cat.6A, Cat.7
• Termination: LSA+ (IDC) for field assembly
• Wiring Scheme: TIA/EIA-568A/B
• PoE Support: PoE, PoE+ (IEEE 802.3af/at)
• Housing Material: Die-cast zinc (shielded part), Plastic
• Operating Temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568

Recommendations

For optimal performance, use with shielded Cat.6A or higher cables and ensure proper grounding. The socket is designed for field termination; follow the included wiring diagram for T568A or T568B. Suitable for use with EFB Elektronik matching plugs and accessories.
