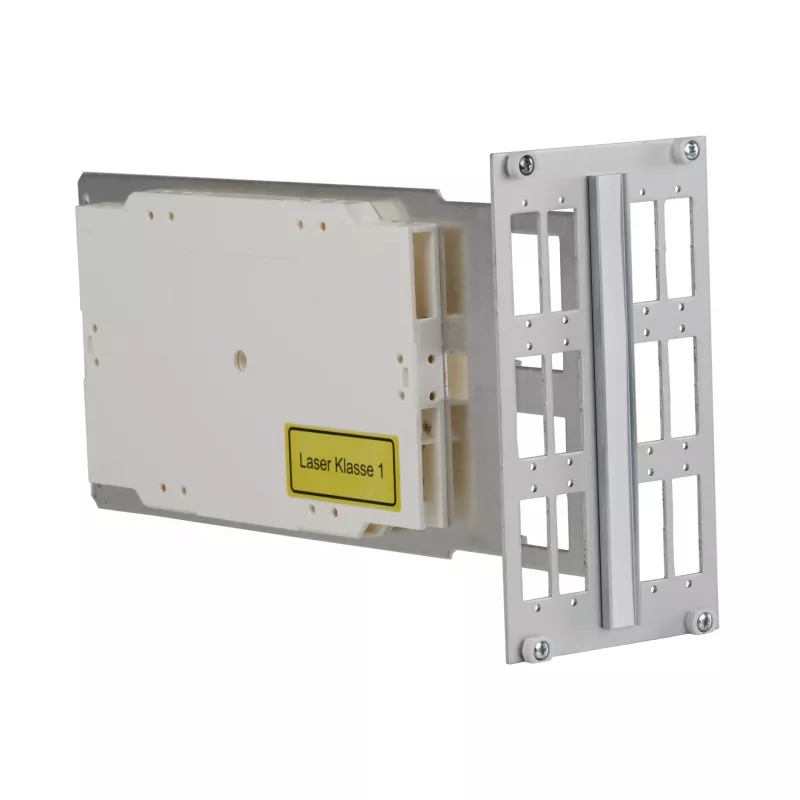

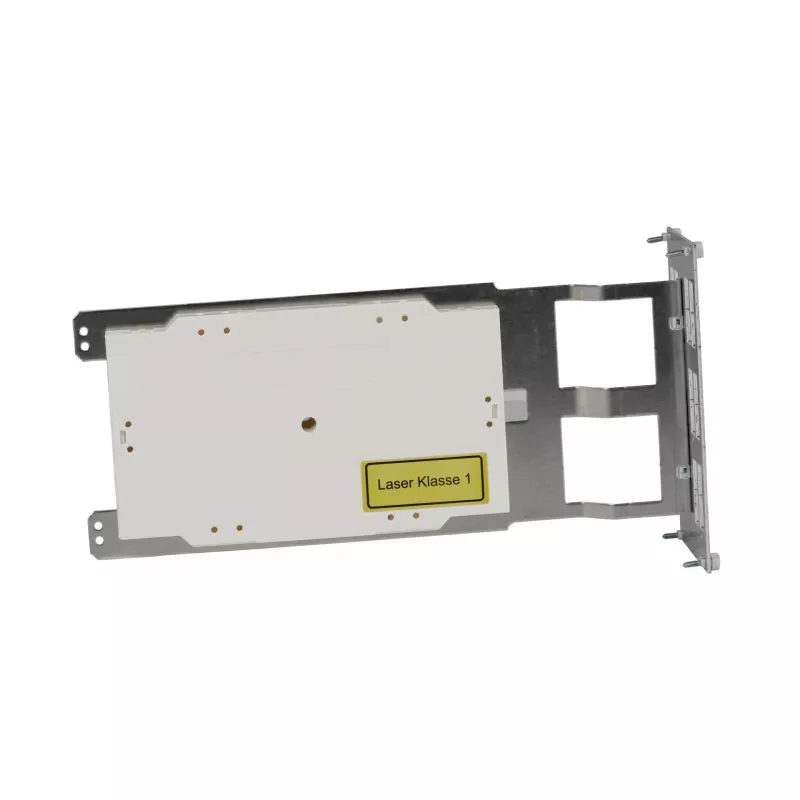

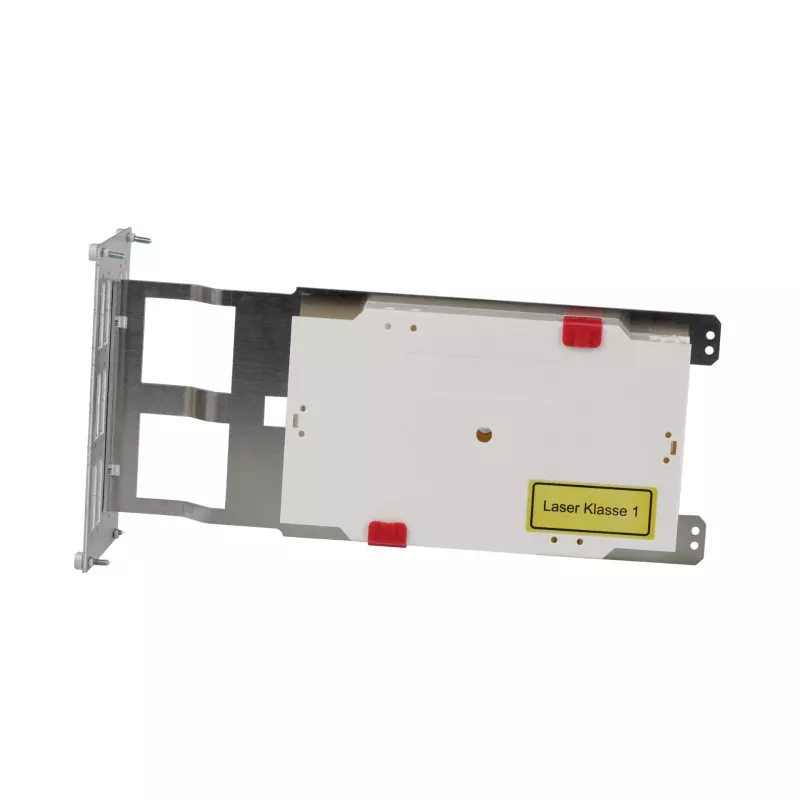

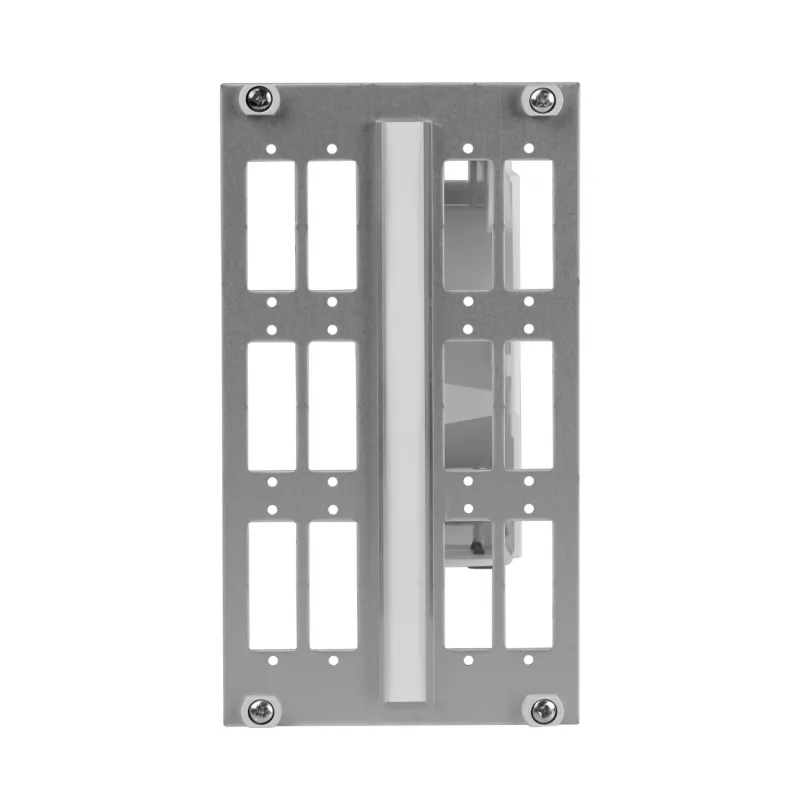

EFB-Elektronik supporto modulare in fibra ottica 3U 14HP per 12x SC duplex, non equipaggiato 53711.24

Fiber optic module tray for structured cabling, providing a 3U 14HP modular insert that accommodates up to 12 SC Duplex adapters. The tray is delivered unpopulated, allowing custom adapter configuration.

Advantages

Pre-cut front panel simplifies adapter installation, while the metal construction ensures durability in patch panel environments.

Suitable for

• Fiber optic patch panels and enclosures
• High-density SC Duplex connectivity
• Modular rack-mount installations

Key specifications

• Rack unit height: 3U (133.35 mm)
• Horizontal pitch: 14HP (71.12 mm)
• Adapter capacity: 12 x SC Duplex
• Fiber capacity: 24 fibers
• Material: Metal

Recommendations

Verify compatibility with your existing chassis before ordering. Adapters are not included.
