EFB IP67 pressacavo USB 2.0 M20, connettore maschio USB Type-A su connettore maschio USB Type-A, 1,0 m, argento/nero

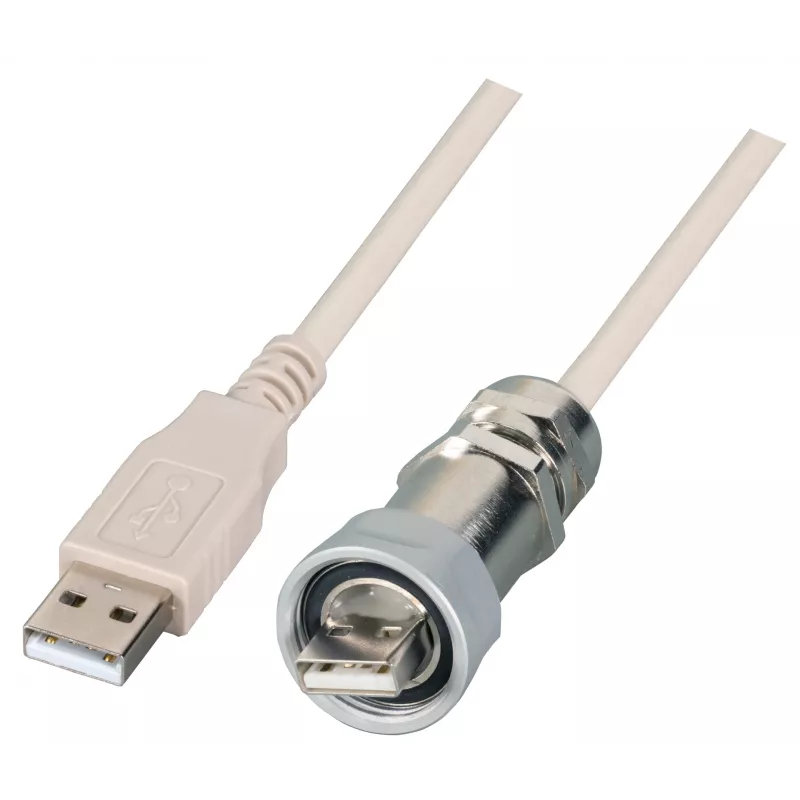

The EFB IP67 USB 2.0 Cable Gland is a robust industrial-grade connection solution designed for harsh environments. Featuring a nickel-plated brass gland with M20 thread, this cable gland provides a secure, watertight seal while delivering reliable USB 2.0 data transfer at up to 480 Mbps. The 1.0 m PVC cable is terminated with USB Type-A male connectors on both ends, making it ideal for panel-mount applications where dust and moisture ingress must be prevented.

Advantages

IP67-rated protection ensures the cable gland is dust-tight and can withstand temporary immersion in water, making it suitable for outdoor and industrial use. The nickel-plated brass construction offers excellent corrosion resistance and durability. USB 2.0 compatibility ensures broad device support and backward compatibility with USB 1.1. The panel-mount design with M20 thread simplifies installation in enclosures and control cabinets.

Suitable for

• Industrial automation and control systems
• Outdoor data communication equipment
• Harsh environment sensor connections
• Panel-mount USB extensions in workshops and factories

Key specifications

• Product Type: USB Cable Gland
• USB Standard: USB 2.0

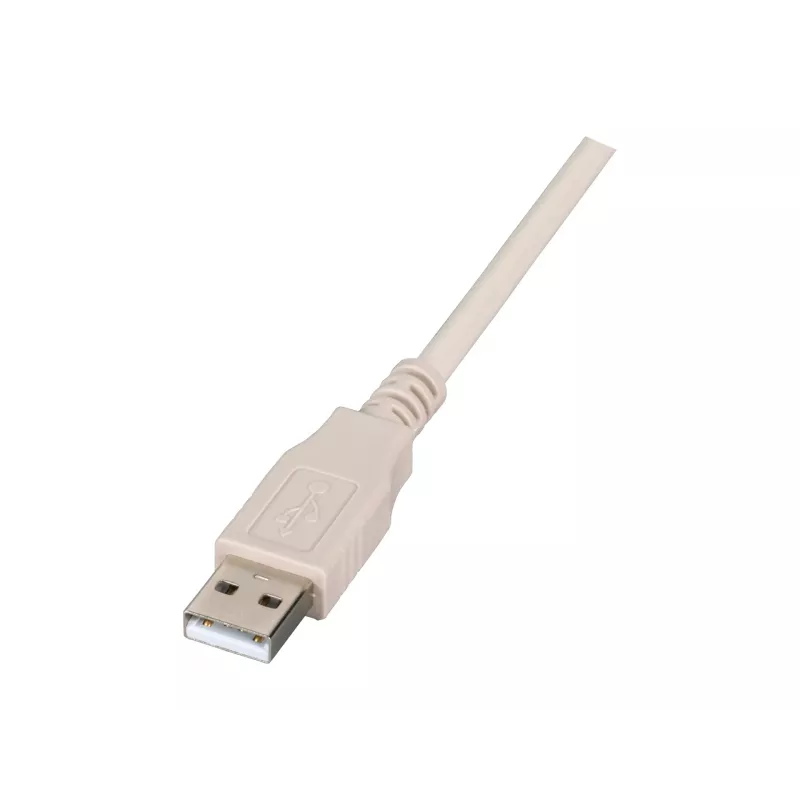

• Connector A: USB Type-A Male
• Connector B: USB Type-A Male
• Cable Length: 1.0 m
• Ingress Protection: IP67
• Mounting Thread: M20 x 1.5
• Mounting Type: Panel Mount
• Gland Material: Nickel-plated Brass
• Cable Jacket Material: PVC
• Colour: Silver (Gland), Black (Cable)
• Data Transfer Rate: Up to 480 Mbps
• Backwards Compatibility: USB 1.1
• Operating Temperature: -20°C to +85°C
• Voltage Rating: 5 V DC
• Current Rating: 500 mA
• Certifications: RoHS, CE

Recommendations

For reliable data transmission in demanding environments, this EFB IP67 USB cable gland delivers the protection and performance required for industrial applications. Its robust build and IP67 rating make it a trustworthy choice for panel-mount USB connections.
