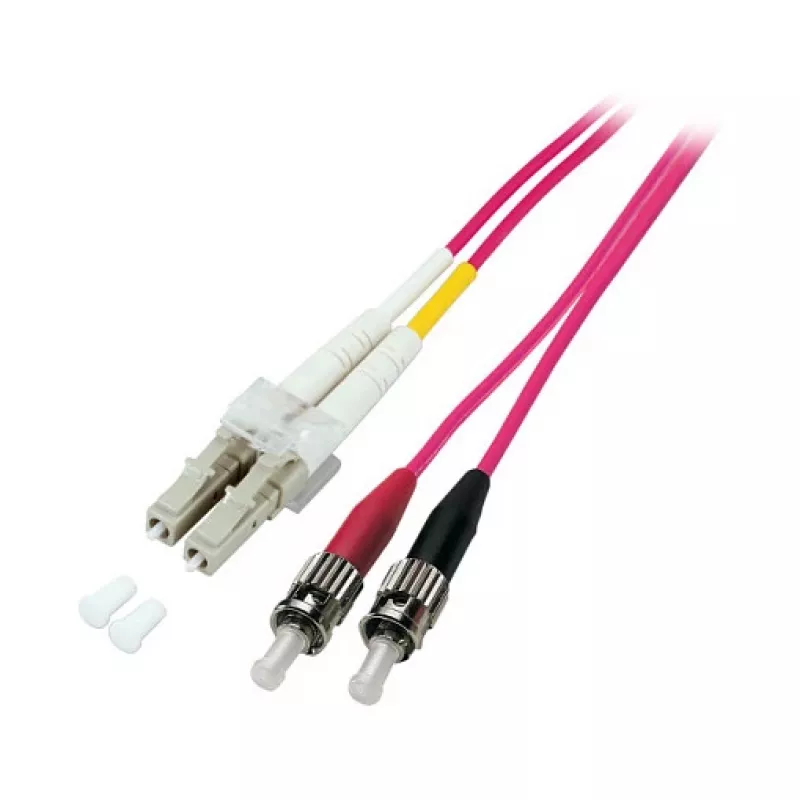

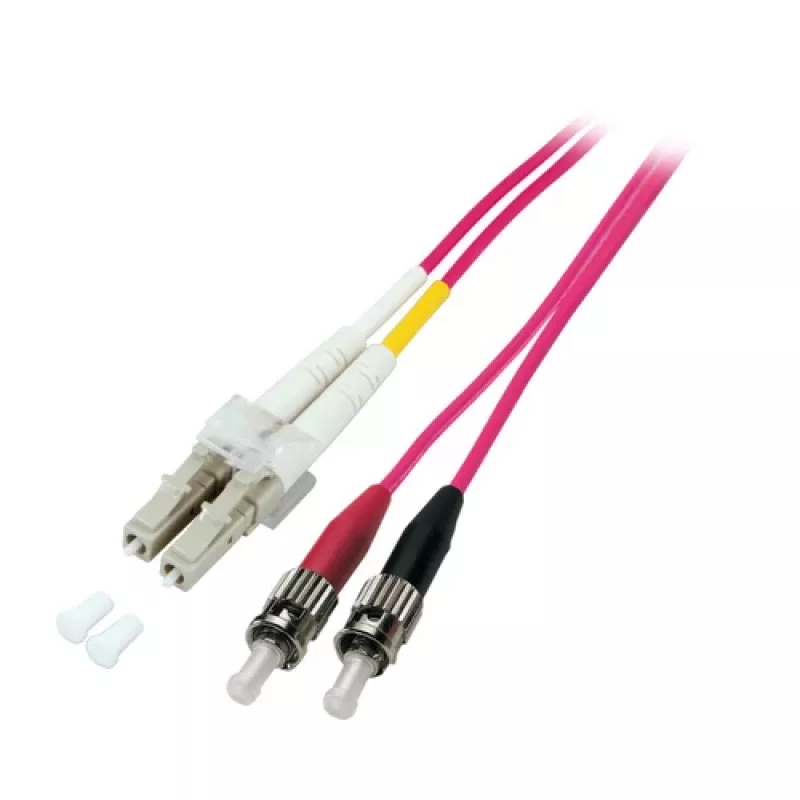

EFB jumper duplex LC-ST 50/125µm OM4 LSZH Erikaviolett 2,0mm 5m

Fiber optic patch cable engineered for high-speed multimode networking, delivering 40 Gbps throughput over OM4 fiber with exceptional signal integrity. The duplex LC-ST configuration ensures reliable connectivity in data centers and enterprise LAN environments.

Advantages

OM4 laser-optimized fiber supports 40 Gbps Ethernet up to 150 meters and 10 Gbps up to 550 meters, future-proofing your infrastructure. The LSZH jacket emits low smoke and zero halogen, enhancing safety in enclosed spaces. Erika violet color aids quick identification and organization. Precision-polished connectors minimize insertion loss, while the 2.0mm diameter balances durability and flexibility for high-density installations.

Suitable for

• Data center interconnects and backbone cabling
• Storage area networks (SAN) requiring high bandwidth
• Enterprise network upgrades to 40/100G Ethernet
• Telecom rooms and server farms with high port density
• Any environment where LSZH compliance is mandatory

Key specifications

• Connector A: LC Duplex
• Connector B: ST Duplex
• Fiber type: OM4 Multimode 50/125µm
• Cable length: 5 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Erika Violet
• Cable diameter: 2.0 mm
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 20 dB
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain proper bend radius during installation.
