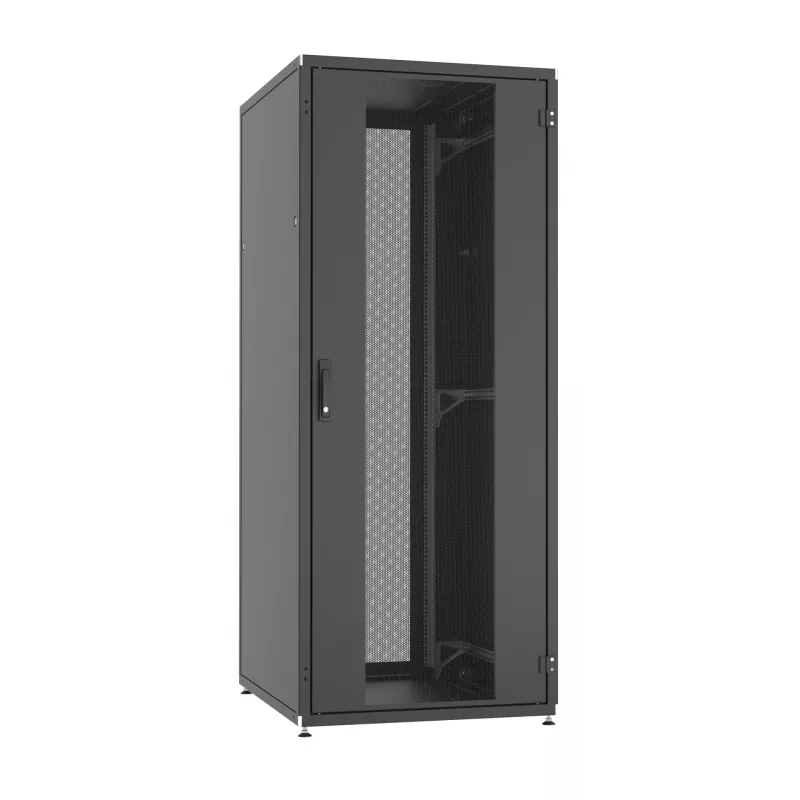

EFB PRO armadio server 33U 800x800mm RAL9005 con porte anteriori e posteriori perforate

This 33U server cabinet from EFB Elektronik stands out with its fully perforated single-section front and rear doors, engineered for maximum airflow in high-density installations. The welded steel frame and 1000 kg static load capacity make it a dependable choice for demanding IT environments, while the RAL 9005 jet black powder coating ensures a professional look that blends into any data center or office.

Highlights

• 33U of 19" rack space with adjustable mounting profiles for flexible equipment depth
• 800 x 800 mm footprint provides generous cable management and equipment clearance
• Perforated front and rear doors (single-section) promote passive cooling and reduce hot spots
• Removable, lockable side panels allow easy access during installation and maintenance
• Integrated grounding kit and swing handle locks with profile half cylinder for security

In daily use

Day-to-day operation is simplified by the cabinet's thoughtful design. The top and bottom cable entries with brush strips keep cable runs neat and dust out, while the levelling feet compensate for uneven floors. The front and rear doors open wide for full access to equipment, and the removable side panels make it easy to route cables or perform hot-swap maintenance. With IP20 protection, this cabinet is intended for indoor use in controlled environments.

Full specifications

• Rack capacity: 33U
• Rack width: 19" (48.3 cm)
• External dimensions (W x D x H): 800 x 800 x 1650 mm
• Colour: RAL 9005 (jet black)
• Material: Sheet steel, powder-coated

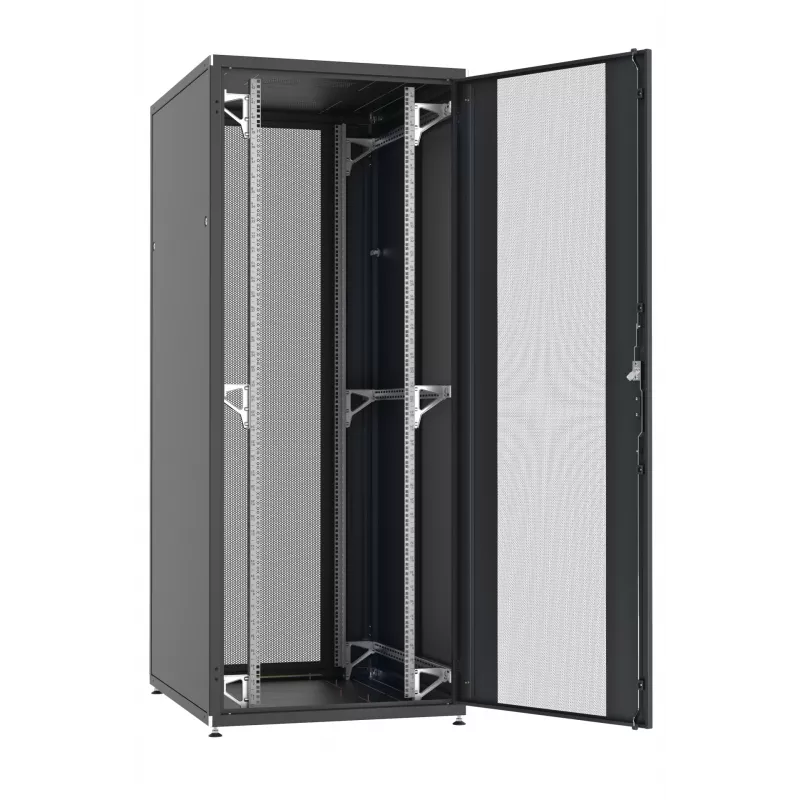

• Front door: Single-section, perforated steel, lockable
• Rear door: Single-section, perforated steel, lockable
• Side panels: Removable, lockable
• Maximum static load capacity: 1000 kg
• Cable entry: Top and bottom with brush strips
• Mounting profiles: 19" adjustable depth
• Protection class: IP20
• Frame type: Welded
• Feet: Levelling feet
• Grounding: Integrated grounding kit
• Door locking: Swing handle lock with profile half cylinder

Final note

For IT professionals who need a robust, well-ventilated enclosure without compromise, the EFB PRO 33U cabinet delivers the build quality and practical features that keep critical hardware secure and cool.
