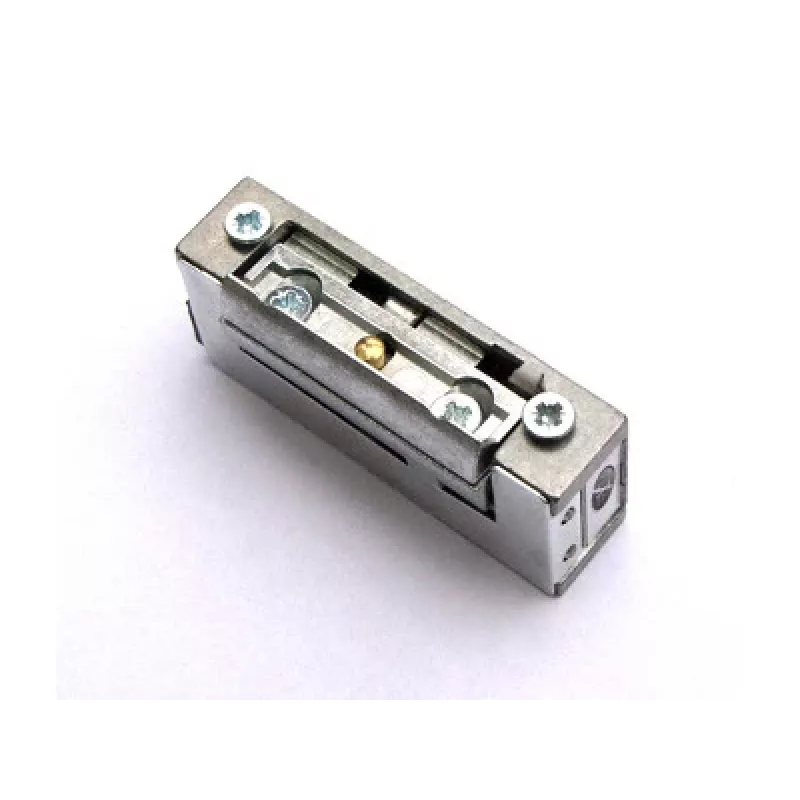

ELEKTRA-PLUS R5 apriporta elettrico con memoria, simmetrico, stretto 16,5 mm

The ELEKTRA-PLUS Electric Door Strike R5 with Memory is a high-quality, fail-secure electric strike designed for professional access control applications. Featuring a symmetrical design and narrow profile of 16.5 mm, this unit offers reliable latch retention and is suitable for both left and right-handed doors without adjustment.

Advantages

This electric strike provides a holding force of 3000 N (300 kg) and is rated for 200,000 cycles, ensuring long-lasting performance. The memory function (latch retention) allows the door to remain unlocked after initial activation until the door is opened, enhancing convenience in high-traffic areas. Its flush mount design and zinc alloy body with steel latch offer durability and a clean installation.

Suitable for

• Access control systems in commercial buildings
• Office entrances and internal doors
• Industrial facilities requiring robust security
• Retail stores and public buildings

Key specifications

• Product Type: Electric Door Strike
• Series: Elektra R5
• Operating Mode: Fail-Secure (Standard)
• Memory Function: Yes (Latch Retention)
• Symmetrical Design: Yes
• Profile Width: 16.5 mm (Narrow)
• Operating Voltage: 12-24V AC/DC
• Current Consumption (12V AC): 420 mA
• Current Consumption (12V DC): 500 mA
• Current Consumption (24V AC): 210 mA
• Current Consumption (24V DC): 250 mA
• Holding Force: 3000 N (300 kg)
• Durability: 200,000 Cycles
• Operating Temperature: -20°C to +50°C
• Mounting Type: Flush Mount
• Material: Zinc Alloy Body, Steel Latch
• Handing: Non-Handed (Universal Left/Right)

Recommendations

For optimal performance, pair with a compatible access control system and ensure proper wiring according to the voltage and current specifications. The fail-secure mode ensures the door remains locked in case of power loss, providing enhanced security.
