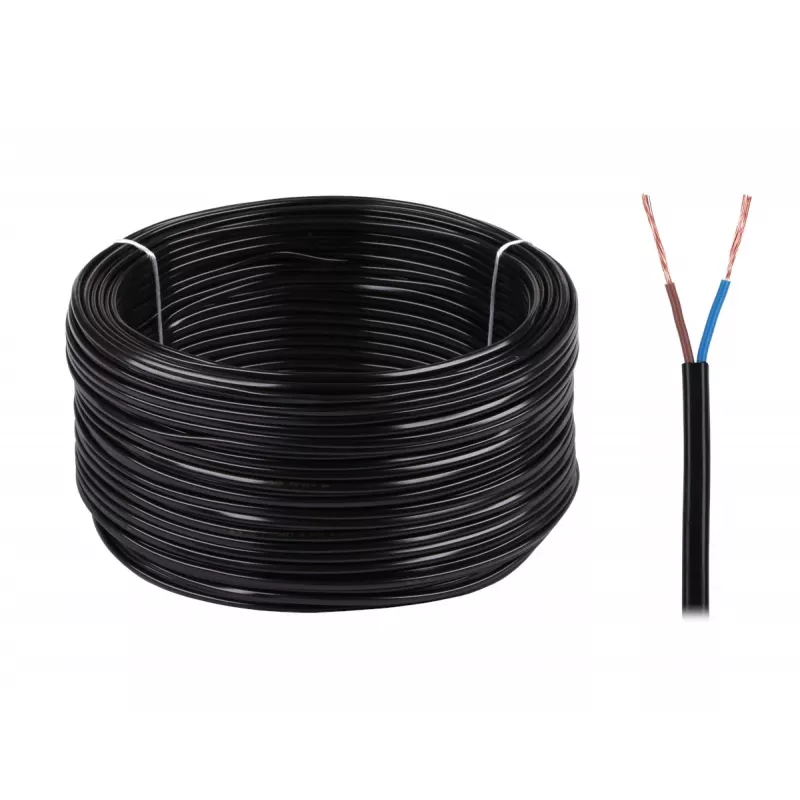

Cavo elettrico OMYp 2x0,5 mm² 300/300V flessibile in PVC nero

When connecting light portable appliances, household devices, or office equipment, a reliable and flexible cable is essential. The ELEKTROKABEL OMYp 2x0.5 mm² cable meets this need with a stranded copper conductor and PVC insulation, ensuring safe power delivery for low-voltage applications up to 300/300V. Its flame-retardant sheath adds an extra layer of safety, making it suitable for both fixed and flexible installations in dry indoor environments.

Who is it for

This cable is ideal for electricians, technicians, and DIY enthusiasts who need a dependable power cord for light-duty appliances, table lamps, radios, office machines, and similar devices. It is also suitable for manufacturers of small electrical equipment requiring a flexible, easy-to-route cable.

Main features

• Flexible stranded copper conductor (Class 5) for easy handling and routing
• PVC insulation and sheath provide durability and electrical safety
• Rated voltage 300/300V, suitable for low-voltage household and office use
• Flame-retardant according to IEC 60332-1-2, reducing fire risk
• Compact outer diameter of 4.8 mm for space-saving installations
• Operating temperature range from -5°C to +70°C (fixed installation)

Specifications

• Cable type designation: OMYp
• Number of cores: 2
• Nominal cross-sectional area per core: 0.5 mm²
• Conductor material: Electrolytic copper, stranded Class 5
• Insulation material: PVC
• Sheath material: PVC
• Sheath colour: Black
• Rated voltage U₀/U: 300/300 V
• Test voltage: 2000 V
• Maximum operating temperature (conductor): +70°C
• Minimum operating temperature (fixed installation): -5°C
• Minimum operating temperature (flexible use): +5°C
• Approximate outer diameter: 4.8 mm
• Nominal current carrying capacity: 3 A (reference value)
• Insulation resistance: >20 MΩ·km
• Fire performance: Flame retardant (IEC 60332-1-2)
• Standard: PN-EN 50525-2-11

Tips

When installing, avoid sharp bends and ensure the cable is not subjected to mechanical stress. For outdoor or wet locations, use a cable with appropriate protection. Always verify that the current load does not exceed the rated capacity for the specific installation conditions.
