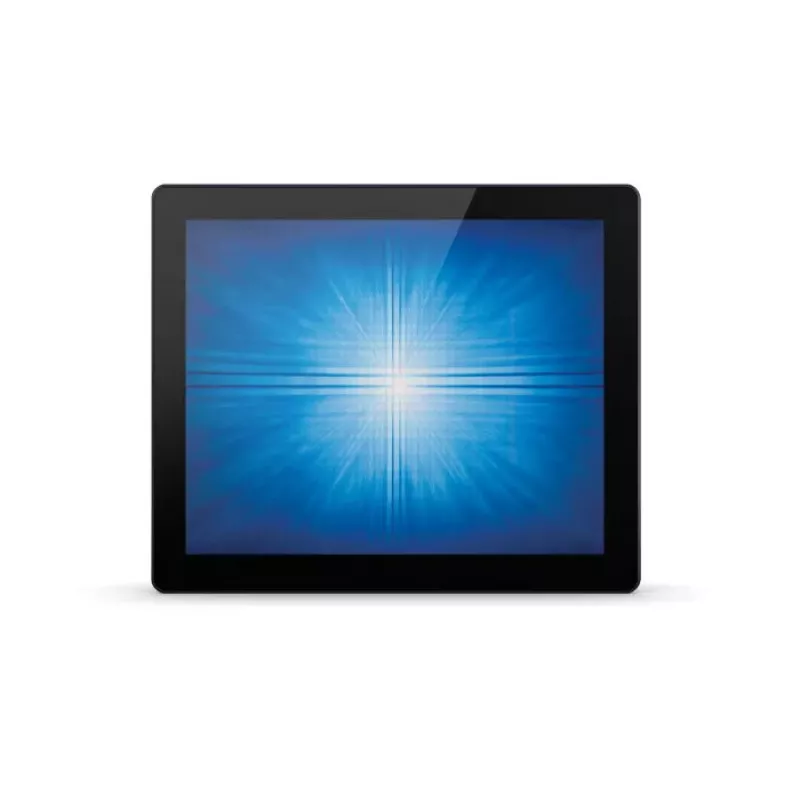

Monitor touchscreen Elo Touch Solutions 1790L 17" LCD/TFT

The Elo 1790L 17-inch open-frame LCD touch display combines a slim profile and compact dimensions with an energy-saving LED backlight to reduce power consumption and heat. Designed and manufactured by Elo Touch Solutions, the 1790L offers stable, drift-free projected capacitive and alternative touch technologies, high light transmission and clear images for accurate touch responses. Its open-frame design is intended for integration into kiosks, retail self-service, casino and amusement installations, and industrial automation where a reliable 17-inch touchscreen is required.

Advantages

The 1790L provides reliable commercial-grade performance with multiple touch technology options, including a zero-bezel multi-touch TouchPro™ PCAP two-glass (2GS) solution supporting up to 10 touches and thru-glass two-touch operation. The unit can be sealed against dirt, dust and liquids and PCAP models achieve an IP65 front-side rating when integrated correctly. Elo controls design and tooling to help ensure long-term availability, and the product is backed by a three-year standard warranty and extensive reliability testing.

Suitable for

• Kiosk systems and interactive wayfinding
• Retail self-service and point-of-sale terminals
• Casino and amusement interfaces
• Industrial automation panels and machine HMIs

Key specifications

• Display diagonal: 17"
• Resolution: 1280 x 1024 pixels
• Display technology: LCD/TFT with LED backlight
• Brightness: 225 cd/m²
• Response time: 5 ms
• Contrast ratio (typical): 1000:1
• Aspect ratio: 5:4
• Screen shape: Flat
• VESA mounting: Yes
• Product colour: Black
• Front-side ingress protection (when sealed, PCAP): IP65

How to use

Install the Elo 1790L into the target enclosure or kiosk following the manufacturer’s mechanical and electrical integration guidelines; the open-frame design is intended for mounting behind bezels or into custom housings. Choose the touch technology that fits your application (multi-touch PCAP for tablet-like multi-touch, single-touch SAW or resistive for specific use cases). Connect video, power and touch interface cables according to the Elo installation manual, install the appropriate drivers and configure touch settings in the host system for optimal performance.

Recommendations

For sealed installations, use the projected capacitive (PCAP) model and follow Elo’s enclosure sealing instructions to achieve an IP65-rated front. Use Elo drivers and perform life-testing validation in your final enclosure to ensure long-term reliability and accurate touch response.
