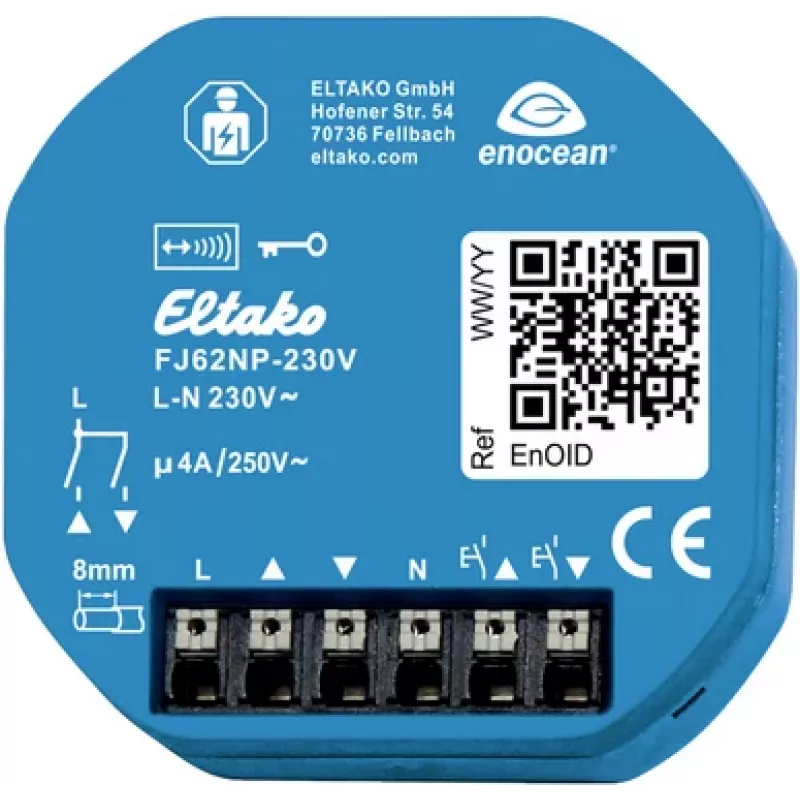

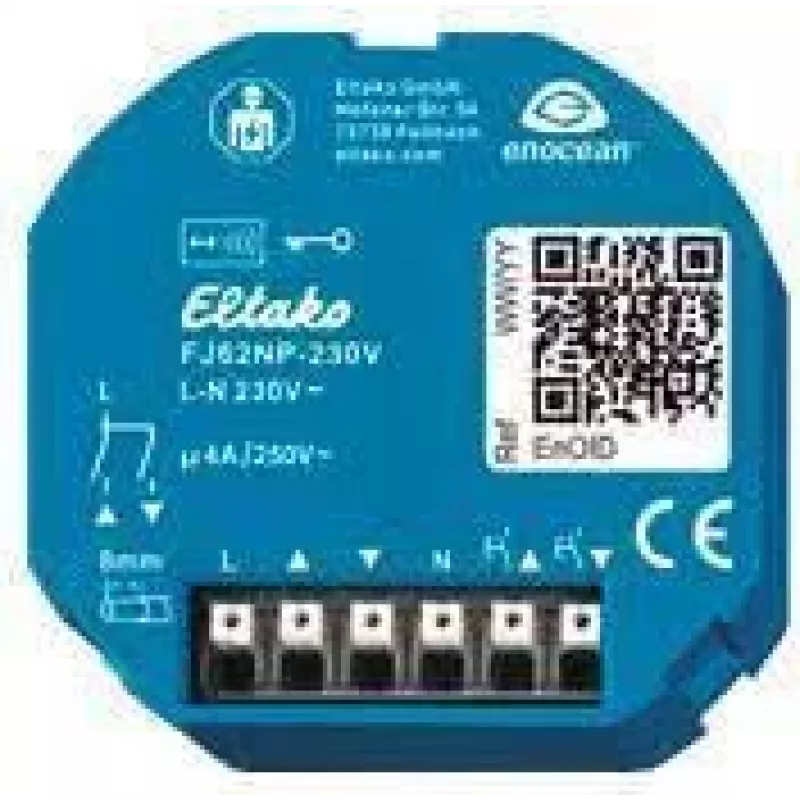

Eltako attuatore radio per tende e tapparelle FJ62NP-230V 4A/250V 30200535

For electricians and smart-home installers, the Eltako FJ62NP-230V provides wireless control of blinds and roller shutters in residential and commercial buildings. It mounts flush in a standard wall box and switches motors up to 1000 W directly at 230 V AC.

Key specifications

• Operating voltage: 230 V AC
• Maximum switching current: 4 A
• Maximum switching voltage: 250 V AC
• Maximum motor power: 1000 W
• Wireless technology: Eltako-Funk (EnOcean Standard), 868.3 MHz
• Two relay outputs for up/down control
• Local pushbutton inputs for manual control
• Standby loss: 0.8 W
• Ambient temperature: -20 °C to +50 °C
• Mounting depth: 33 mm

Why choose it

The actuator combines wireless convenience with reliable relay switching. It supports central control, scene control, and time control functions, making it easy to integrate into existing Eltako-Funk installations or new EnOcean-based systems.

Ideal use cases

• Retrofitting motorised blinds without additional wiring
• Centralised control of multiple roller shutters in homes or offices
• Integration with EnOcean-compatible smart home controllers

Good to know

The device is designed for flush mounting and includes short-circuit and overload protection. It operates without a neutral wire in many installations, but always follow local wiring regulations.
