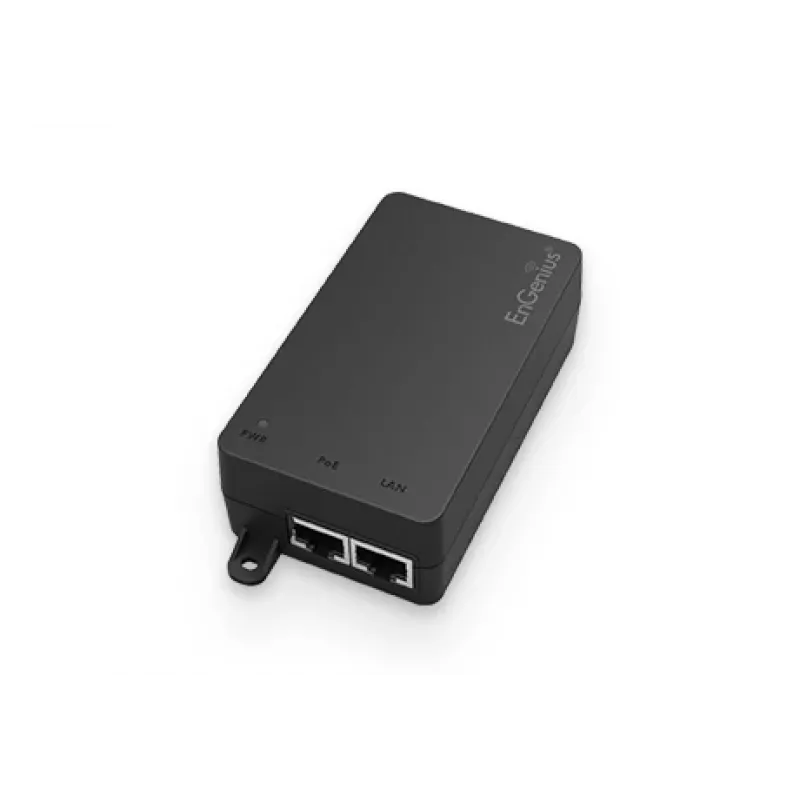

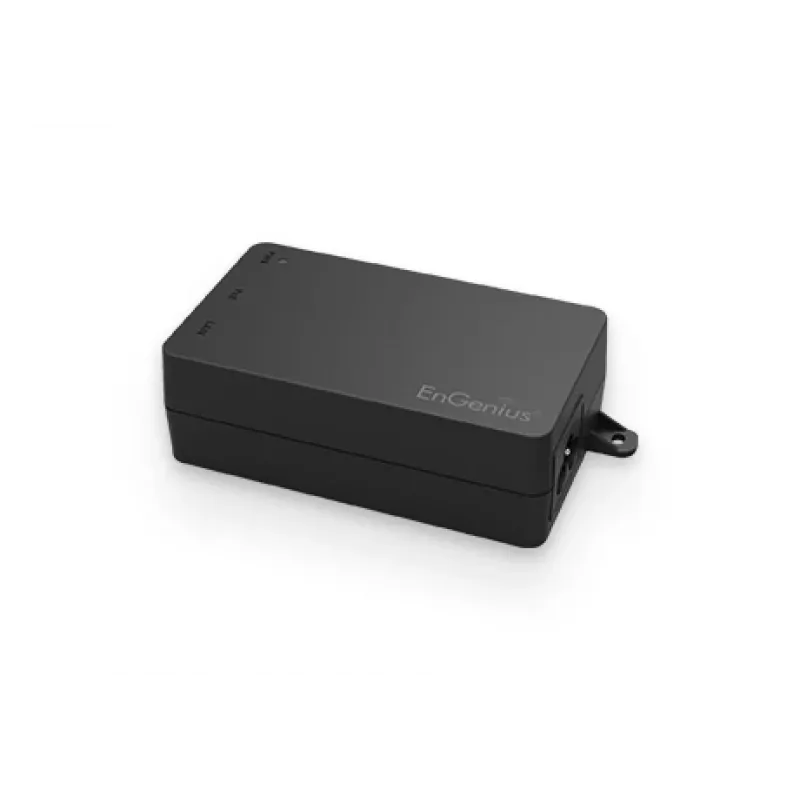

EnGenius iniettore PoE 54V, 1,11A 60W AF/AT/BT 10GbE

The EnGenius EPA5060XBT 10 Gigabit Ethernet Power-over-Ethernet injector provides high-speed network connectivity and up to 60 W (54 V) of power over a single Ethernet cable. Compliant with IEEE 802.3af/at/bt standards, this compact black injector supplies both data and power to devices such as wireless access points, IP cameras and VoIP phones up to 100 m away, and includes built-in surge and short-circuit protection for reliable operation.

Advantages

This PoE injector supports 10, 100, 1000, 2500 and 10000 Mbit/s links and delivers up to 60 W of output power while maintaining IEEE 802.3af, 802.3at and 802.3bt compatibility. Its compact, optimised port design allows easy mounting on walls or ceilings using the included hardware, and integrated disconnect, short-circuit and surge protection helps preserve connected equipment.

Suitable for

• Powering wireless access points (APs) that require up to 60 W
• Supplying IP surveillance cameras in locations without nearby power outlets
• Providing PoE to VoIP phones and other networked devices
• Extending network connectivity and power up to 100 m (328 ft) over Cat5e/Cat6 cabling

Key specifications

• Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Data rates: 10/100/1000/2500/10000 Mbit/s
• PoE output: up to 60 W (54 V, 1.11 A)
• Colour: Black
• Maximum cable distance: 100 m (328 ft)
• Mounting: wall or ceiling (hardware included)
• Weight: 0.198 kg

How to use

Connect the injector's Ethernet input to a network switch or router using a suitable Ethernet cable. Connect the PoE output port to the powered device (for example an AP, IP camera or VoIP phone) with a single Ethernet cable. Ensure cable runs do not exceed 100 m and that the powered device is IEEE 802.3af/at/bt compatible. Secure the injector to a wall or ceiling with the supplied mounting hardware if permanent installation is required.

Recommendations

Use Cat5e or better cabling for optimal 10 Gigabit and PoE performance, avoid sharp bends and keep cable runs within the 100 m limit. Verify device power requirements before connection to ensure the injector's 60 W output meets the load.
