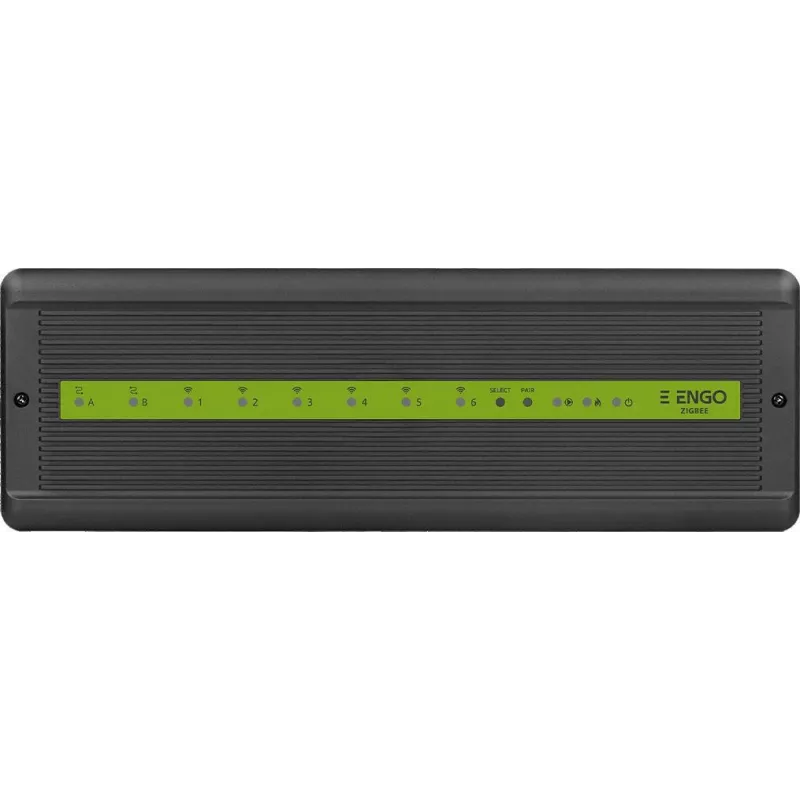

ENGO Controls ECB62-ZB unità centrale smart home, 6 zone radio + 2 cablate, 230V

The ENGO Controls ECB62-ZB is a smart home central unit designed for efficient heating system control. It supports up to 6 wireless zones and 2 wired zones, making it ideal for managing multiple heating circuits in residential or commercial buildings. With ZigBee 3.0 communication, it seamlessly integrates with ENGO Smart Home devices, allowing for remote control via the ENGO Smart App.

Advantages

This central unit offers flexible zone management, enabling independent temperature control for each zone. It includes 9 relay outputs (8 for zones, 1 for boiler/pump), ensuring reliable operation. Built-in frost protection and scheduling functionality enhance energy efficiency and comfort. The wall-mounted design saves space, and LED indicators provide clear status updates.

Suitable for

• Smart home heating systems requiring multi-zone control
• Integration with ENGO Smart Home devices
• New installations or retrofitting existing heating systems

Key specifications

• Product Type: Smart Home Central Unit
• Application: Heating System Control
• Wireless Zone Support: 6 zones
• Wired Zone Support: 2 zones
• Communication Protocol: ZigBee 3.0
• Power Supply: 230V AC, 50Hz

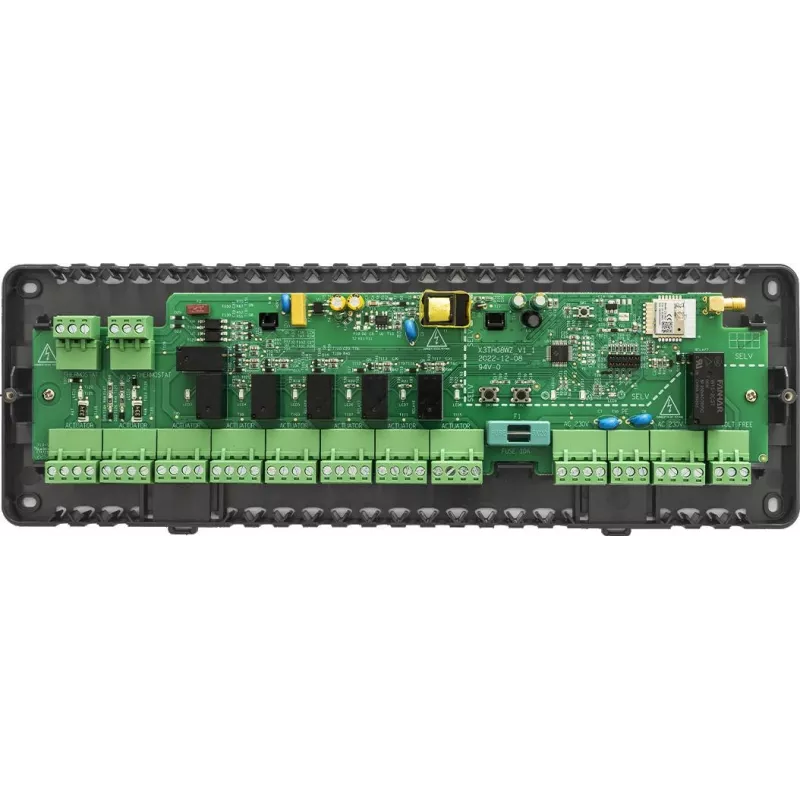

• Number of Relay Outputs: 9 (8 zone outputs, 1 boiler/pump output)
• Max Output Current (per zone): 3A
• Control Method: ENGO Smart App, Manual
• Mounting Type: Wall-mounted
• Operating Temperature Range: 0°C to 50°C
• Protection Rating: IP20
• Compatibility: ENGO Smart Home devices
• Boiler Control: Yes
• Pump Control: Yes
• Frost Protection: Yes
• Scheduling Functionality: Yes
• LED Indicators: Yes (for status and zone activity)

Recommendations

For optimal performance, pair the ECB62-ZB with ENGO Smart thermostats and actuators. Professional installation is recommended to ensure proper wiring and configuration.
