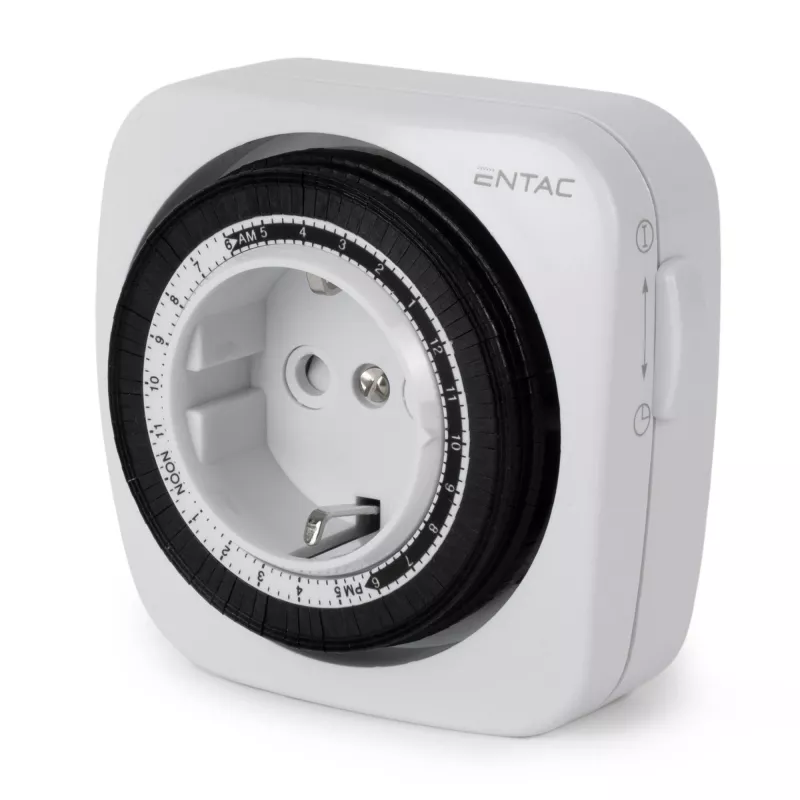

ENTAC Timer meccanico Mini 24 ore 48 programmi

The ENTAC Mechanical Timer Mini is a reliable and easy-to-use 24-hour timer with 48 switching programs per day, ideal for automating electrical devices in home and office environments. Its mechanical design ensures simple operation without complex programming.

Advantages

Simple mechanical operation with 30-minute minimum switching interval; child protection for safety; manual override for temporary control; compact design fits standard Schuko sockets.

Suitable for

• Automating lights, lamps, and decorative lighting
• Controlling household appliances like coffee makers or fans
• Energy-saving scheduling for electronic devices

Key specifications

• Timer Type: Mechanical
• Operating Cycle: 24 hours
• Number of Switching Programs: 48 per day
• Minimum Switching Interval: 30 minutes
• Max. Switching Capacity: 3680 W
• Max. Current: 16 A
• Operating Voltage: 230 V AC
• Frequency: 50 Hz
• Socket Type: Schuko (Type F)
• Child Protection: Yes
• Usage Environment: Indoor
• Protection Rating: IP20
• Housing Material: Plastic
• Color: White
• Manual Override: Yes

Recommendations

For best results, ensure the connected device does not exceed the maximum load of 3680 W. This timer is not suitable for outdoor use.
