Epson ELPLX02WS obiettivo di proiezione Pro Series bianco

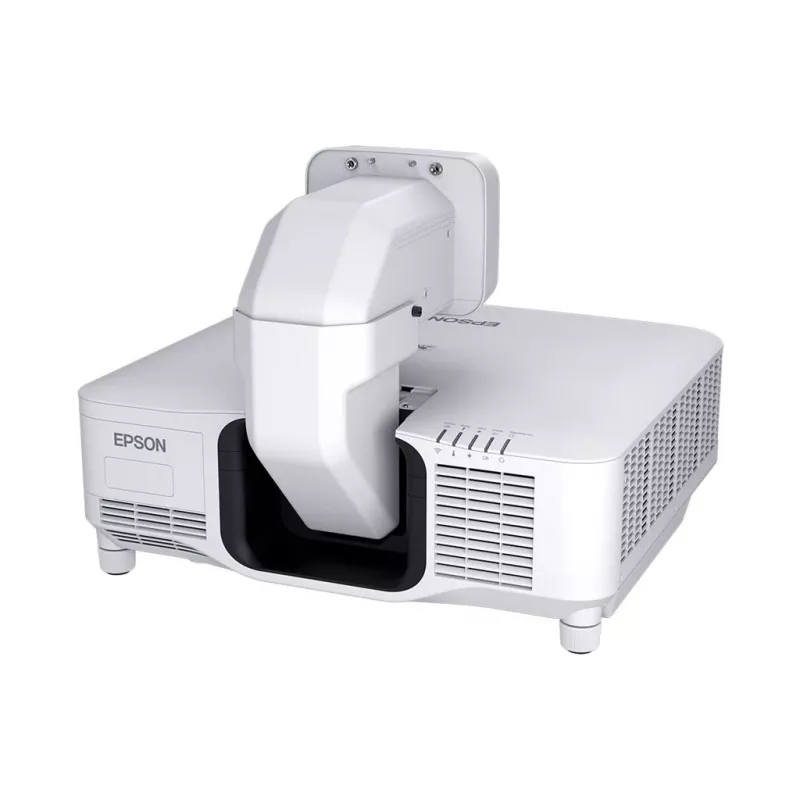

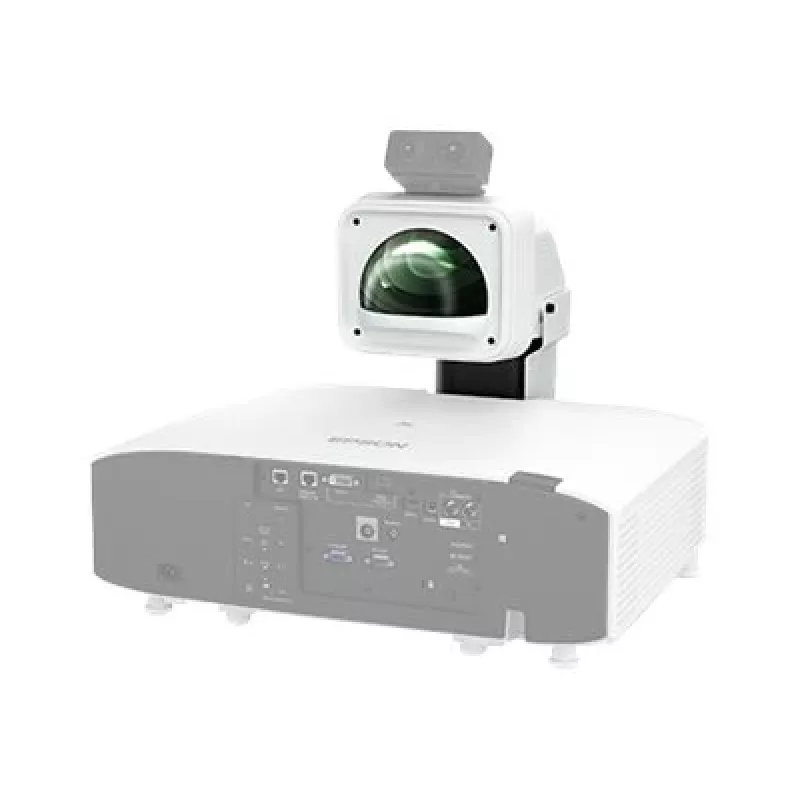

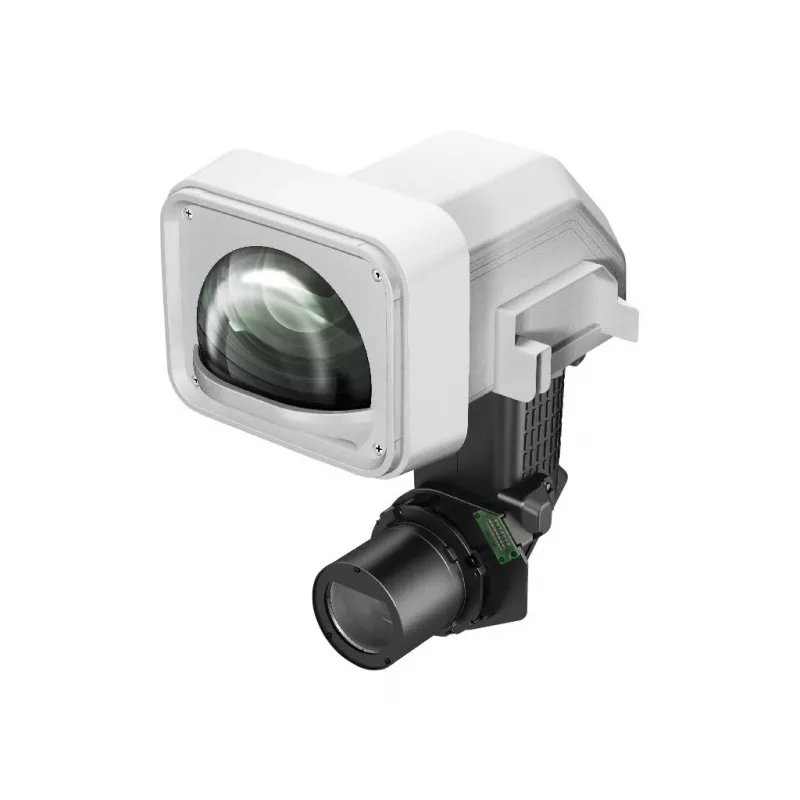

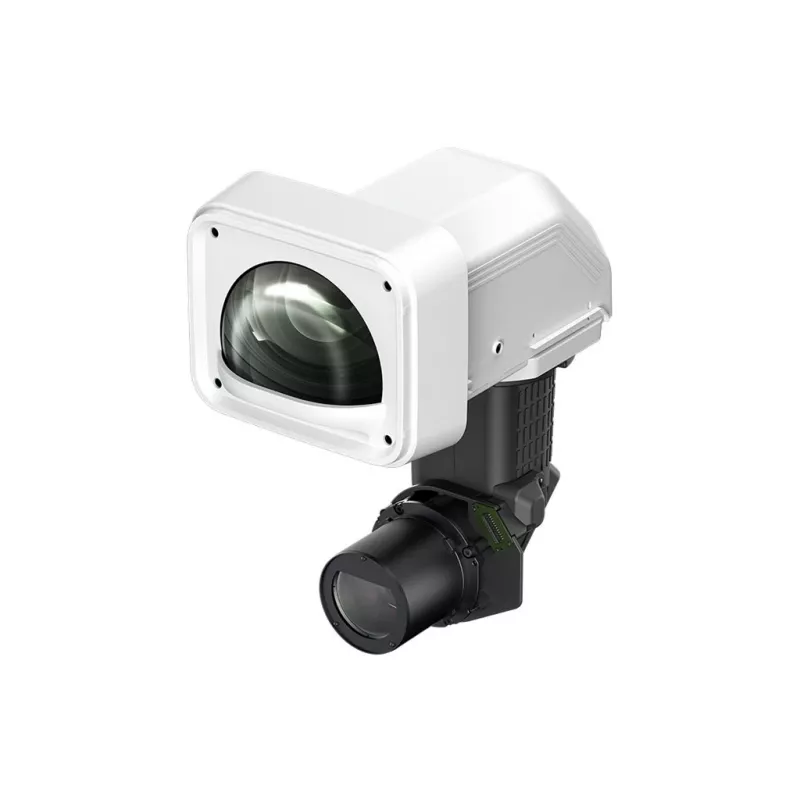

The Epson ELPLX02WS ultra short-throw lens projects very large, bright images from a short distance and is designed for use with Epson Pro Series projectors rated between 9,000 and 20,000 lumens. With a white housing that matches white projector models, a 0.35 throw ratio, wide lens shift and a zero offset design, this lens supports installations in narrow or space-constrained environments and enables screen sizes up to 1000". An integrated mount point for Epson's optional ELPEC01 external camera allows use of automated setup tools such as auto color calibration, multi-projector screen matching, tiling assist for edge blends and stacking assist.

Advantages

The ELPLX02WS provides flexible placement thanks to its ultra short-throw 0.35 ratio and wide lens shift, allowing large images in confined spaces. The white finish is matched to white Pro Series projectors for a consistent appearance. The lens's zero offset design supports low-ceiling, rear-projection and stealth installations. Built-in compatibility with Epson's ELPEC01 external camera enables automated calibration and alignment tools that simplify multi-projector setups, color matching and edge blending.

Suitable for (tasks / use cases)

• Fixed installations in narrow or small rooms
• Low-ceiling venues where projector must be close to screen
• Rear-projection and stealth installations
• Large-format presentations, events and immersive displays up to 1000"
• Multi-projector systems requiring screen matching and edge blending

Key specifications

• Manufacturer: Epson
• Model / MPN: ELPLX02WS / V12H004Y0B
• Color: White
• Compatibility: Epson Pro Series projectors (9,000–20,000 lumens)
• Throw ratio: 0.35 (ultra short-throw)
• Maximum projected image: up to 1000"
• Features: wide lens shift, zero offset design, mount for ELPEC01 external camera

How to use

Mount the ELPLX02WS onto a compatible Epson Pro Series projector following the projector and lens installation instructions. Position the projector close to the screen according to the 0.35 throw ratio to achieve the intended image size, then use lens shift to fine-tune framing. If using the ELPEC01 external camera, attach it to the integrated mount point and run Epson's setup utilities to perform auto color calibration, screen matching or tiling and stacking assists.

Recommendations

For best results, verify your projector model is within the 9,000–20,000 lumen range and follow Epson's guidelines for mounting and ventilation. Use the ELPEC01 camera and Epson calibration tools when aligning multiple projectors or performing edge blends to ensure accurate color and geometry.
