Equip 13541007201 presa di rete Cat5e bianca

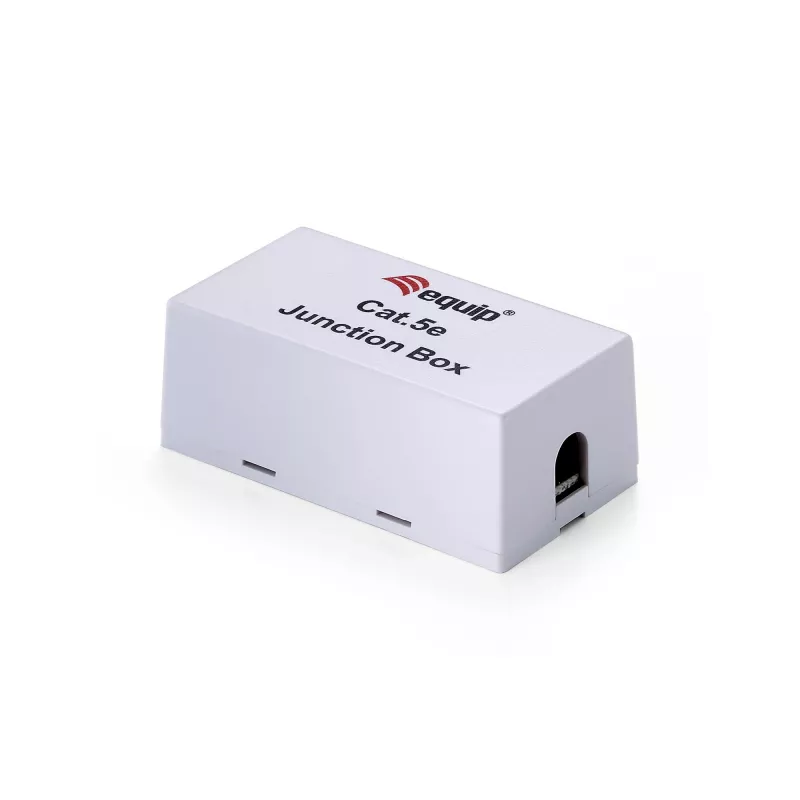

The equip® Junction Box (Network Junction Box Equip 13541007201) is a compact connection module for Cat5e cables. It provides a durable white casing and is intended to create permanent cabling links without the need for additional connectors or couplers. The box supports up to 200 punchdowns and allows repair or extension of cabling via LSA terminals.

Advantages

The junction box enables a stable and space-saving method to join two Cat5e cables directly, reducing the number of external connectors. Its robust housing and support for up to 200 punchdowns deliver reliable mechanical protection. LSA terminals permit straightforward reconnection or extension after cable damage, while the small footprint (35.7 mm × 26 mm × 65.7 mm) simplifies integration into diverse installation environments.

Suitable for

• Joining two Cat5e cables in permanent installations
• Repairing damaged Cat5e cable runs using LSA punchdowns
• Space-constrained installations where compact junctions are required

Key specifications

• Model: Equip 13541007201 (MPN: 135410NEUEVERSION, EAN: 4015867225912)
• Cable category: Cat5e
• Maximum punchdowns: 200
• Dimensions (W×D×H): 35.7 mm × 26 mm × 65.7 mm
• Color: White

How to use

Mount the junction box at the desired location and prepare the Cat5e cable ends according to standard stripping specifications. Insert each conductor into the corresponding LSA terminal and perform punchdowns (up to 200 cycles as required). After punching down, close the housing if applicable and secure the box in place. To extend or reconnect after damage, reopen the module and reterminate the affected conductors via the LSA terminals.

Recommendations

For reliable performance, use with Cat5e cables and follow standard LSA punchdown procedures. Avoid exceeding the specified punchdown count and install the junction box in a dry, protected environment to maintain mechanical integrity.
