Equip Pro Mount armadio 19 pollici, 12U, 600X450MM, RAL9005 nero

The Equip Pro Mount EPM-12-6045-B-CBAA is a 12U wall-mounted 19" cabinet designed for tidy installation and protection of active and passive network components. Constructed from steel sheets up to 1.5 mm thick and finished in black (RAL 9005), this compact rack (640 × 450 × 600 mm) includes pre-mounted 483 mm (19") profile rails with depth adjustment and height unit markings, a keyed lock, and multiple cable entry options to support neat cable management.

Advantages

Robust steel construction and powder coating ensure durability and resistance to wear. The cabinet includes galvanized adjustable 19" rails with dual-direction unit markings and a back frame with 19" punch-outs for flexible mounting. Removable door and side panels, reversible door orientation, and integrated ventilation slots on the roof simplify maintenance and airflow. Multiple cable entry points—sliding roof panel with rubber seal, punched entries with plastic covers, and top/bottom brushes on the rear frame—help keep cabling organized and protected. Optional leveling feet or castors allow standalone placement when wall mounting is not used.

Suitable for

• Mounting and organizing 19" network switches, patch panels and routers
• Secure storage of small servers and active network equipment in offices and server rooms
• Environments requiring compact, wall-mounted rack installations with tidy cable routing

Key specifications

• Rack capacity: 12U
• External dimensions (H×W×D): 640 × 450 × 600 mm
• Maximum mounting depth: 370 mm
• Weight: 22.5 kg
• Profile rails: 483 mm (19") galvanized, pre-mounted, depth-adjustable, with height markings
• Colour: Black (RAL 9005)

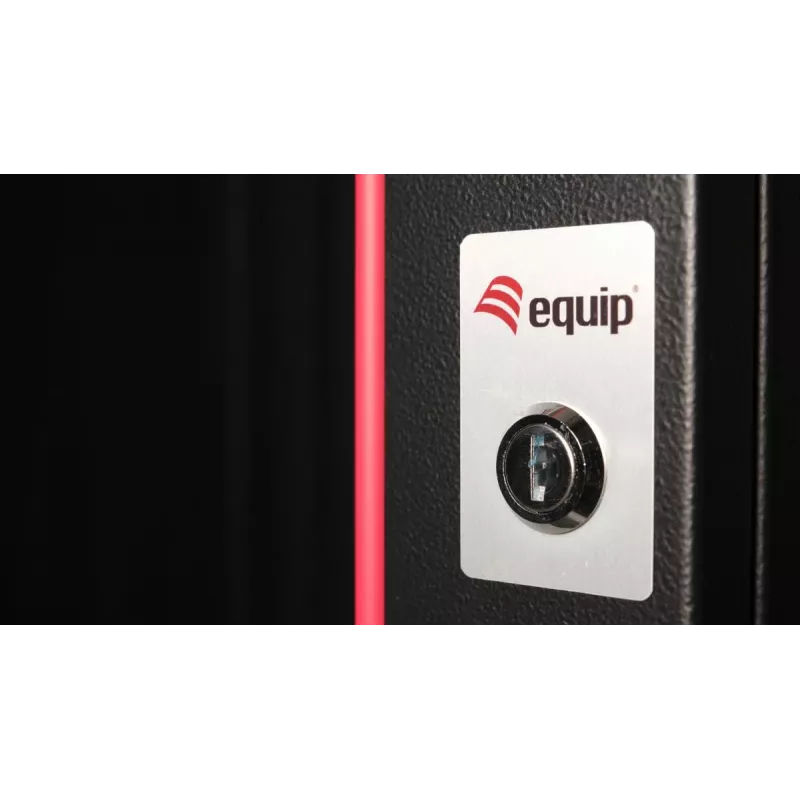

• Locking: Key lock on the door

How to use

Secure the cabinet to a suitable load-bearing wall using appropriate fixings for the substrate and the cabinet weight. Install equipment on the supplied 483 mm (19") rails, adjusting their depth as needed and using the height markings to align units. Route cables through the sliding cable entry panel on the roof or through the punched entries on the rear wall and base; use the rear frame brushes for additional protection and to reduce dust ingress. Remove side panels or change the door opening side if required for easier access during installation or maintenance.

Recommendations

For safe operation, ensure wall fixings match the surface material and load capacity, do not exceed the recommended mounting depth of 370 mm for mounted equipment, and allow clearance for ventilation. Consider adding cable management accessories and shelves from the available options to keep cabling and installed devices orderly.
