Equip supporto a parete per TV girevole ultraflat 43-90 pollici

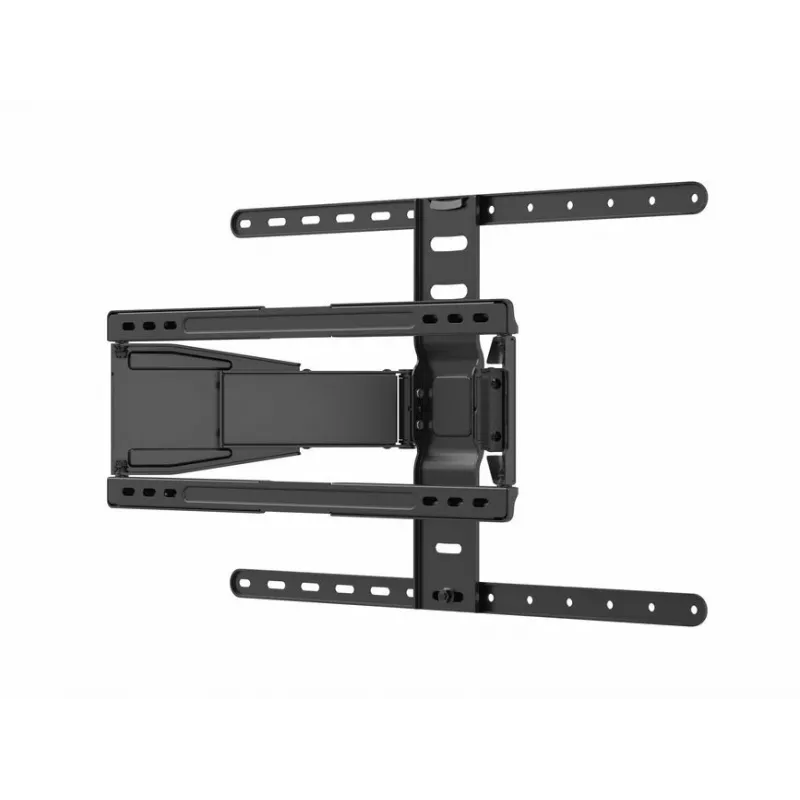

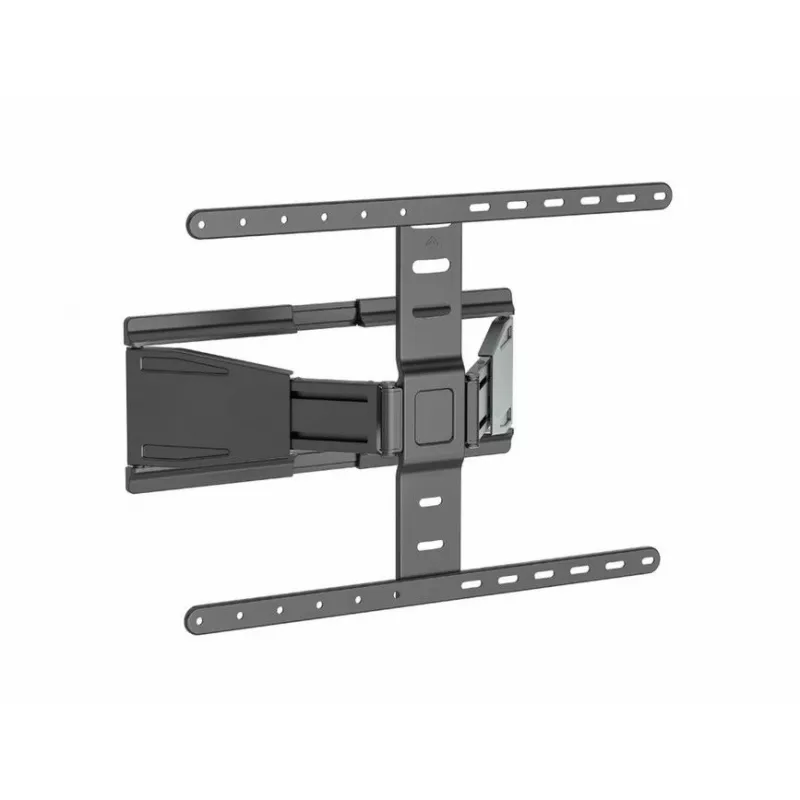

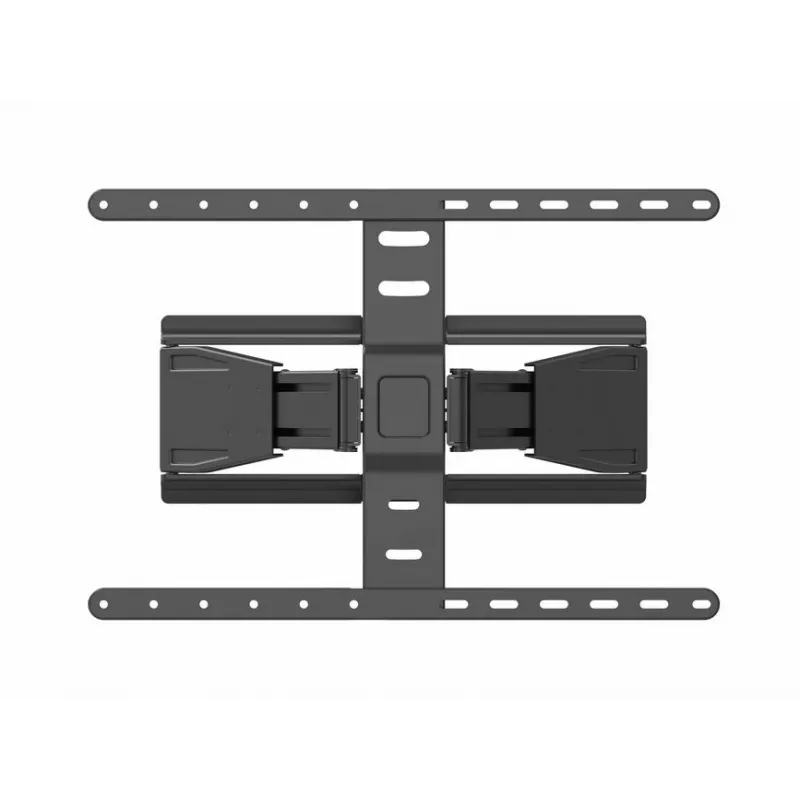

The Equip 650344 Ultra-Slim Full Motion TV Wall Mount Bracket supports flat-panel TVs from 43" to 90" and holds up to 50 kg. Designed for a low-profile installation, the bracket keeps the TV 1.95 cm from the wall when retracted and extends up to 25 cm. It is compatible with VESA patterns from 100 x 200 mm to 600 x 400 mm and offers tilt and swivel adjustment for improved viewing.

Advantages

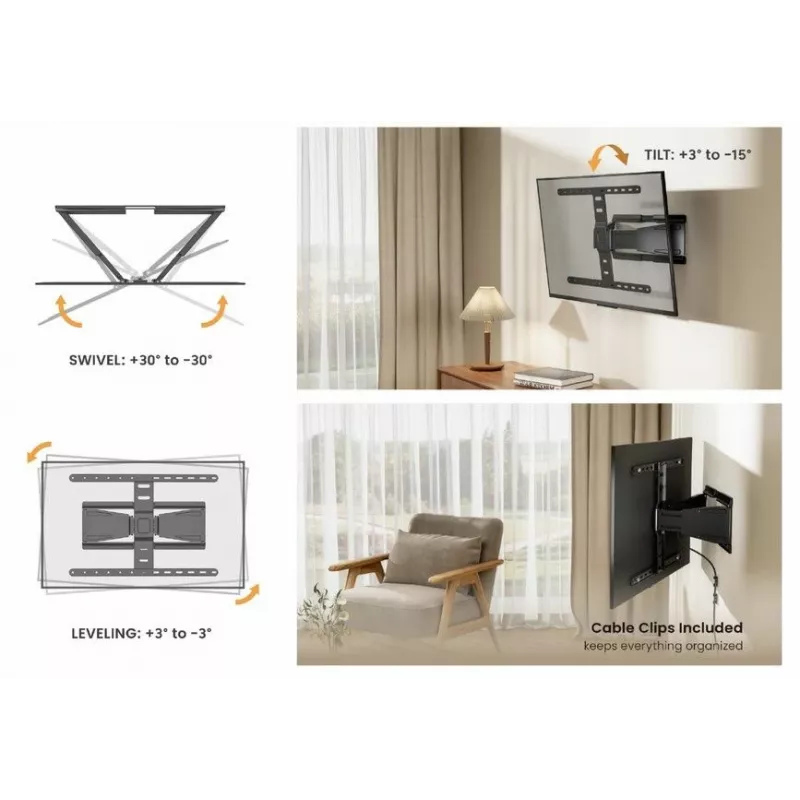

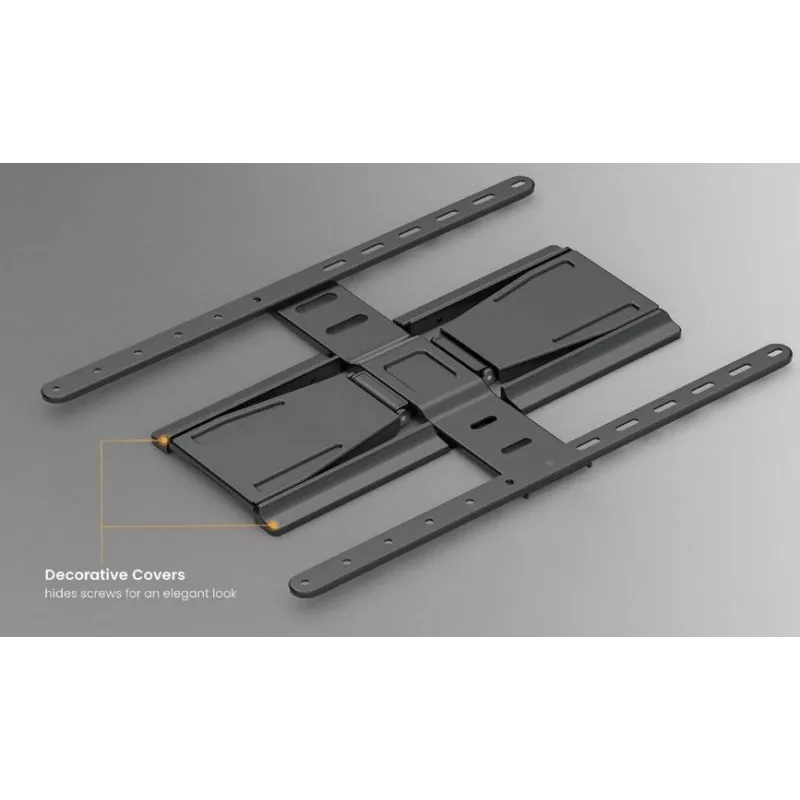

The mount combines an ultra-slim profile with full-motion functionality, allowing tilt from -15° to 3° and swivel from -30° to 30°. Constructed from high-grade materials and finished in black, it provides stable support for a single display up to 50 kg while maintaining a neat appearance close to the wall. Extension and articulation enable flexible positioning without compromising strength.

Suitable for

• Living rooms with large flat-screen TVs (43"–90")
• Bedrooms or media rooms requiring adjustable viewing angles
• Commercial spaces where wall-mounted displays need to be adjusted

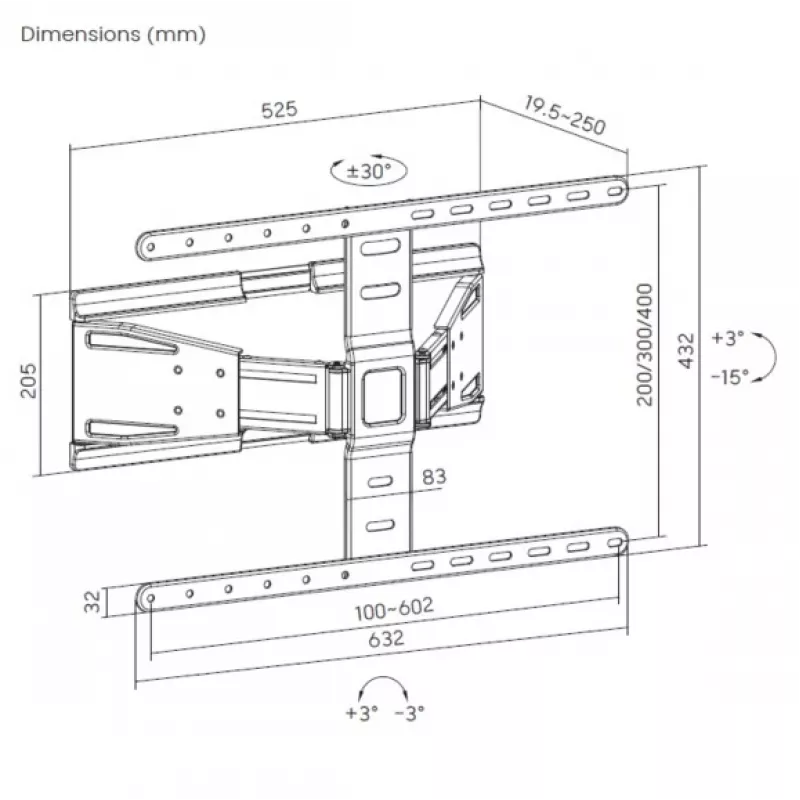

Key specifications

• Brand: EQUIP
• Model / MPN: 650344
• Supported screen sizes: 43"–90"
• Maximum weight capacity: 50 kg
• Product weight: 4.9 kg
• VESA compatibility: 100 x 200 mm up to 600 x 400 mm
• Tilt range: -15° to 3°

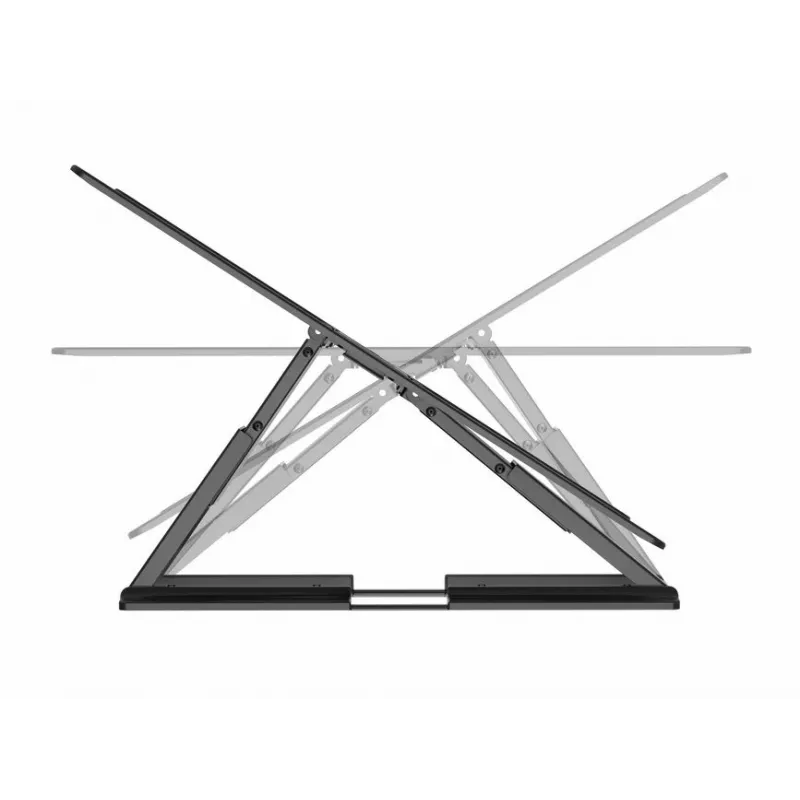

• Swivel range: -30° to 30°

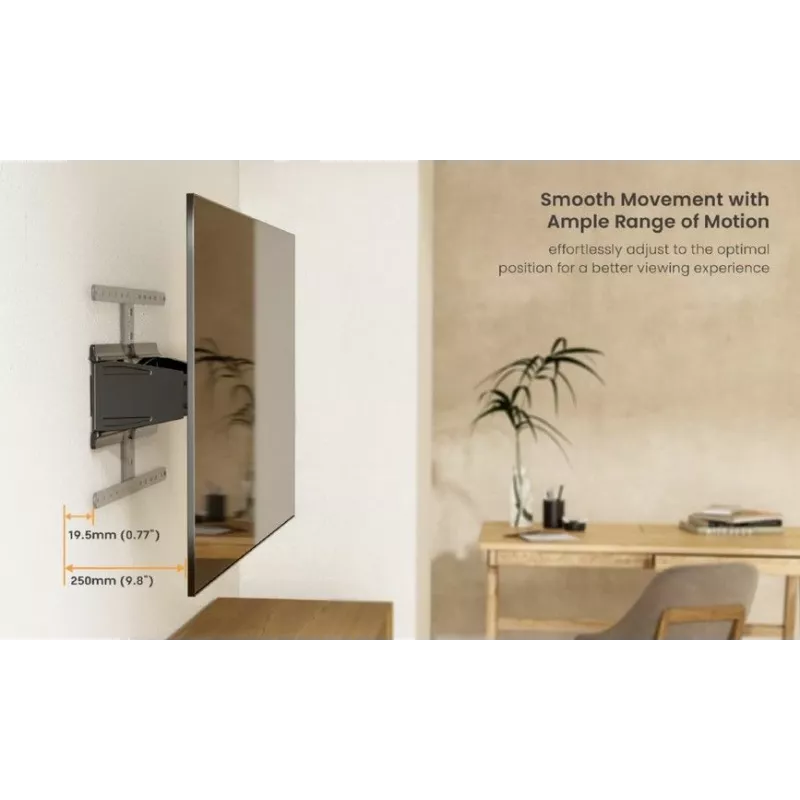

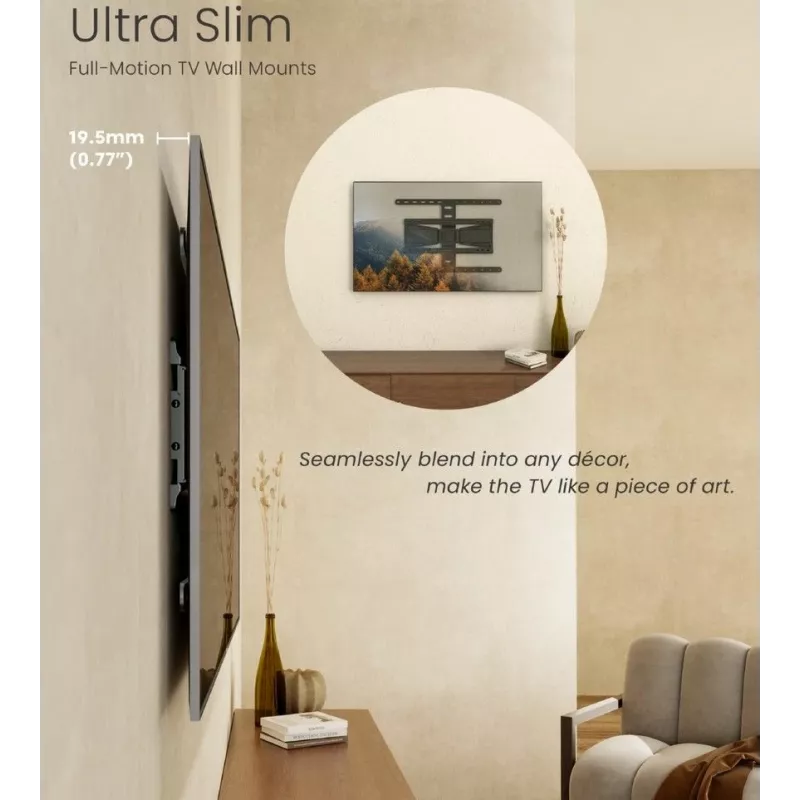

• Distance from wall (retracted): 1.95 cm
• Maximum extension: 25 cm
• Colour: Black

How to use

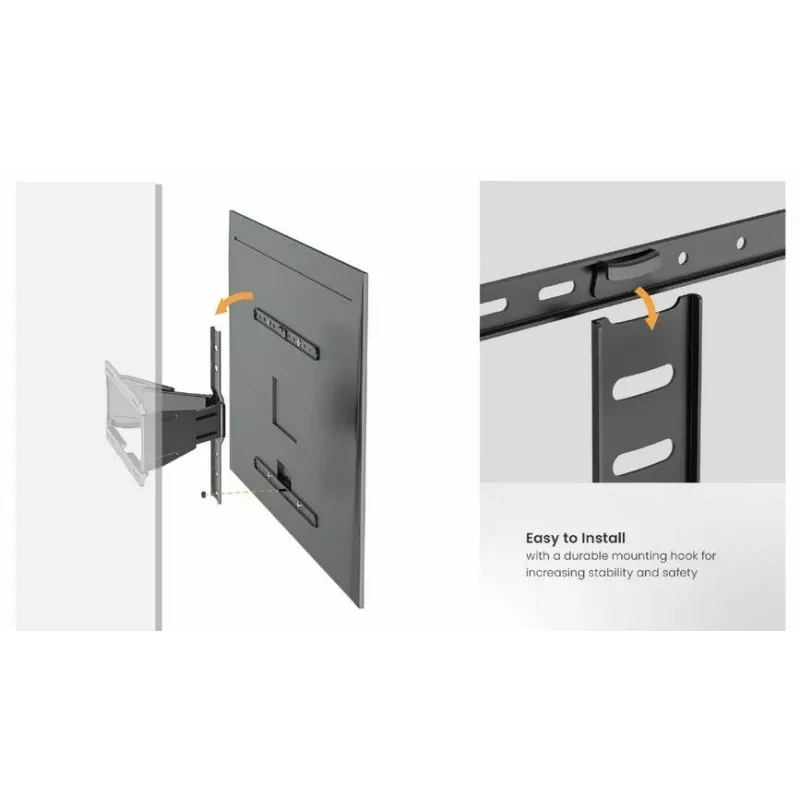

Attach the bracket to a suitable load-bearing wall following the included installation instructions and using the correct anchors for your wall type. Mount the VESA plate to the TV using compatible screws, lift the TV onto the bracket and secure it according to the assembly guide. Adjust tilt and swivel to achieve the desired viewing angle and extend or retract the arm as needed.

Recommendations

Ensure the mounting surface can bear the combined weight of the bracket and TV (up to 50 kg). Use appropriate fasteners for concrete, brick or stud walls and verify VESA compatibility before installation. If in doubt, seek professional installation to guarantee safe and secure mounting.
