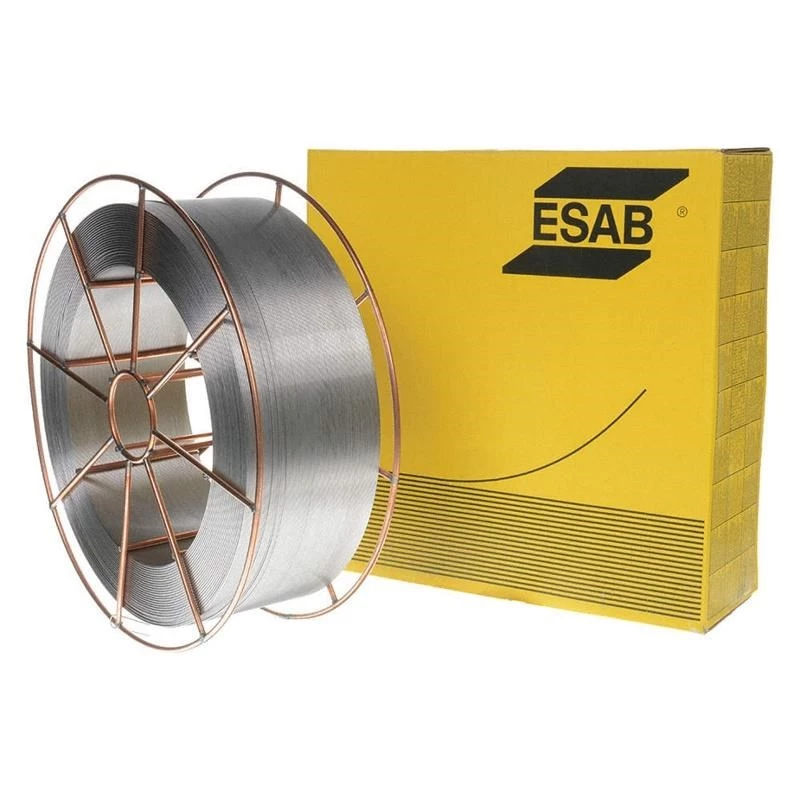

ESAB OK ARISTOROD 12.50 D0.8 5KG

The ESAB OK ARISTOROD 12.50 is a high-quality solid MIG/MAG welding wire designed for unalloyed and low-alloy steels. This 0.8 mm diameter wire on a 5 kg spool offers excellent arc stability, low spatter, and superior bead appearance, making it ideal for a wide range of welding applications.

Advantages

Excellent arc stability and low spatter ensure clean, efficient welding. Good wetting and high productivity reduce rework and increase throughput. The wire provides a smooth, consistent feed and produces high-quality welds with minimal post-weld cleaning.

Suitable for

• General fabrication and structural steel welding
• Automotive and shipbuilding industries
• Pressure vessel and pipe manufacturing
• Repair and maintenance work

Key specifications

• Wire Type: Solid MIG/MAG Welding Wire
• Material: Unalloyed and Low-Alloy Steels
• Standard Classification (AWS): AWS A5.18 ER70S-6
• Standard Classification (EN ISO): EN ISO 14341-A G 3Si1
• Wire Diameter: 0.8 mm
• Spool Weight: 5 kg
• Shielding Gas: CO2 or Ar/CO2 mixtures (e.g., Ar/CO2 80/20)
• Welding Current: DC+
• Tensile Strength (Rm): 500-640 MPa
• Yield Strength (Rp0.2): >420 MPa
• Elongation (A5): >22%
• Impact Strength (CVN): >47 J at -30°C
• Typical Chemical Composition: C 0.08%, Si 0.85%, Mn 1.45%
• Approvals: CE, TÜV, DB, ABS, LR, DNV, GL, BV, CWB
• Spool Type: S200 (D200)
• Packaging: Plastic spool, vacuum-sealed

Recommendations

For optimal results, use with CO2 or Ar/CO2 shielding gas and DC+ polarity. Store in a dry environment to prevent moisture absorption. Suitable for both manual and automated welding processes.
