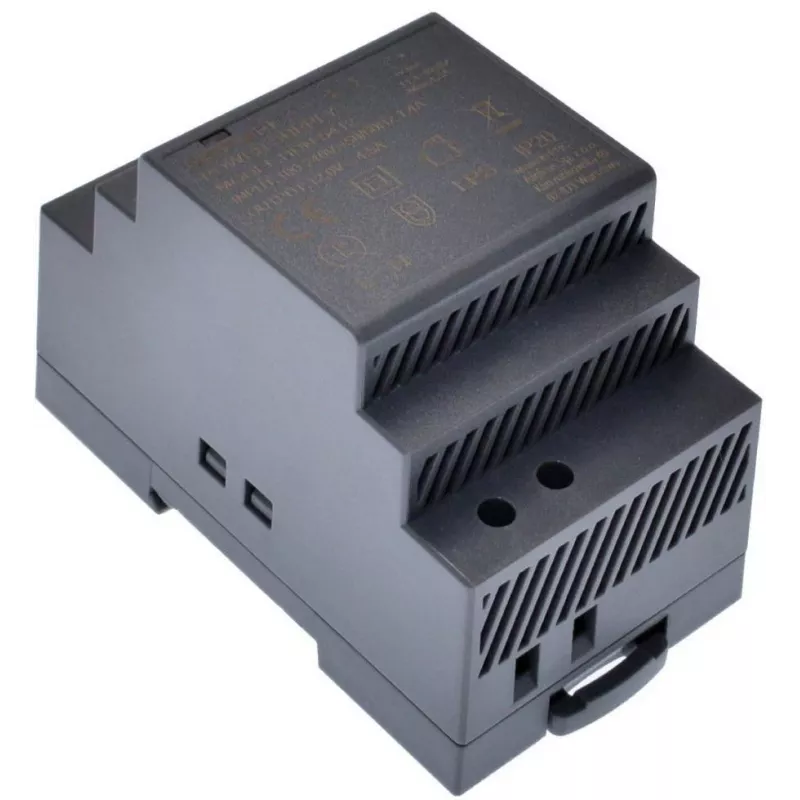

ESPE HDN-6024 alimentatore per guida DIN 24V 60W 2.5A

The ESPE HDN-6024 is a high-efficiency DIN rail power supply delivering a stable 24V DC output with 60W power and 2.5A current. Designed for industrial automation, control cabinets, and building management systems, this unit ensures reliable performance in demanding environments.

Advantages

Compact design for space-saving installation on TS-35 DIN rails. High efficiency (>87%) reduces energy loss and heat generation. Comprehensive protection features safeguard connected equipment against overload, short circuit, and overvoltage. Wide input voltage range (90-264V AC) ensures global compatibility.

Suitable for

• Industrial control systems
• PLC and automation equipment
• Security and access control systems
• Building automation (HVAC, lighting)
• Telecommunication equipment

Key specifications

• Output Voltage: 24V DC (adjustable 21.6-26.4V)
• Output Current: 2.5A
• Output Power: 60W
• Input Voltage: 90-264V AC / 120-370V DC
• Input Frequency: 47-63 Hz
• Efficiency: >87%
• Ripple & Noise: <100mVp-p
• Isolation Voltage: 3000V AC (Input to Output)
• Protection: Overload, Short Circuit, Overvoltage
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Cooling: Free Air Convection
• MTBF: >200,000 hours
• Certifications: CE, RoHS
• Housing Material: Plastic
• Power Indicator: LED

Recommendations

For optimal performance, mount the power supply on a standard DIN rail (TS-35/7.5 or TS-35/15) in a well-ventilated area. Ensure the input voltage is within the specified range and the load does not exceed 60W. Use appropriate wire gauges for input and output connections.
