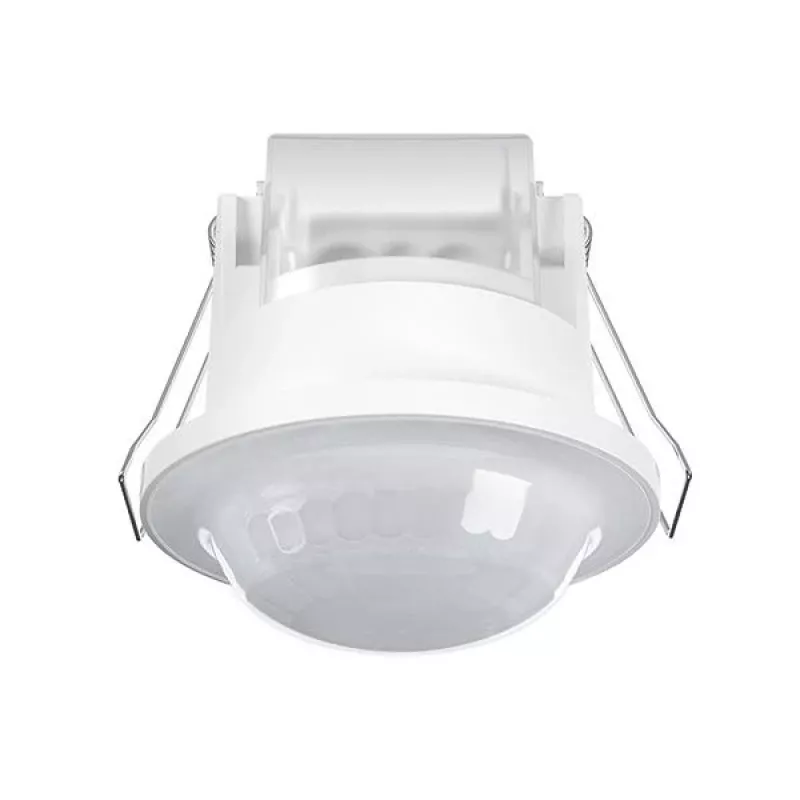

ESYLUX BASIC EXPR PD 360° 08 IR 1C FM IP23 WH rilevatore di presenza

The ESYLUX BASIC EXPR PD 360° 08 IR 1C FM IP23 WH is a high-quality passive infrared (PIR) presence detector designed for ceiling flush mounting. It provides reliable automatic lighting control in indoor environments, with a 360° detection angle and an 8-meter diameter range at 2.5 m mounting height. Ideal for offices, classrooms, corridors, and other commercial spaces, this detector combines energy efficiency with user comfort.

Advantages

Energy-saving automatic lighting control with adjustable light sensor (10-2000 Lux) and time delay (10 s - 30 min). Simple installation with flush-mount design and IP23 protection against splashing water. Compact size (visible diameter 82 mm) fits standard ceiling cutouts.

Suitable for

• Office rooms and meeting areas
• Classrooms and training facilities
• Corridors and stairwells
• Storage rooms and utility areas
• Any indoor space requiring presence-based lighting control

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m at 2.5 m mounting height
• Recommended mounting height: 2.0 - 3.0 m
• Supply voltage: 230 V AC, 50 Hz
• Power consumption: approx. 0.5 W
• Switching capacity (resistive): 2300 W
• Switching capacity (inductive, cos φ=0.5): 1150 VA
• Output: 1x relay (NO contact)
• Light sensor range: 10 - 2000 Lux (adjustable)
• Time delay: 10 s - 30 min (adjustable)
• Ingress protection: IP23
• Protection class: II
• Ambient temperature: -25 °C to +50 °C
• Colour: White
• Mounting type: Ceiling flush mount
• Visible diameter: 82 mm
• Installation depth: 60 mm
• Installation opening diameter: 68 mm

Recommendations

For optimal performance, mount at the recommended height of 2.5 m and ensure the sensor has a clear view of the area. Adjust light threshold and time delay according to room usage. Suitable for use with ESYLUX accessories and compatible lighting systems.
