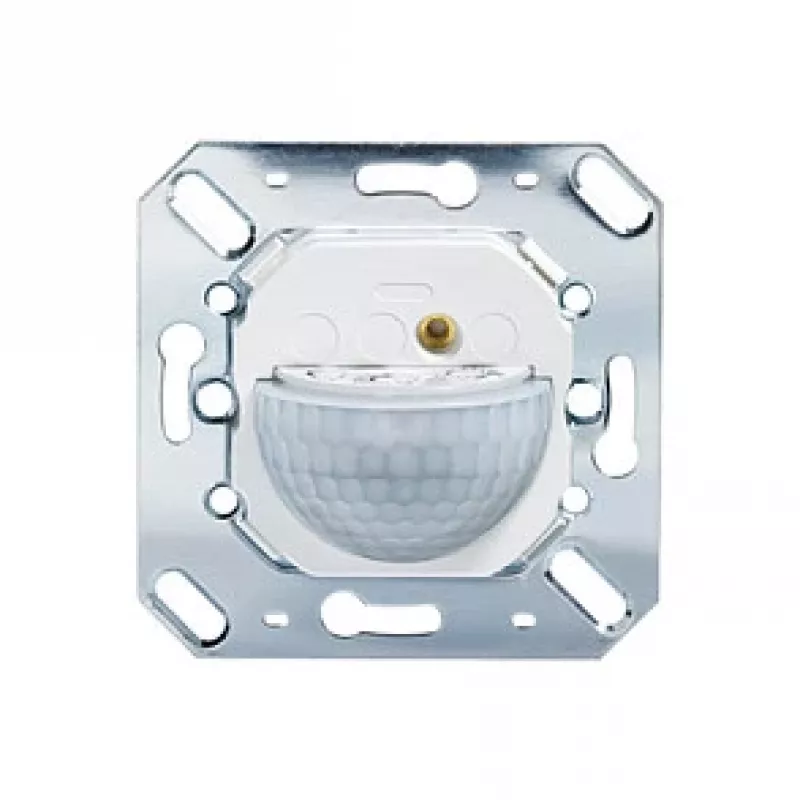

ESYLUX EM10410024 rilevatore di movimento PIR 16 m montaggio a parete bianco IP20

The ESYLUX EM10410024 is a high-quality passive infrared (PIR) motion detector designed for indoor wall mounting. With a detection range of up to 16 meters in diameter and a wide 230° detection angle, it provides reliable presence detection for residential and commercial applications. The detector is finished in white and features an IP20 rating, making it suitable for indoor use.

Advantages

Reliable PIR detection technology ensures accurate motion sensing. The wide detection angle and long range cover large areas. Adjustable time and brightness settings allow customization to specific needs. Low standby power consumption (<0.5 W) contributes to energy efficiency.

Suitable for

• Indoor corridors, hallways, and staircases
• Open-plan offices and meeting rooms
• Warehouses and storage areas
• Garages and basements

Key specifications

• Detection technology: Passive Infrared (PIR)
• Mounting type: Wall-mounted
• Detection angle: 230°
• Detection range (diameter): 16 m at 2.2 m mounting height
• Recommended mounting height: 1.1 m - 2.2 m
• IP rating: IP20
• Power supply: 230 V AC, 50/60 Hz
• Max. switching power (incandescent): 2300 W
• Max. switching power (fluorescent, uncompensated): 1150 VA
• Max. switching power (LED): 300 W
• Time setting range: 10 s - 60 min
• Brightness setting range: 5 - 2000 lux
• Housing material: Plastic
• Operating temperature: -25 °C to +50 °C
• Standby power consumption: < 0.5 W

Recommendations

For optimal performance, mount the detector at the recommended height and avoid obstructions in the detection field. Ensure the power supply is disconnected during installation.
