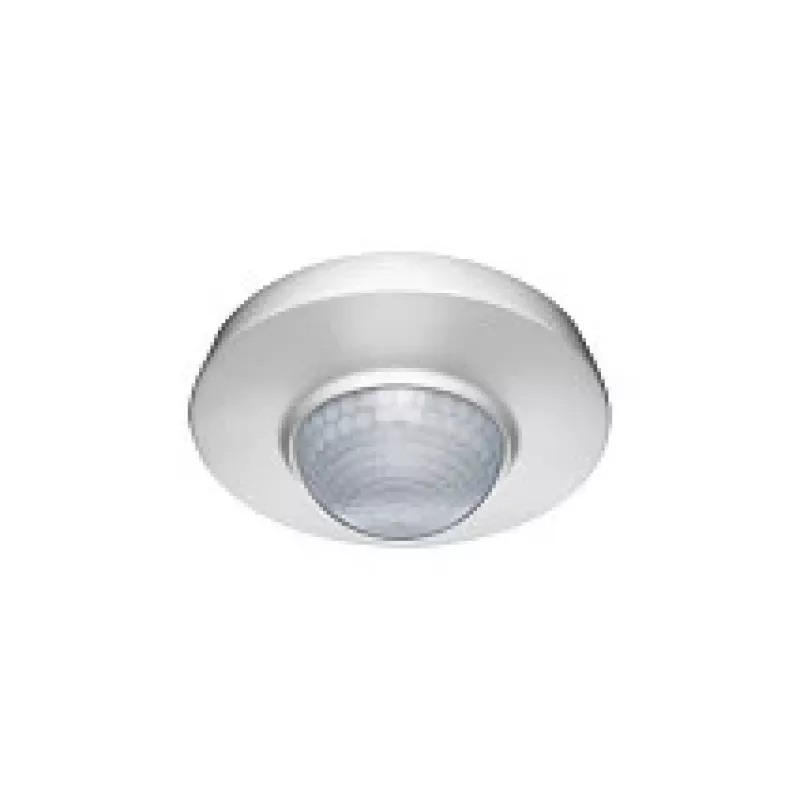

ESYLUX PD 360i/24 sensore a infrarossi passivi (PIR) - con filo - 24 m - soffitto - interno - bianco

The ESYLUX PD 360i/24 is a high-quality passive infrared (PIR) sensor designed for ceiling mounting in indoor environments. With a 360° detection angle and a diameter of up to 24 meters (at 3 m mounting height), it provides reliable presence and motion detection for lighting control in offices, corridors, and other commercial spaces. The sensor operates at 230 V AC and features a relay output (NO contact) with a switching capacity of 2300 W (resistive load). Its adjustable time delay (10 seconds to 60 minutes) and light sensor range (10-2000 lux) allow flexible configuration. The device is wired and comes in a sleek white finish (RAL 9010).

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Easy installation on standard ceiling boxes. Robust design with IP20 protection suitable for indoor use. Standby power consumption of only approx. 0.5 W.

Suitable for

• Office buildings
• Conference rooms
• Corridors and hallways
• Stairwells
• Storage rooms

Key specifications

• Sensor technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 24 m (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Recommended mounting height: 2.5 - 3.5 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive load): 2300 W
• Max. switching current: 10 A
• Light sensor range: 10 - 2000 Lux
• Time delay setting: 10 seconds - 60 minutes
• Protection class: IP20
• Colour: White (RAL 9010)
• Application area: Indoor
• Connection type: Wired
• Power consumption (standby): approx. 0.5 W
• Operating temperature: -25 °C to +50 °C
• Output type: Relay (NO contact)

Recommendations

For optimal performance, mount the sensor at a height of 2.5 to 3.5 meters and ensure the detection area is free from obstructions. Pair with compatible lighting loads for seamless automation.
